TRANSFER VACUUM PIPING

0001 1 0002 1

36409SUPPORT SUB-ASSY, VACUUM TUBE UNION

main36409-60040iHJ60198510-198708

main36409-60050iBJ60198411-198510

36409AHOSE (FOR VACUUM TUBE)

main90445-08215iBJ60198411-198510

main95411-19960iHJ60198510-198708

L=600

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main95441-09200×2iBJ60,HJ60..5F198411-198708

L=200

main95441-09340×2iHJ60..4FC198510-198708

L=340

36409DHOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

main95411-19930×2iBJ60198411-198510

*H,L=300,MARK=#*

36409EHOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

main95411-19930×2iHJ60198510-198708

*H,L=200,MARK=#*

main95411-19960×2iBJ60198411-198510

*H,L=480,MARK=#*

36409FWAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)

main90413-04005×2iBJ60,HJ60198411-198708

36409GHOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)

main95411-19930iBJ60,HJ60198411-198708

*H,L=40,MARK=#*,W/COOLER

36409HHOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)

main95411-19930×2iBJ60,HJ60198411-198708

*H,L=50,MARK=#*

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-60100iHJ60198510-198708

main36482-60110iBJ60198411-198510

9046400102

main90464-00102

9046400151

main90464-00151

9613231000

main96132-31000

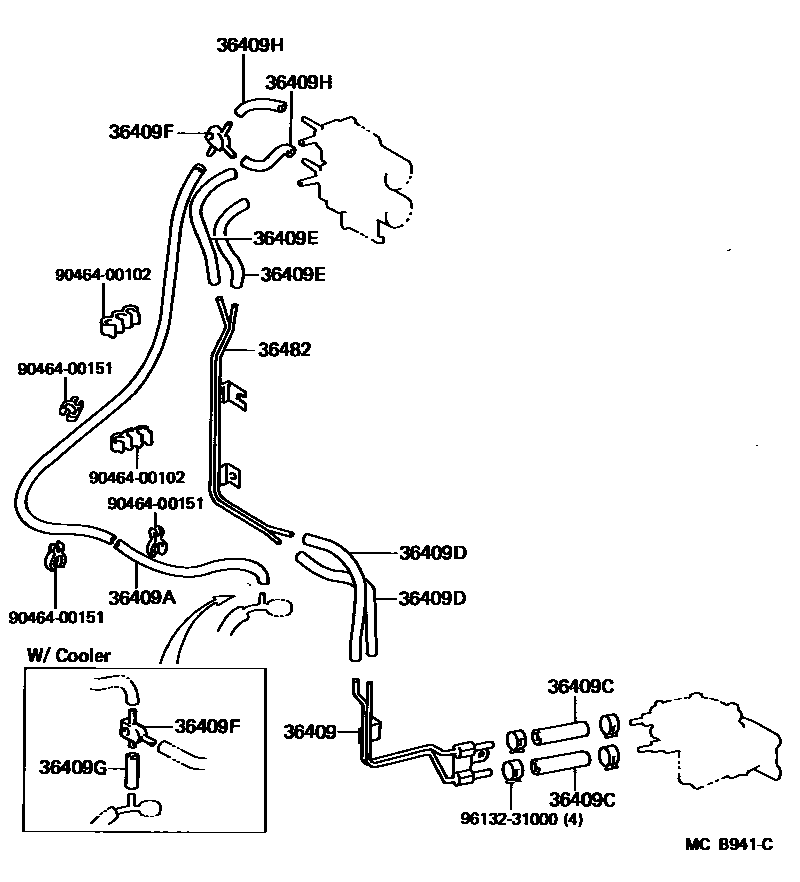

12 parts on this diagram · 2 diagrams in section
