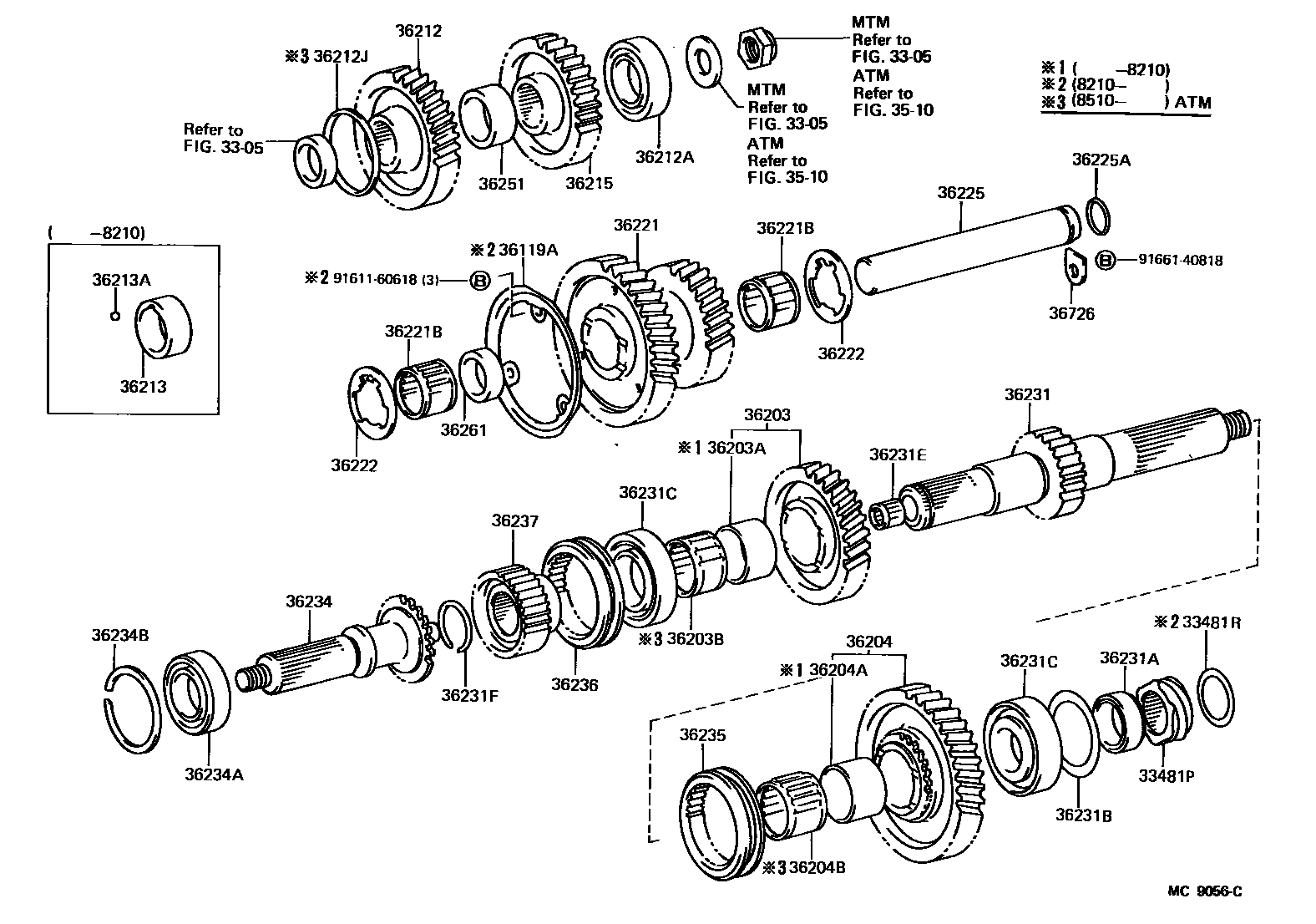

TRANSFER GEAR
3305TRANSMISSION GEAR (MTM)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,MARK 6:18
N=6,MARK 6:15-17
33481RWASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)
3510PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36203ABUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36203BBEARING (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36204ABUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36204BBEARING (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36212GEAR, TRANSFER INPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212JRING, O (FOR TRANSFER INPUT GEAR)
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36215GEAR, POWER TAKE-OFF DRIVE
36221GEAR, TRANSFER IDLER
36221BBEARING (FOR TRANSFER IDLER GEAR)
36222WASHER, TRANSFER IDLER GEAR SIDE THRUST
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=17.5
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.15,T=0.15
T=0.40,T=0.4
T=0.50,T=0.5
T=0.60,T=0.6
T=0.70,T=0.7
T=0.80,T=0.8
T=0.90,T=0.9
T=1.00,T=1.0
T=1.10,T=1.1
T=1.20,T=1.2
T=1.30,T=1.3
T=1.40,T=1.4
T=1.50,T=1.5
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FR
RR
RR
RR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.30-2.35,MARK 11,T=2.3
T=2.6-2.65,MARK 17,T=2.6
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.6
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
36261SPACER, TRANSFER IDLER GEAR
36726PLATE, LOCK (FOR TRANSFER GEAR)
9161160618
main91611-60618
9166140818
main91661-40818
39 parts on this diagram · 1 diagram in section
