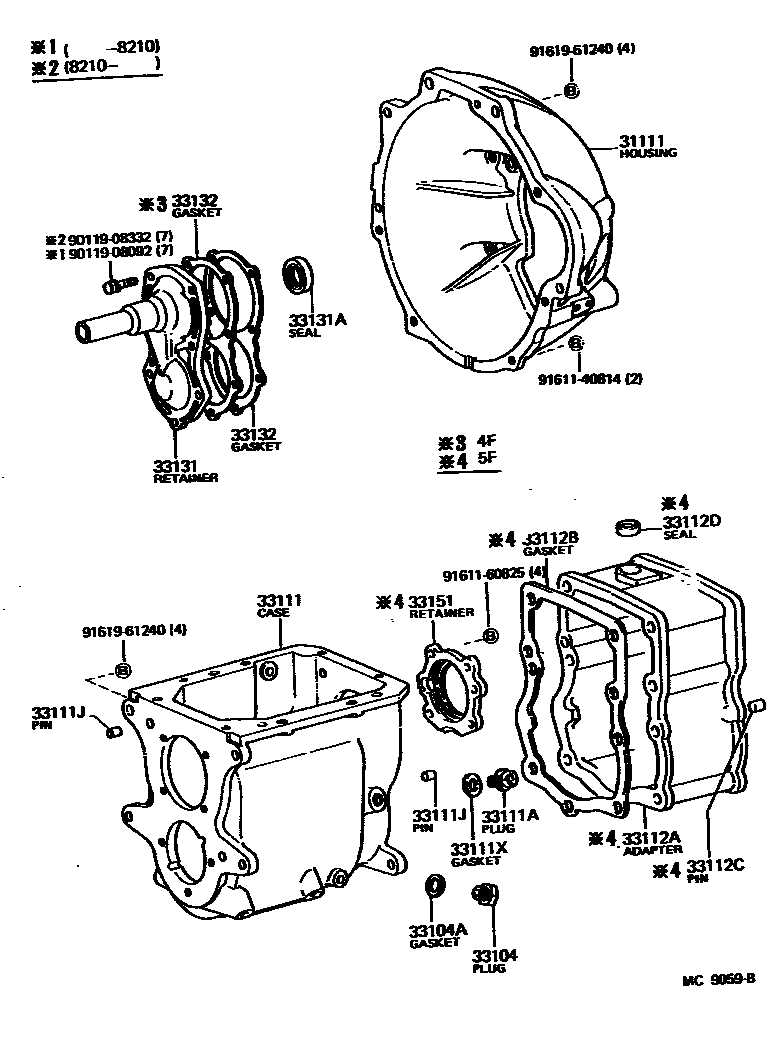

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
W/TACHOMETER
W/TACHOMETER
W/TACHOMETER
W/TACHOMETER
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=14,OD=10,L=14,OD=10
L=17,OD=12,L=17,OD=12
L=14,OD=12,L=14,OD=12
33111XGASKET, TRANSMISSION CASE PLUG
33112AADAPTER, TRANSFER
33112BGASKET, TRANSFER ADAPTER
33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)
33112DSEAL, OIL(FOR TRANSFER ADAPTER)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908092
main90119-08092
9011908332
main90119-08332
9161140814
main91611-40814
9161160825
main91611-60825
9161961240
main91619-61240
20 parts on this diagram · 3 diagrams in section
