TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

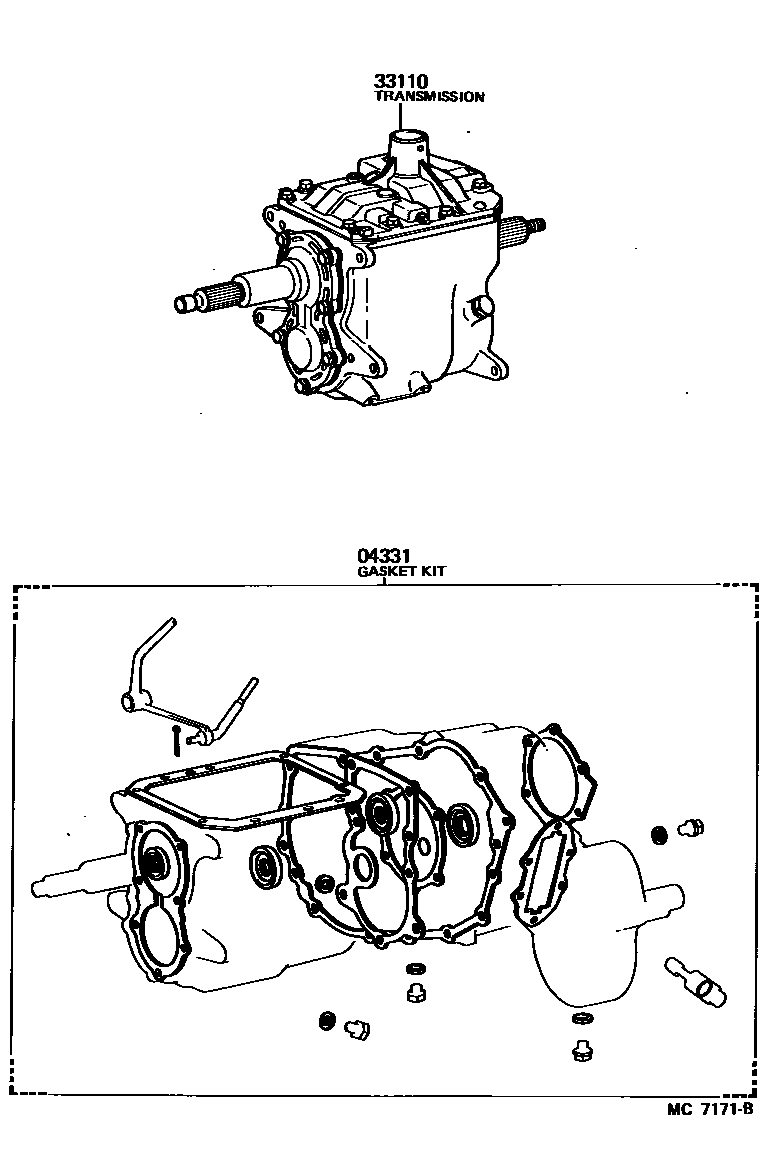

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60040i198008-198210

main04331-60041i198210-198604

main04331-60060i198210-198411

main04331-60071i198604-198608

main04331-60080i198411-198510

main04331-60081i198510-198608

main04331-60140i198608-198708

main04331-60160i198608-198708

33110TRANSMISSION ASSY, MANUAL

main33020-60901i198008-198201

main33030-60171i198008-198208

main33030-60172i198208-198504

main33030-60300i198504-198604

main33030-60310i198201-198210

main33030-60410i198210-198411

main33030-60450i198510-198708

main33030-60620i198411-198510

main33030-60670i198604-198708

2 parts on this diagram · 2 diagrams in section
