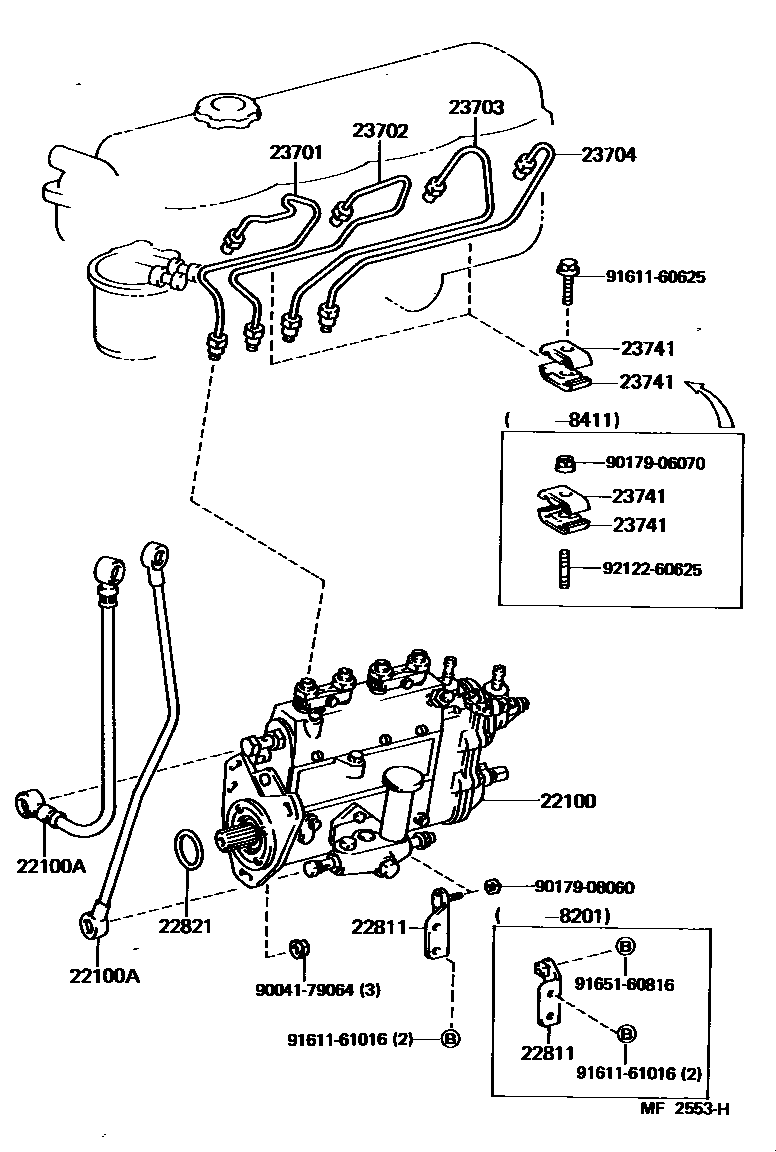

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-58020i3B..BJ60198008-198201

main22100-58021i3B..BJ60198201-198411

main22100-58022i3B..BJ60198411-198510

main22100-68051i2H..HJ60..5F198510-198708

main22100-68130i2H..HJ60..4FC198510-198708

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56040i3B..BJ60198008-198409

FEED PUMP TO FILTER

main23801-56060i3B..BJ60198409-198510

PIPE L=300,FEED PUMP TO FILTER

main23801-68030i2H..HJ60198510-198708

PIPE L=336,FEED PUMP TO FILTER

main23802-56040i3B..BJ60198008-198510

HOSE L=210,FILTER TO INJECTION PUMP

main23802-68020i2H..HJ60198510-198708

PIPE L=216,FILTER TO PUMP

22811STAY, INJECTION PUMP, NO.1

main22811-56010i3B..BJ60198008-198201

main22811-56011i3B..BJ60198201-198510

main22811-68010i2H..HJ60198510-198708

22821GASKET, INJECTION PUMP

main90301-77001i3B..BJ60198008-198510

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030i3B..BJ60198008-198510

main23701-68010i2H..HJ60198510-198708

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030i3B..BJ60198008-198510

main23702-68010i2H..HJ60198510-198708

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020i3B..BJ60198008-198510

main23703-68010i2H..HJ60198510-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020i3B..BJ60198008-198510

main23704-68010i2H..HJ60198510-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-48010×10i2H..HJ60198510-198708

main23741-56010×4i3B..BJ60198008-198510

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

9165160816

main91651-60816

9212260625

main92122-60625

16 parts on this diagram · 2 diagrams in section
