1708VACUUM PIPING

→ Go to FIG 17-08

17309AVALVE, CHECK

main90917-10057i198008-198708

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-61021i198008-198708

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-31001i198008-198708

AIR PUMP SIDE

main96111-10360i198608-198708

CLEANER SIDE

main96111-10380i198010-198608

CLEANER SIDE

main96112-10380i198008-198010

CLEANER SIDE

17341CINSULATOR, AIR INJECTION HOSE

main17881-34040i198008-198708

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-61030i198008-198708

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-28003×2i198008-198708

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-61020i198008-198708

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-28003×2i198008-198708

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-61011i198008-198708

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-28003×2i198008-198708

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main17345-61020i198008-198708

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main90467-28001×2i198008-198708

17346HOSE, NO.6(FOR AIR INJECTION SYSTEM)

main17346-61020i198008-198708

17346ACLAMP OR CLIP, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6)

main90467-28001×2i198008-198708

17351MANIFOLD, AIR INJECTION

main17306-61021i198008-198708

17351AUNION, AIR INJECTION

main90404-14329×6i198008-198708

17361TUBE, AIR

main17361-61020i198008-198708

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10057i198008-198708

25710VALVE ASSY, AIR SWITCHING

main25710-61021i198008-198708

25716BRACKET, AIR SWITCHING VALVE

main25716-61011i198008-198708

9011908063

main90119-08063

9017908146

main90179-08146

9046400063

main90464-00063

9165140814

main91651-40814

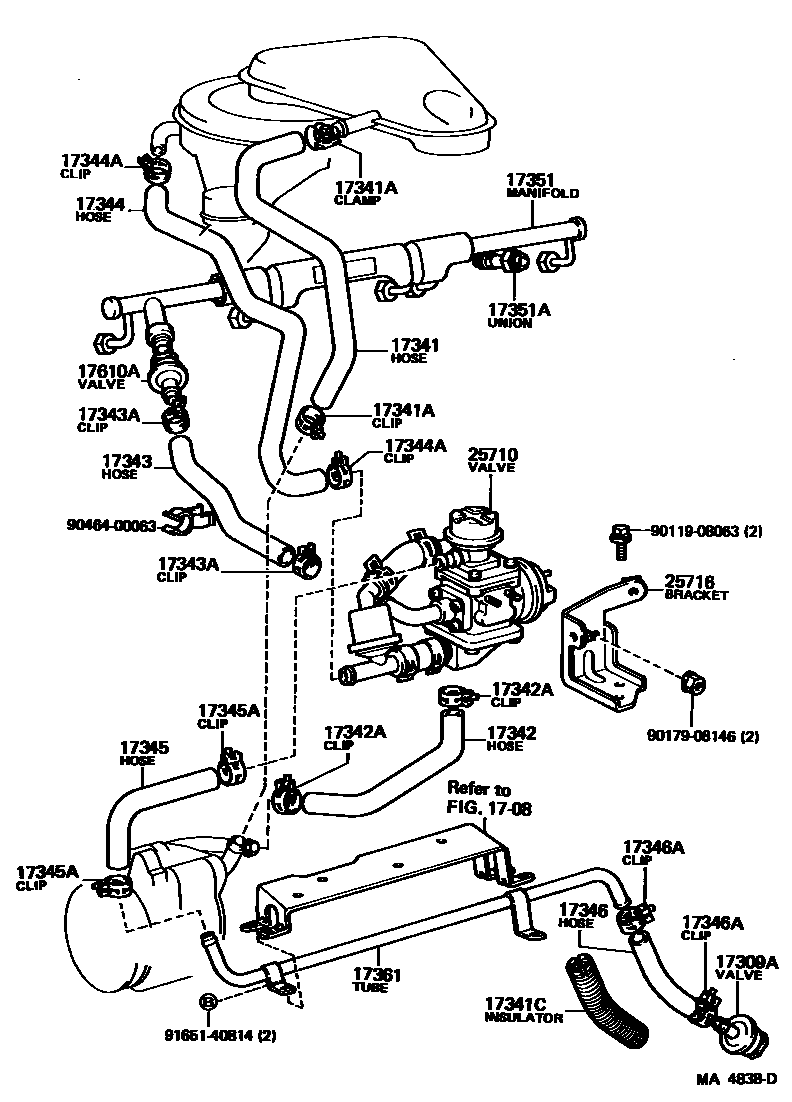

MANIFOLD AIR INJECTION SYSTEM
