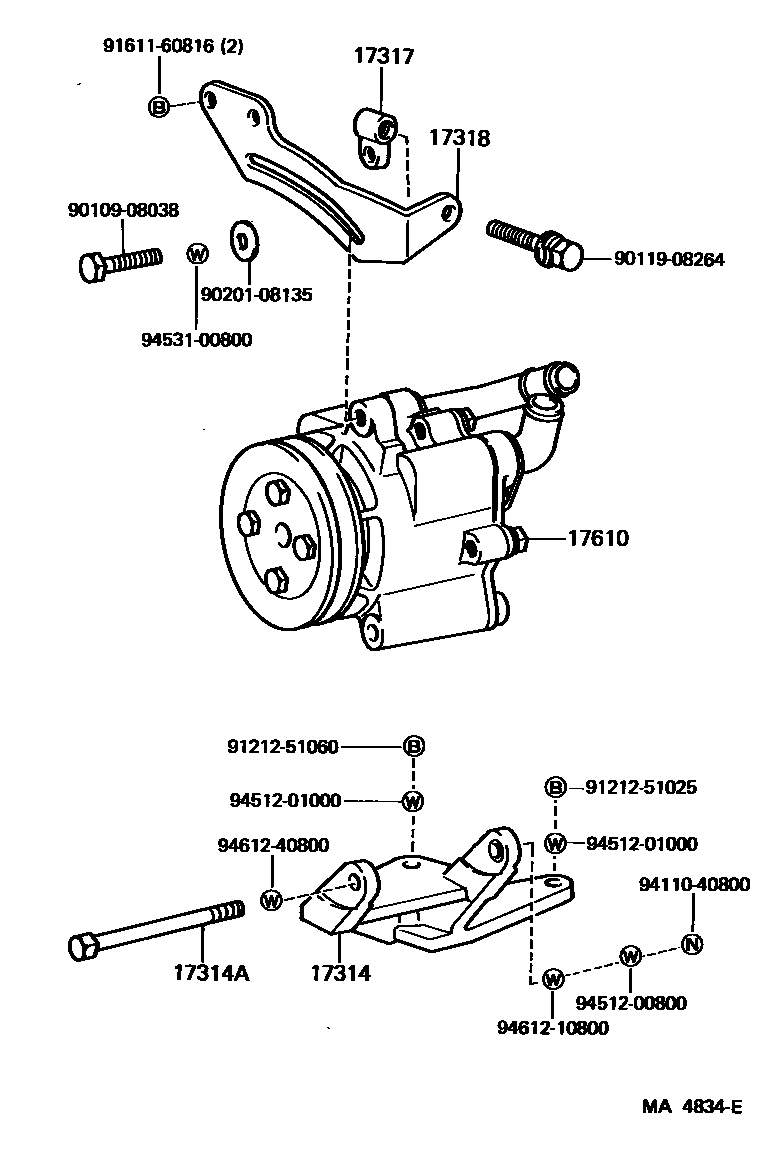

Toyota LAND CRUISER — AIR PUMP
17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
17317BAR, AIR PUMP ADJUSTING, NO.1
17318BAR, AIR PUMP ADJUSTING, NO.2
17610PUMP ASSY, AIR
9010908038
9011908264
9020108135
9121251025
9121251060
9161160816
9411040800
9451200800
9451201000
9453100800
9461210800
9461240800
17 parts on this diagram · 1 diagram in section
AIR PUMP for Toyota LAND CRUISER
This section contains 17 genuine Toyota parts for the AIR PUMP system of the Toyota LAND CRUISER. Key components include: BRACKET, AIR PUMP, BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING), BAR, AIR PUMP ADJUSTING, NO.1, BAR, AIR PUMP ADJUSTING, NO.2, PUMP ASSY, AIR.
