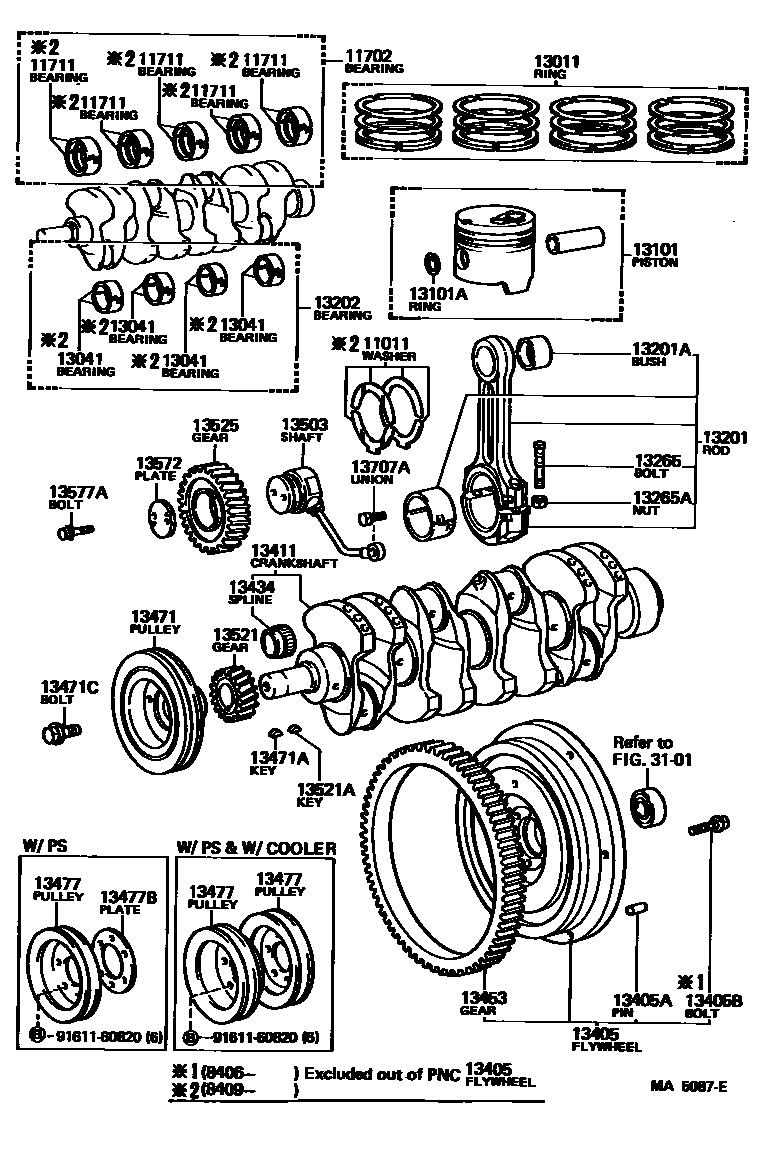

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD,STD
STD,STD
STD,STD
STD,STD
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.125,O/S 0.125
O/S 0.250,O/S 0.250
O/S 0.250,O/S 0.250
O/S 0.250,O/S 0.250
O/S 0.250,O/S 0.250
11702BEARING SET, CRANKSHAFT
STD,STD
STD
U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.75,U/S 0.75
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
11711BEARING, CRANKSHAFT
NO.2,MARK"1",MARK 1
NO.2,MARK"2",MARK 2
NO.2,MARK"3",MARK 3
NO.2,MARK"4",MARK 4
NO.2,MARK"5",MARK 5
NO.2,MARK"1",MARK 1
NO.2,MARK"2",MARK 2
NO.2,MARK"3",MARK 3
NO.3,MARK"1",MARK 1
NO.3,MARK"2",MARK 2
NO.3,MARK"3",MARK 3
NO.3,MARK"4",MARK 4
NO.3,MARK"5",MARK 5
NO.4,MARK"1",MARK 1
NO.4,MARK"2",MARK 2
NO.4,MARK"3",MARK 3
NO.4,MARK"4",MARK 4
NO.4,MARK"5",MARK 5
MARK"1",MARK 1
MARK"2",MARK 2
NO.1,MARK"1",MARK 1
NO.1,MARK"2",MARK 2
NO.1,MARK"3",MARK 3
NO.1,MARK"4",MARK 4
NO.1,MARK"5",MARK 5
NO.1,MARK"1",MARK 1
NO.1,MARK"2",MARK 2
NO.1,MARK"3",MARK 3
13011RING SET, PISTON
STD,STD
STD,STD
STD,STD
STD,STD
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
O/S 1.50,O/S 1.50
13041BEARING, CONNECTING ROD
MARK"1",MARK 1
MARK"2",MARK 2
MARK"1",MARK 1
MARK"2",MARK 2
13101PISTON SUB-ASSY, W/PIN
STD,STD
STD,STD
STD,STD
STD,STD
O/S 0.50,O/S 0.50
O/S 0.50,O/S 0.50
O/S 1.00,O/S 1.00
O/S 1.50,O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD,STD
STD,STD
U/S 0.05,U/S 0.05
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.25,U/S 0.25
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.50,U/S 0.50
U/S 0.75,U/S 0.75
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
U/S 1.00,U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
*13-1.5PX30-20
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
N=108
N=110
13471PULLEY, CRANKSHAFT
OD=155
W/PS,OD=155
W/COOLER & PS,OD=155&227
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
NO.2,W/PS
NO.1,W/COOLER
W/COOLER
13477BPLATE, CRANKSHAFT PULLEY, NO.2
W/PS
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=51
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
3101CLUTCH & RELEASE FORK
9161160820
main91611-60820
32 parts on this diagram · 4 diagrams in section
