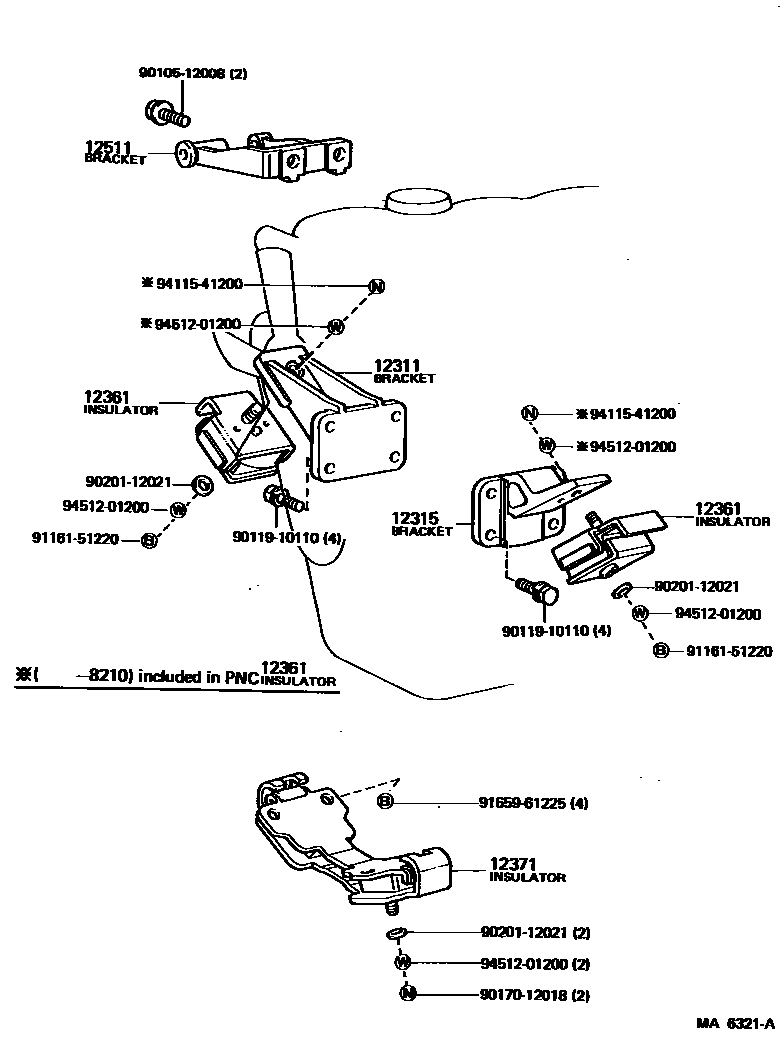

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-61012i2F..FJ60..USA198008-198312

W/COOLER

main12301-61013i2F..FJ60198312-198411

W/COOLER

main12301-61014i2F..FJ60198411-198708

W/COOLER

main12301-68010i2H..HJ60198510-198708

main12311-56020i3B..BJ60198008-198411

main12311-58031i3B..BJ60198411-198510

main12311-61011i2F..FJ60198008-198312

main12311-61012i2F..FJ60198312-198411

main12311-61070i2F..FJ60198411-198604

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-56010i3B..BJ60198008-198205

main12315-56011i3B..BJ60198205-198411

main12315-58020i3B..BJ60198411-198510

main12315-61011i2F..FJ60198008-198312

main12315-61012i2F..FJ60198312-198411

main12315-61013i2F..FJ60198411-198708

main12315-68040i2H..HJ60198510-198708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-56031×2i3B..BJ60198210-198411

main12361-58030×2i3B..BJ60198411-198510

main12361-59035×2i3B..BJ60198008-198210

main12361-61020×2i2F..FJ60198008-198708

main12361-68051×2i2H..HJ60198510-198708

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-58010i3B..BJ60198008-198411

main12371-58020i3B..BJ60198411-198510

main12371-61020i2F..FJ60198008-198411

main12371-61030i2F..FJ60198411-198708

main12371-68040i2H..HJ60..5F198510-198708

main12371-68050i2H..HJ60..4FC198510-198708

12511BRACKET, ALTERNATOR, NO.1

main12511-56030i3B..BJ60198008-198202

main12511-56031i3B..BJ60198202-198409

main12511-56040i3B..BJ60198409-198510

main12511-60081i2F..FJ60..CND198008-198110

main12511-61021i2F..FJ60..USA198008-198708

main12511-68030i2H..HJ60198510-198708

9010512008

main90105-12008

9011910110

main90119-10110

9017012018

main90170-12018

9020112021

main90201-12021

9116151220

main91161-51220

9165961225

main91659-61225

9411541200

main94115-41200

9451201200

main94512-01200

13 parts on this diagram · 5 diagrams in section
