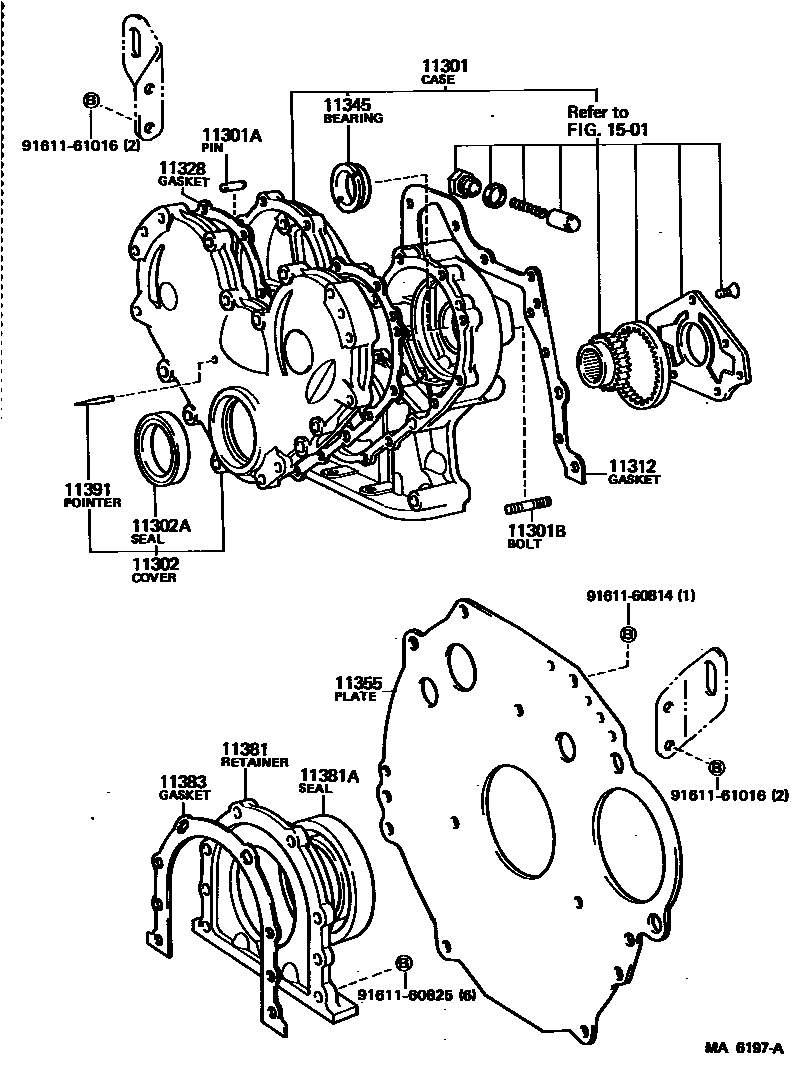

TIMING GEAR COVER & REAR END PLATE
11301CASE SUB-ASSY, TIMING GEAR
11301APIN, STRAIGHT(FOR TIMING GEAR CASE)
L=18,OD=8,L=18,OD=8
11301BBOLT,STUD(FOR TIMING GEAR CASE)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
11312GASKET, FRONT END PLATE
11328GASKET, TIMING GEAR OR CHAIN COVER
11345BEARING, INJECTION PUMP GEAR THRUST
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
1501ENGINE OIL PUMP
9161160814
main91611-60814
9161160825
main91611-60825
9161161016
main91611-61016
17 parts on this diagram · 4 diagrams in section
