SHORT BLOCK ASSEMBLY

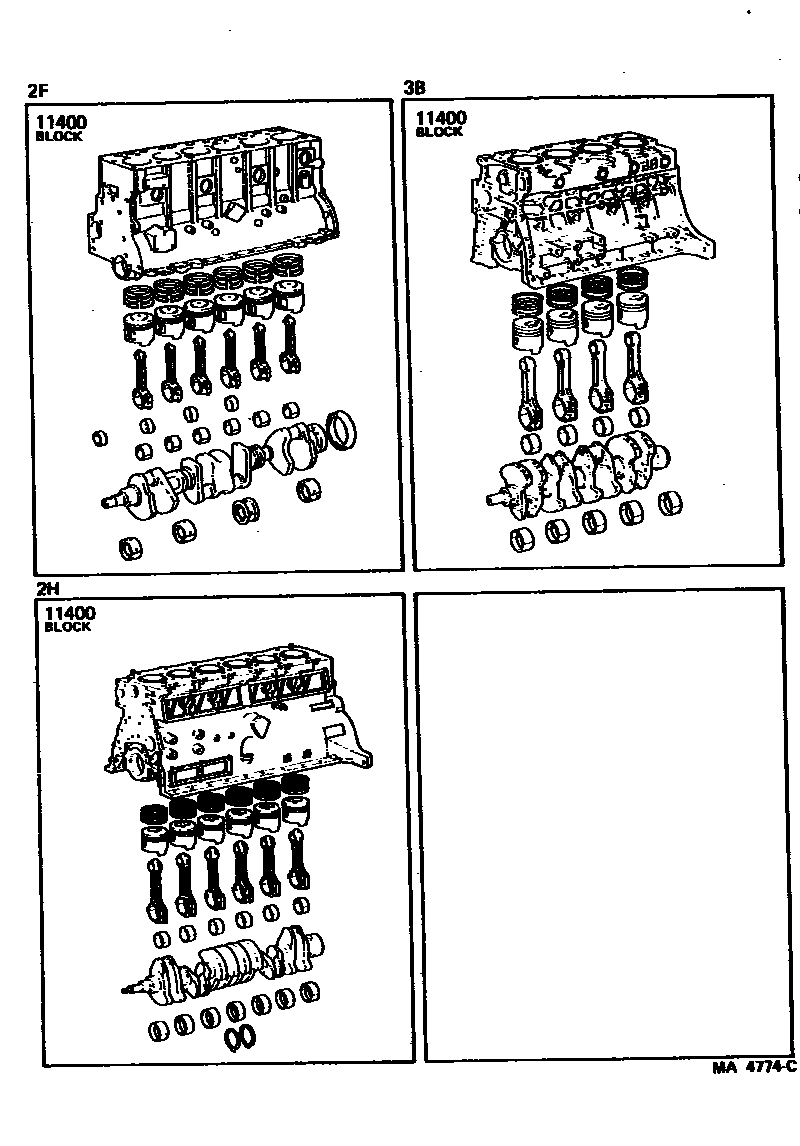

Parts diagram

11400BLOCK ASSY, SHORT

main11400-58010i198008-198201

main11400-58011i198201-198209

main11400-58012i198209-198408

main11400-58040i198408-198510

main11400-61011i198008-198510

main11400-61060i198510-198708

main11400-68020i198510-198708

1 parts on this diagram · 1 diagram in section
