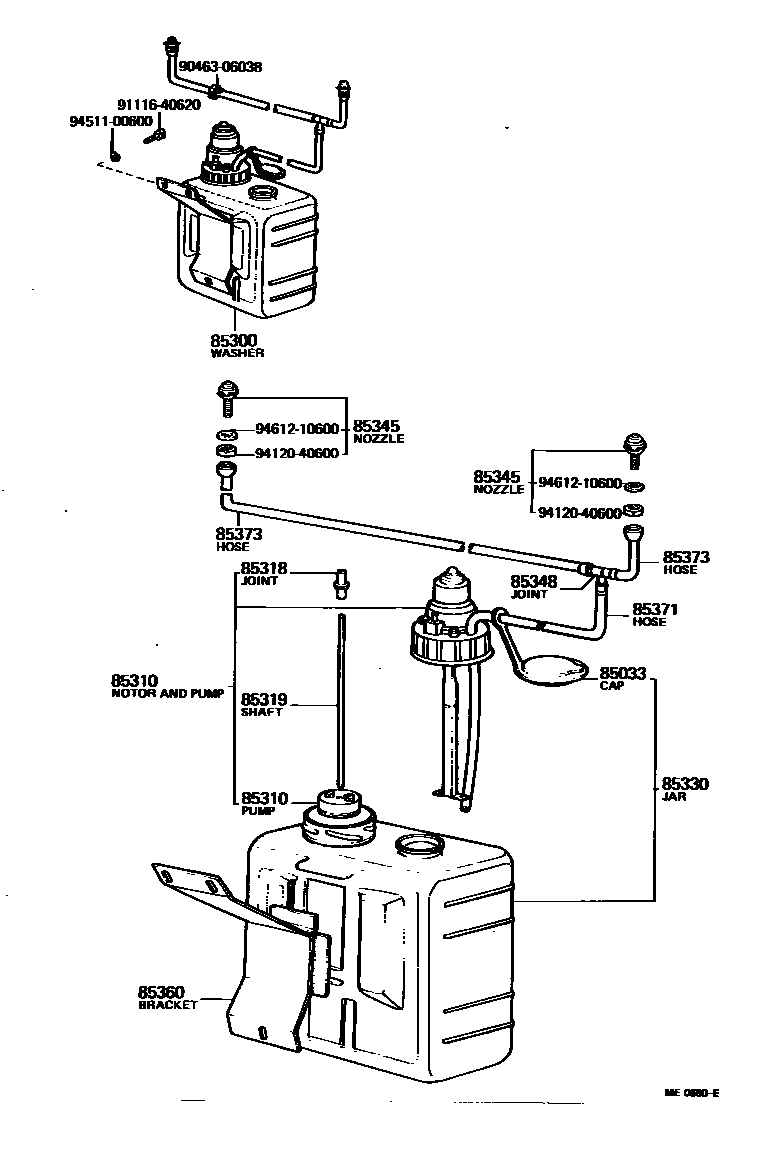

WINDSHIELD WASHER
85033CAP ASSY, WINDSHIELD WASHER
85300WASHER ASSY, WINDSHIELD
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
PUMP ONLY
W/MOTOR
85318JOINT, WINDSHIELD WASHER MOTOR
85319SHAFT, WINDSHIELD WASHER PUMP
85330JAR ASSY, WINDSHIELD WASHER
85345NOZZLE, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3 WAY
L=42
L=40
85360BRACKET ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=2000(*H,L=1050)
L=310
L=1300
L=1000(*H,L=230)
L=1100
L=1000(*H,L=100)
L=740(*H,L=100)
L=740(*H,L=300)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=640
L=40
L=400
L=200
L=2000,L=2000
L=1800(*H,L=1000)
L=1000(*H,L=150)
L=1000(*H,L=500)
L=1100
L=1000(*H,L=100)
9046306038
main90463-06038
9111640620
main91116-40620
9412040600
main94120-40600
9451100600
main94511-00600
9461210600
main94612-10600
16 parts on this diagram · 7 diagrams in section
