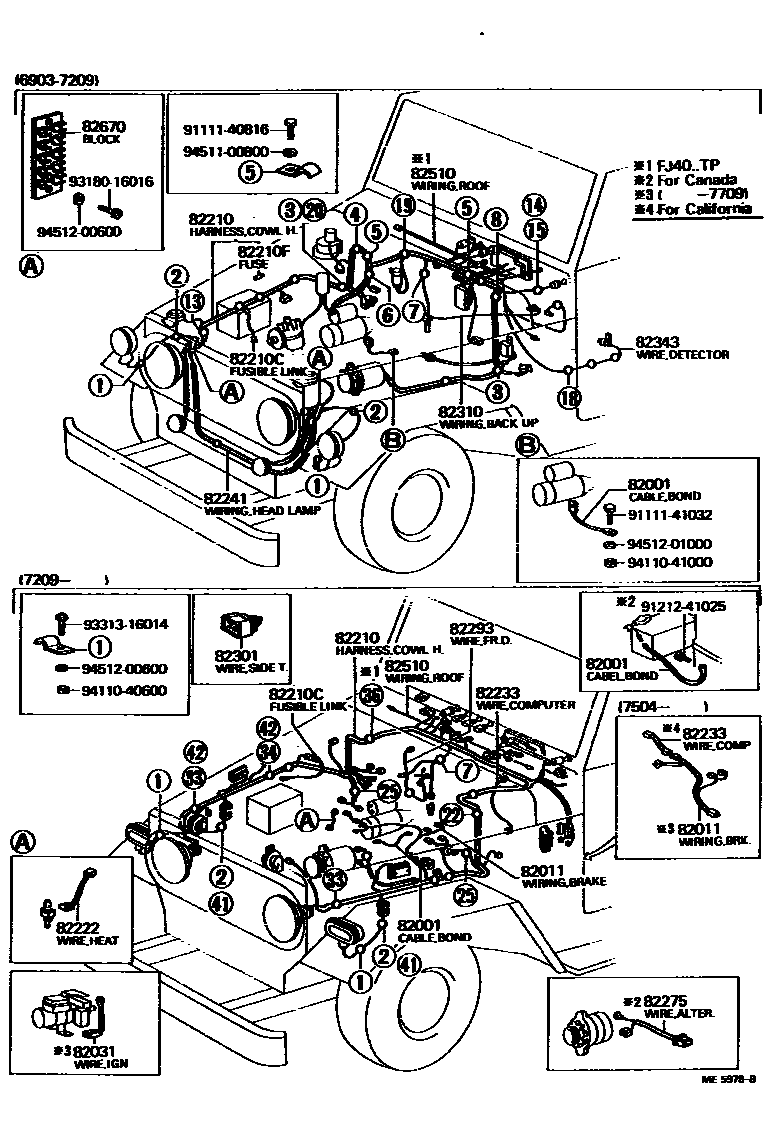

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=300
L=330
L=330
L=480
L=350; L=350,TRAILER SOCKET
L=350
L=350
L=300
82011WIRING ASSY, BRAKE WARNING SYSTEM
82031WIRE SUB-ASSY, IGNITION COIL
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
CALIFORNIA SPEC.
CALIFORNIA SPEC.
CALIFORNIA SPEC.
CALIFORNIA SPEC.
ARCTIC
CALIFORNIA SPEC.
CALIFORNIA SPEC.
ARCTIC
ARCTIC
82210CFUSIBLE LINK
FOR 24V
FOR 24V
82210FFUSE, COWL TO HEADLAMP WIRING HARNESS
10A
82222WIRE, HEAT GAGE
82233WIRE, COMPUTER
FOR FLANGE
CALIFORNIA SPEC.
CALIFORNIA SPEC.
82241WIRING ASSY, HEADLAMP JUNCTION
82275WIRE, ALTERNATOR
CALIFORNIA SPEC.
82293WIRE ASSY, FRONT DRIVE SOLENOID
82301WIRE SUB-ASSY, SIDE TURN SIGNAL RELAY
82310WIRING ASSY, TO BACK UP LAMP SWITCH
FOR MAGNET FRONT DRIVE
CALIFORNIA SPEC.
FOR MAGNET FRONT DRIVE
FOR MAGNET FRONT DRIVE
82343WIRE, DETECTOR
82510WIRING ASSY, ROOF
NO.1 & NO.2
NO.2
NO.2
82670BLOCK ASSY, JUNCTION, NO.1
9111140816
main91111-40816
9111141032
main91111-41032
9121241025
main91212-41025
9318016016
main93180-16016
9331316014
main93313-16014
9411040600
main94110-40600
9411041000
main94110-41000
9451100800
main94511-00800
9451200600
main94512-00600
9451201000
main94512-01000
26 parts on this diagram · 16 diagrams in section
