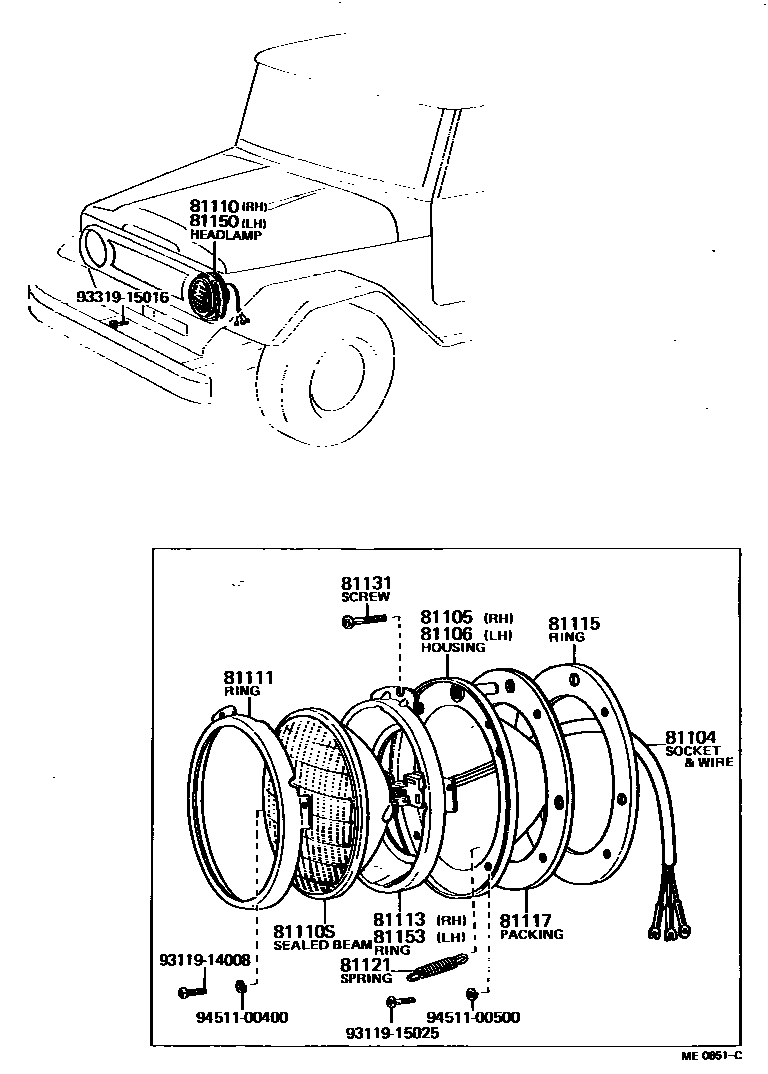

HEADLAMP
81104SOCKET & WIRE SUB-ASSY, HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81110SSEALED BEAM UNIT, NO.1
12V 50/40W
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81115RING, HEADLAMP HOUSING
81117PACKING, HEADLAMP HOUSING
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
9311914008
main93119-14008
9311915025
main93119-15025
9331915016
main93319-15016
9451100400
main94511-00400
9451100500
main94511-00500
18 parts on this diagram · 3 diagrams in section
