FUEL TANK & TUBE

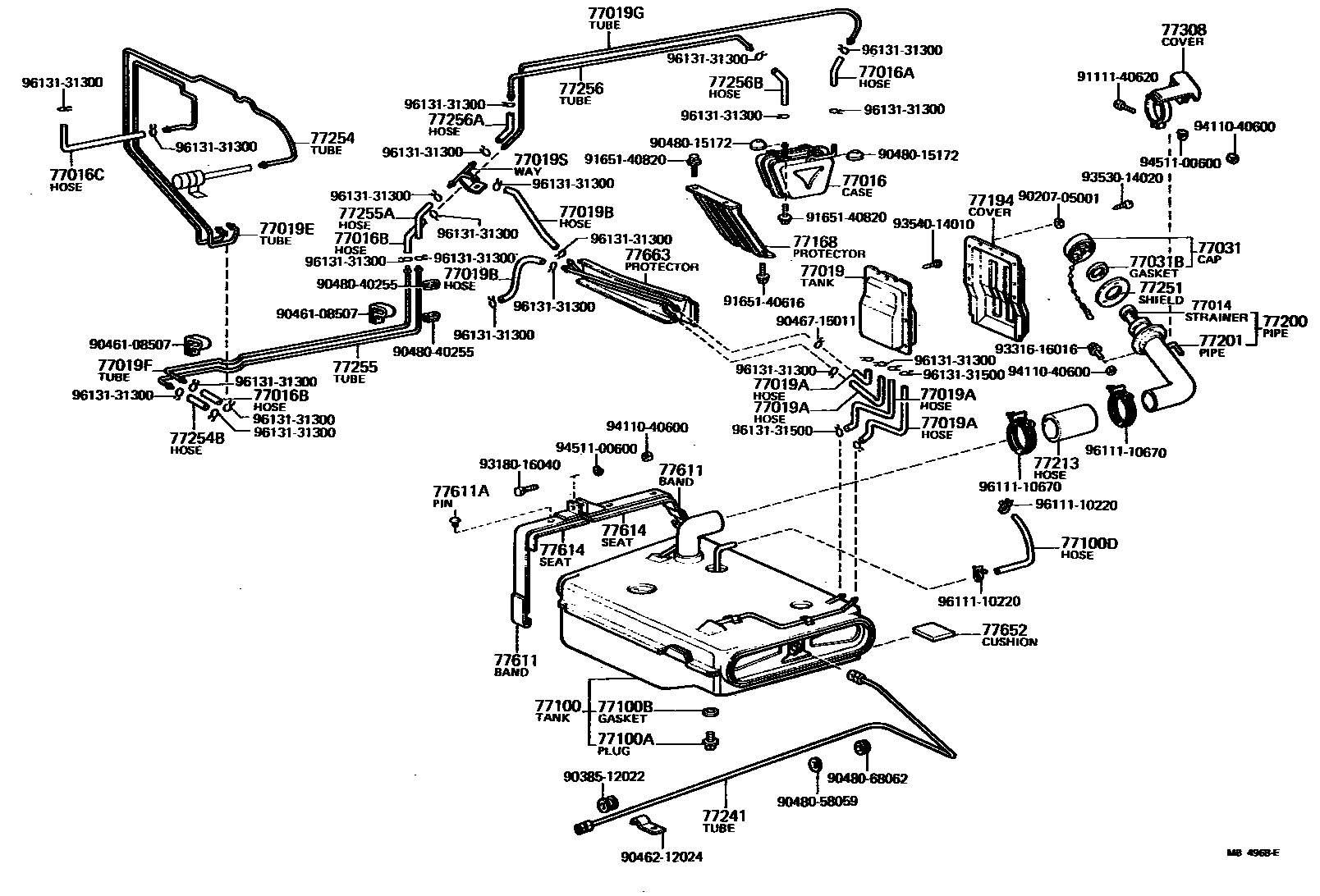

Parts diagram
77014STRAINER SUB-ASSY, FUEL
main77014-60010i196903-197109
main77014-60011i197109-197501
77016CASE SUB-ASSY, VAPOUR STORAGE
main77016-60010i197002-197109
main77160-90351i197002-197006
main77160-90352i197006-197109
77016AHOSE, FUEL, NO.1 (FOR VAPOUR STORAGE CASE)
main77132-90351i197002-197006
L=200,FRONT
main77132-90352i197006-197109
L=200,FRONT
main77134-90351i197002-197006
L=200,CENTER
main77135-90351i197002-197006
L=330,REAR
main77135-90352i197006-197109
L=330,REAR
main77142-90352i197006-197109
L=80,CENTER
main90445-14349i197002-197108
L=135
main95311-07013i197108-197109
L=130
77016BHOSE, FUEL, NO.2 (FOR VAPOUR STORAGE CASE)
main90445-14349×2i197002-197108
L=135
main95311-07013×2i197108-197109
L=130
77016CHOSE, FUEL, NO.3 (FOR VAPOUR STORAGE CASE)
main77131-90351i197002-197006
L=500
main77131-90352i197006-197109
L=500
main90445-14558i197002-197108
L=290
main95311-07032i197108-197109
L=320
77019TANK SUB-ASSY, FUEL EXPANSION
main77018-90351i197012-197209
FOR RH.
main77019-60010×2i197002-197012
FOR T.C.S.S.
main77019-90351i197012-197209
FOR LH.
77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
main77136-90352×2i197006-197209
L=860
main77137-90351×2i197002-197006
L=650
main77138-90351i197002-197006
L=400,RH.
main77138-90352×2i197006-197209
L=600
main77139-90351i197002-197006
L=900,LH.
main77196-90351×2i197002-197006
L=50
main90445-14463i197002-197108
L=184
main90445-16557×2i197002-197108
L=225
main95311-07019i197108-197203
L=190
main95311-09014i197002-197209
L=140
main95311-09024×2i197108-197209
L=240
main95331-08019i197204-197209
*H,L=190
77019BHOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)
main90445-14349i197002-197108
L=135
main95311-07013i197108-197109
L=130
main95311-09014i197002-197209
L=140
77019ETUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
main77134-90351i197002-197006
main77134-90352i197006-197109
main77249-60010i197002-197109
77019FTUBE, FUEL, NO.2(FOR FUEL EXPANSION TANK)
main77248-60010i197002-197109
77019GTUBE, FUEL, NO.3(FOR FUEL EXPANSION TANK)
main77247-60010i197002-197109
77019SWAY, 3(FOR FUEL EXPANSION TANK)
main77109-90353i197109-197209
main77259-60010i197002-197109
77031CAP ASSY, FUEL TANK
main77031-26023i197801-198007
W/VALVE,W/KEY
main77031-60011i197709-197801
L/VALVE,W/KEY
main77310-14070i197709-197801
W/VALVE,L/KEY
main77310-55080i197803-198007
W/VALVE,L/KEY
main77310-60010i197002-197012
L/VALVE,L/KEY
main77310-60050i197002-197109
W/VALVE,L/KEY
main77310-60051i197109-197709
W/VALVE,L/KEY
main77310-90351i196909-197109
W/VALVE,L/KEY
77031BGASKET (FOR FUEL TANK CAP)
main77316-12050i197901-198007
main77316-27010i197803-197901
main77316-60020i197002-197109
main90430-40059i196903-197002
77100TANK ASSY, FUEL
main77001-60012i196903-196908
main77001-60013i196908-197109
FOR L/T.C.S.S.
main77001-60050i197002-197203
FOR W/T.C.S.S.
main77001-90353i196903-196909
main77001-90355i196909-197006
FOR L/T.C.S.S.
main77001-90356i197002-197006
FOR W/T.C.S.S.
main77001-90358i197006-197203
FOR W/T.C.S.S.
main77100-60040i197204-197209
main77100-60041i197209-197302
main77100-60042i197302-197309
main77100-60043i197309-197901
main77100-60044i197901-197905
main77100-60045i197905-198007
main77100-60051i197803-197901
main77100-60052i197901-197905
main77100-60070i197606-197901
main77100-60080i197608-197709
main77100-60081i197709-197901
main77100-60082i197901-198007
main77100-90357i197006-197109
FOR L/T.C.S.S.
main77100-90358i197204-197209
main77100-90360i197209-197302
main77100-90363i197302-197605
main77100-90371i197605-197608
77100APLUG(FOR FUEL TANK)
main90105-12005i196903-196908
main90105-12018i196908-197901
main90341-24036i197901-198007
77100BGASKET(FOR FUEL TANK)
main90430-12038i196903-197706
main90430-12245i197706-197901
main90430-24047i197901-198007
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
main77264-90351×2i196903-196905
main77264-90352×2i196905-196909
main77271-90351i196909-197005
L=550
main77271-90352i197005-197209
L=550
main77272-90351i196909-197005
L=600
main77272-90352i197005-197608
L=600
main90445-20506i196909-197209
main90445-21888i197606-197901
main90445-22002i197901-197903
L=200
main90445-22014i197901-197903
main90445-22016i197903-198007
L=220
main90445-22907i197209-197901
main90445-22913i197903-198007
L=300
main90445-24014i197608-198007
L=160
main90445-24015i197608-198007
L=270
main90446-16097i196903-196909
77168PROTECTOR, STORAGE CASE
main77168-60010i197002-197109
77194COVER, FUEL TANK EXPANSION TANK
main77194-60010i197002-197209
77200PIPE ASSY, FUEL STRAINER AND OUTER INLET
main77200-60010i196903-197109
77201PIPE SUB-ASSY, FUEL TANK INLET
main77201-60011i196903-196909
main77201-60012i196909-197109
main77201-60013i197109-197209
main77201-60040i196903-196909
W/STRAINER
main77201-60041i196909-197109
W/STRAINER
main77201-60042i197109-197209
W/STRAINER
main77201-60050i197803-197901
main77201-60051i197901-198007
main77201-60060i197209-197608
W/STRAINER
main77201-60070i197606-197901
main77201-60072i197901-198007
main77201-60080i197606-197901
W/STRAINER
main77201-60082i197901-198007
W/STRAINER
main77201-60090i197608-197701
main77201-60091i197701-197901
main77201-60092i197901-198007
main77201-60102i197901-198007
main77201-60120i197608-197701
main77201-60121i197701-197709
main77201-60122i197709-197901
main77201-60123i197901-198007
main77201-90353i196903-196909
main77201-90354i196903-196909
W/STRAINER
main77201-90355i196909-197109
main77201-90356i197012-197109
FOR L/T.C.S.S.
main77201-90357i196909-197109
W/STRAINER
main77201-90358i197012-197109
W/STRAINER,L/T.C.S.S.
main77201-90360i197109-197209
FOR W/T.C.S.S.
main77201-90362i197109-197209
W/STRAINER
main77201-90364i197209-197608
main77201-90366i197209-197501
W/STRAINER
77213HOSE, FUEL TANK SUB INLET
main77212-90352i196903-197209
main77212-90353i197209-197608
main77213-60020i197608-197709
main77213-60022i197709-197901
main77213-60023i197901-198007
main77217-60010i196903-197109
main77217-60011i197109-197208
main77217-60013i197208-197209
main77217-60014i197209-197901
main77217-60015i197901-198007
main77217-60021i197606-197901
main77217-60022i197901-198007
77241TUBE, FUEL MAIN, NO.1
main77251-60030i197007-197302
main77251-60050i197302-197709
main77251-60051i197709-197901
main77251-60070i197803-197901
main77251-60080i197606-197709
main77251-60090i197608-197709
main77251-60091i197709-197901
main77251-60100i197709-197901
main77251-60130i197901-198007
main77251-60140i197901-198007
main77251-60150i197901-198007
main77251-60160i197901-198007
main77256-90351i196903-197006
main77256-90352i197006-197209
main77256-90353i197209-197211
main77256-90354i197211-197302
main77256-90355i197302-197608
main90923-01042i196903-197007
77251SHIELD, FUEL TANK, INLET, NO.1
main77262-90351i196903-197012
main77262-90352i197012-197608
main77293-60010i196903-197209
main77293-60020i197209-197901
main77293-60030i197608-197901
77254TUBE, FUEL EMISSION, NO.1
main77181-90353i197109-197209
main77181-90354i197209-197302
main77181-90355i197302-197501
main77181-90357i197501-197509
main77181-90359i197509-197608
main77182-90351i197002-197006
main77182-90352i197006-197109
main77244-60020i197709-197901
main77244-60050i197901-198007
main77244-60080i197901-198007
main77244-60090i197809-197901
main77244-60100i197809-198007
main77245-60040i197901-198007
main77246-60011i197109-197501
main77246-60012i197501-197602
main77246-60032i197602-197809
main77255-60010i197002-197109
main77261-60020i197606-197607
main77261-60021i197607-197901
main77262-60020i197608-197709
main77262-60021i197709-198007
77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
main77133-90351i197002-197006
L=100
main77133-90352i197006-197109
L=100
main90445-14349i197002-197108
L=135
main95311-07012i197109-197207
L=120
main95311-07024i197109-197203
L=240
main95311-09024i197108-197109
L=130
main95331-06011i197501-197706
*H,L=110
main95331-08011i197209-197501
*H,L=110
main95331-08012i197207-197209
*H,L=120
main95331-08024i197204-197209
*H,L=240
main95332-06011i197706-197709
L=200(*H,L=110)
main95332-06015i197901-197904
L=200(*H,L=150)
main95332-06020i197904-198007
L=200(*H,L=150)
main95332-06040i197709-198007
L=400
77255TUBE, FUEL EMISSION, NO.2
main77182-90353i197109-197209
main77182-90354i197209-197302
main77182-90355i197302-197501
main77182-90357i197501-197608
main77183-90351i197002-197006
RH.
main77183-90352i197006-197109
RH.
main77184-90351i197002-197006
LH.
main77184-90352i197006-197109
LH.
main77244-60021i197901-198007
main77254-60010i197002-197109
main77261-60010i197608-198007
77255AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
main77134-90351×2i197002-197006
L=200
main77134-90352×2i197006-197109
L=100
main90445-14349i197002-197108
L=135
main95311-07013i197108-197109
L=130
77256TUBE, FUEL EMISSION, NO.3
main77183-90353i197109-197209
RH.
main77184-90355i197109-197209
LH.
main77246-60010i197002-197109
77256AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
main90445-14349i197002-197108
L=135
main95311-07013i197108-197109
L=130
main95311-09010×2i197109-197209
L=100
77256BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
main90445-14349i197002-197108
L=135
main90445-14849×2i197109-197209
L=2300
main95311-07013i197108-197109
L=130
77308COVER SUB-ASSY, FUEL INLET BOX
main61802-90300i197209-197901
main61802-90301i197901-197904
main61802-90302i197904-198007
main61803-90351i197501-197805
main61803-90352i197208-197501
main61821-90904i196903-197208
main77011-60010i196903-196909
main77011-60011i196909-197209
77611BAND, FUEL TANK
main77601-60010×2i196903-197109
FRONT
main77601-60041i197901-198007
RH.
main77601-60051i197901-198007
RH.
main77601-90903×2i197109-197309
main77602-60011×2i196903-197109
REAR
main77602-60021i197901-198007
LH.
main77602-60031i197901-198007
LH.
77611APIN (FOR FUEL TANK BAND)
main77653-35010×10i196903-197109
77614SEAT, FUEL TANK BAND
main77615-60010×2i196903-197109
FRONT
main77616-60010×2i196903-197109
REAR
77652CUSHION, FUEL TANK, NO.1
main77651-60020i197901-198007
750X100
main77651-60030×5i197810-197901
main77652-60010×4i196903-197810
main77652-60011×2i197901-198007
230X80
main77653-60010i197901-198007
350X80
main77654-60010×4i197901-198007
100X100
77663PROTECTOR, FUEL TANK BREATHER TUBE, FRONT
main77205-60010i197002-197209
9020705001
main90207-05001
9038512022
main90385-12022
9046108507
main90461-08507
9046212024
main90462-12024
9046715011
main90467-15011
9048015172
main90480-15172
9048040255
main90480-40255
9048058059
main90480-58059
9048068062
main90480-68062
9111140620
main91111-40620
9165140616
main91651-40616
9165140820
main91651-40820
9318016040
main93180-16040
9331616016
main93316-16016
9353014020
main93530-14020
9354014010
main93540-14010
9411040600
main94110-40600
9451100600
main94511-00600
9611110220
main96111-10220
9611110670
main96111-10670
9613131300
main96131-31300
9613131500
main96131-31500

60 parts on this diagram · 14 diagrams in section

FUEL TANK & TUBE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
