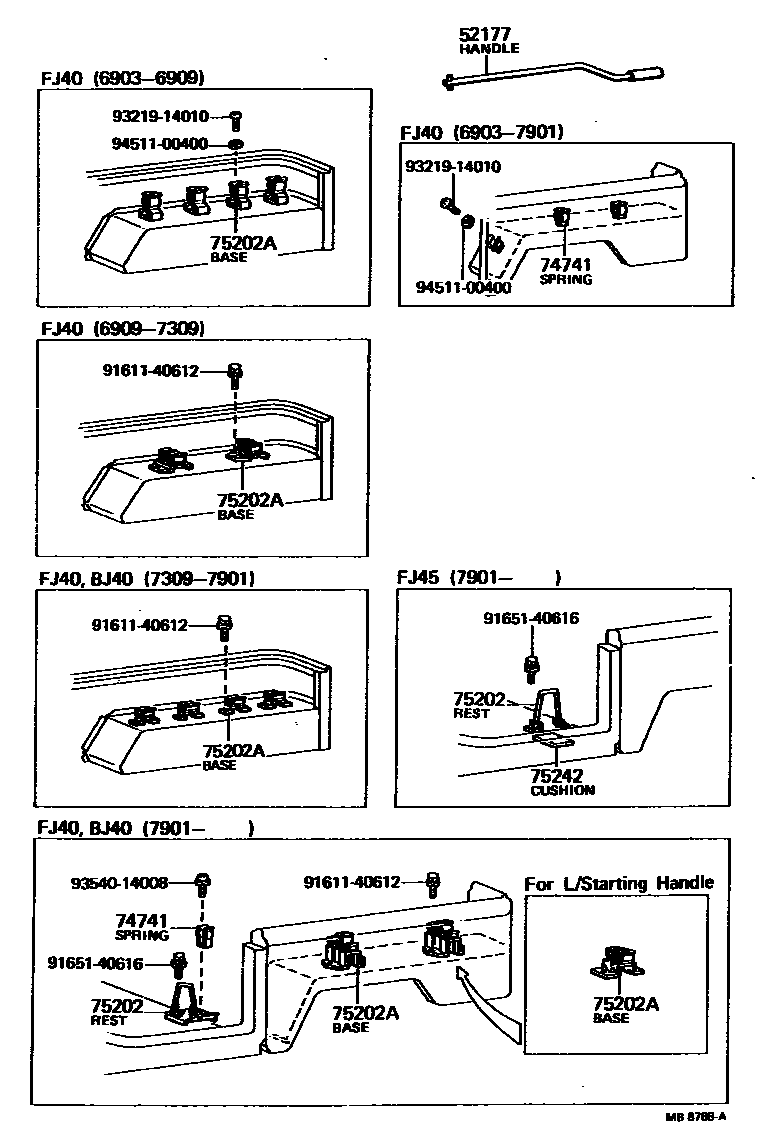

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

52177HANDLE, STARTING OR SPARE WHEEL CARRIER

main51409-66010iFJ4#,55196903-197901

L=850

main51481-65010iFJ55197505-197901

L=1005

74741SPRING, STARTING HANDLE SUPPORT

main74741-90301×3iFJ40196903-197901

75202REST SUB-ASSY, JACK

main75202-90300iBJ40,FJ40197901-198007

main75202-90301iFJ45197901-198007

75202ABASE SUB-ASSY, JACK HANDLE CLAMP

main58305-60010×2iFJ40196909-197309

main58305-90301×2iBJ40,FJ40197309-198007

main58305-90302×2iFJ40197901-198007

W/STARTING HANDLE

main58363-60010×4iFJ40196903-196909

75242CUSHION, JACK SEAT

main75242-90301iFJ45197901-198007

9161140612

main91611-40612

9165140616

main91651-40616

9321914010

main93219-14010

9354014008

main93540-14008

9451100400

main94511-00400

10 parts on this diagram · 2 diagrams in section
