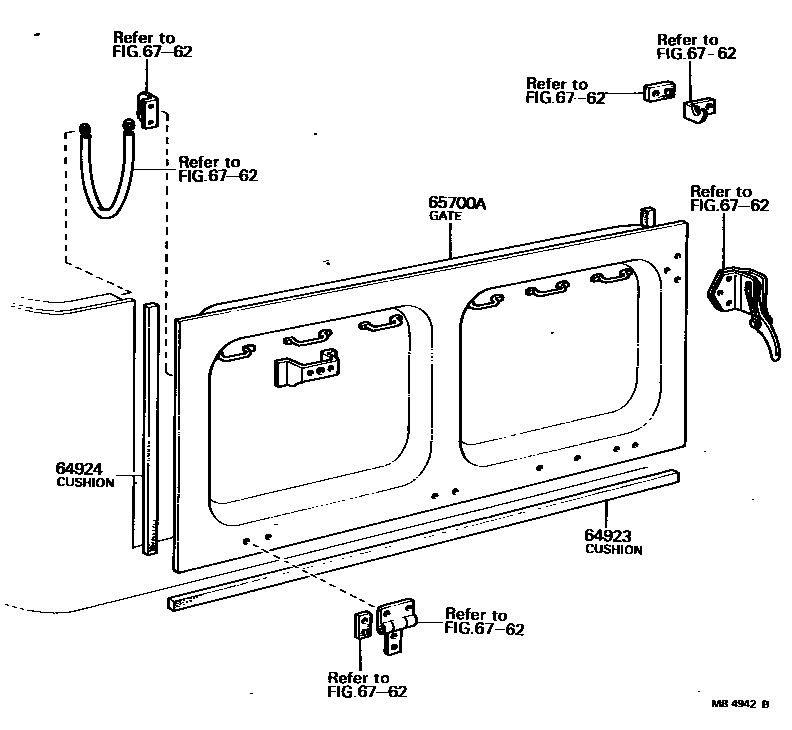

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

64923CUSHION, REAR DROP GATE, LOWER

main64923-60010iFJ40..TP196903-197901

main64923-90300iFJ40..TP197901-198007

main64964-60010×2iFJ40..VLS196903-197207

64924CUSHION, REAR DROP GATE, SIDE

main64921-90300iFJ40..VLS197207-197501

RH.

main64922-60010×2iFJ40..VLS196903-197207

main64922-90300iFJ40..VLS197207-197501

LH.

main64922-90302×2iFJ40..TP197901-198007

65700AGATE ASSY, REAR DROP

main64901-60020iFJ40..TP196903-197402

main64901-90306iFJ40..TP197509-197803

main64901-90307iFJ40..TP197402-197509

main64901-90316iFJ40..TP197803-198007

6762BACK DOOR LOCK & HINGE

→ Go to FIG 67-62

4 parts on this diagram · 5 diagrams in section
