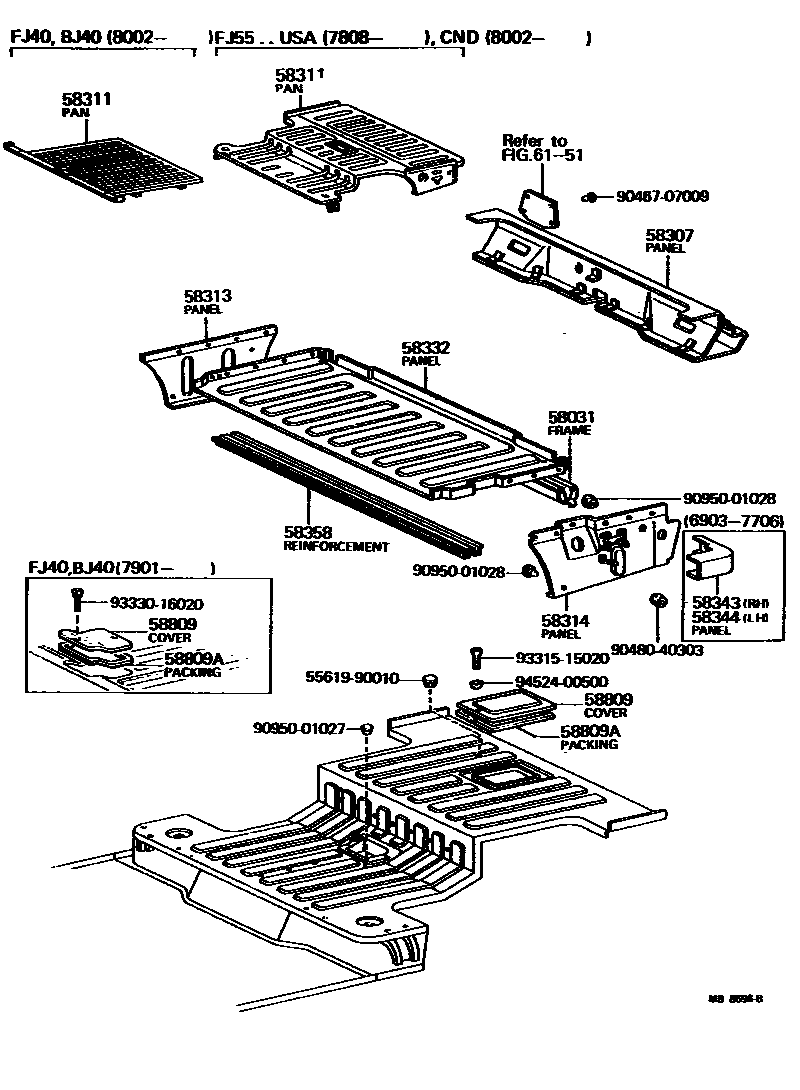

REAR FLOOR PANEL & REAR FLOOR MEMBER

58031FRAME SUB-ASSY, FUEL TANK

main58031-90351×2iFJ55197209-198007

58307PANEL SUB-ASSY, BODY LOWER BACK

main61502-90351iFJ55196903-197209

main61502-90352iFJ55197209-197706

main61502-90356iFJ55197706-197809

main61502-90359iFJ55..CND197809-198007

58311PAN, REAR FLOOR

main58301-90389iFJ55..USA197808-198007

main58301-90672iFJ55..CND198002-198007

main58301-90810iBJ40,FJ40198002-198007

58313PANEL, REAR FLOOR SIDE, RH

main58323-90352iFJ55196909-197209

FOR W/T.C.S.S.

main58323-90353iFJ55196903-197901

main58323-90354iFJ55197901-198007

58314PANEL, REAR FLOOR SIDE, LH

main58324-90351iFJ55196903-197109

FOR L/T.C.S.S.

main58324-90352iFJ55196909-197209

FOR W/T.C.S.S.

main58324-90354iFJ55197209-197901

main58324-90357iFJ55197901-198007

58332PANEL, REAR FLOOR, REAR

main58304-90351iFJ55196903-197109

FOR L/T.C.S.S.

main58304-90356iFJ55196903-197209

FOR W/T.C.S.S

main58313-90355iFJ55197209-198007

58343PANEL, REAR FLOOR SIDE, REAR RH

main58341-90351iFJ55196903-197706

58344PANEL, REAR FLOOR SIDE, REAR LH

main58342-90351iFJ55196903-197706

58358REINFORCEMENT, REAR FLOOR, REAR

main58355-90351iFJ55197209-198007

58809COVER SUB-ASSY, FUEL TANK

main58319-90351iFJ55196903-198007

main58372-90300iBJ40,FJ40197901-198007

58809APACKING, FUEL HOLE COVER

main58329-90351iFJ55197901-198007

main58373-90300iBJ40,FJ40197901-198007

6151SIDE MEMBER

→ Go to FIG 61-51

5561990010COVER, SWITCH HOLE

main55619-90010

9046707009

main90467-07009

9048040303

main90480-40303

9095001027

main90950-01027

9095001028

main90950-01028

9331515020

main93315-15020

9333016020

main93330-16020

9452400500

main94524-00500

20 parts on this diagram · 1 diagram in section
