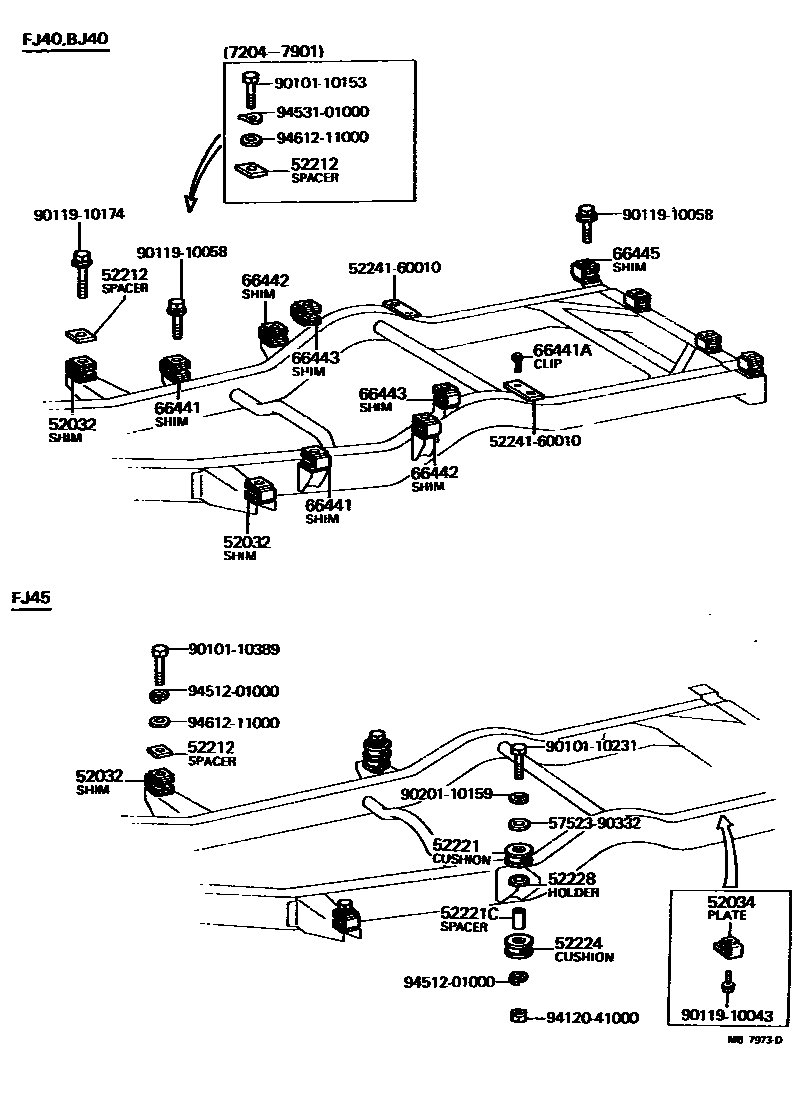

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

52032SHIM SUB-ASSY, COWL BODY MOUNTING

main52032-30010×2iFJ4#196903-197612

main52032-90300×2iBJ40,FJ4#197612-197901

52034PLATE SUB-ASSY, DECK MOUNTING SHIM

main52034-90300×10iFJ45197606-198007

52212SPACER, BODY MOUNTING

main52211-90351×4iFJ55197501-197606

main52211-90353×3iFJ55197309-197501

NO.1 CALIFORNIA SPEC.

main52211-90354×4iFJ55197606-198007

main52212-90310iBJ40,FJ4#197204-197901

T=10

main52212-90351iFJ55196903-197501

NO.2

main52212-90353iFJ55197309-197501

NO.2 CALIFORNIA SPEC.

main52216-90310iBJ40,FJ40197204-197901

T=5.0

main52217-90310iBJ40,FJ40197204-197901

T=15

main52231-90300iBJ40,FJ4#197901-198007

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52202-30010×2iFJ55196903-198007

main52203-35010×2iFJ45197606-197901

main52203-90300×2iBJ40,FJ4#197901-198007

52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)

main90440-16014×2iFJ45197606-197901

main90560-12009×2iBJ40,FJ4#197901-198007

main90560-12231×2iFJ55196903-198007

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52022-60010×2iFJ55196903-198007

main52204-35010×2iFJ45197606-197901

main52204-90300×2iBJ40,FJ4#197901-198007

52228HOLDER, BODY MOUNT BOLT SPACER, NO.2

main52228-22010×2iFJ55197901-198007

main52228-30010×2iFJ55196903-197901

main52311-35010×2iFJ45197606-197901

66441SHIM, MOUNTING, NO.1

main52033-30010×2iFJ40196903-197109

main52033-90301×2iBJ40,FJ40197606-197901

main52033-90302×2iFJ40197109-197606

66441ACLIP, MOUNTING SHIM SET

main90467-11003×4iBJ40,FJ40196903-197901

66442SHIM, MOUNTING, NO.2

main52033-30010×2iFJ40196903-197109

main52033-90301×2iBJ40,FJ40197606-197901

T=22.8

main52033-90302×2iFJ40197109-197606

T=22.8

main52033-90304×2iBJ40,FJ40197305-197901

T=27.8

66443SHIM, MOUNTING, NO.3

main52033-30010×2iFJ40196903-197109

main52033-90301×2iBJ40,FJ40197109-197901

main66443-95010×4iFJ45197901-198007

66445SHIM, MOUNTING, REAR

main52033-90301×4iFJ40197606-197612

main52033-90302×4iFJ40196903-197606

main52033-90305×4iBJ40,FJ40197612-197901

5224160010CUSHION, BODY MOUNT, NO.4 UPPER

main52241-60010

5752390332BRACE, CENTER FLOOR CROSSMEMBER

main57523-90332

9010110153

main90101-10153

9010110231

main90101-10231

9010110389

main90101-10389

9011910043

main90119-10043

9011910058

main90119-10058

9011910174

main90119-10174

9020110159

main90201-10159

9412041000

main94120-41000

9451201000

main94512-01000

9453101000

main94531-01000

9461211000

main94612-11000

25 parts on this diagram · 4 diagrams in section
