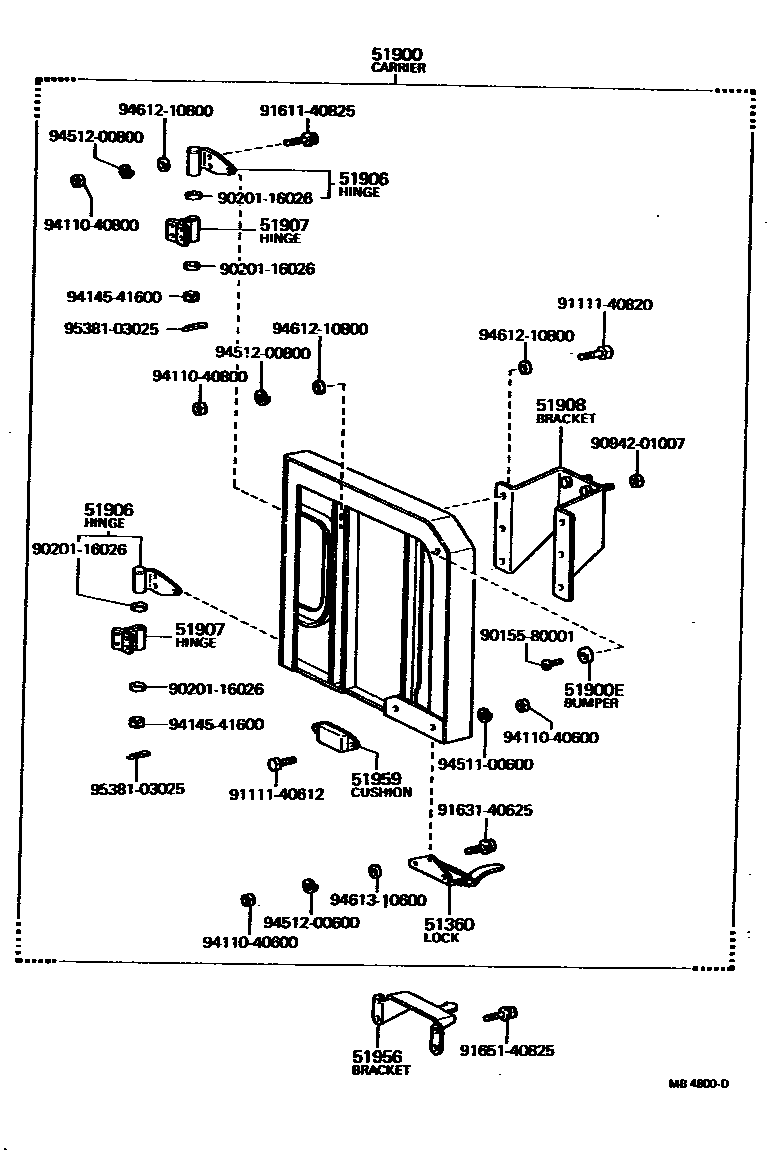

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1 0004 1

51360LOCK ASSY, SPARE WHEEL

main51930-90300iBJ40,FJ40197608-198007

main69350-60010iFJ40..TP;FJ40..VLS196903-197509

main69360-60010iFJ40..VKC197204-197509

51900CARRIER ASSY, SPARE WHEEL

main51900-60050iFJ40..TP196903-197109

main51900-60070iFJ40..VLS196903-197109

main51900-60080iFJ55196903-196904

main51900-60081iFJ45,55196904-198007

main51900-90300iFJ40..VKC197204-197509

main51900-90302iBJ40,FJ40197608-198005

main51900-90305iFJ40..TP;FJ40..VLS197109-197509

main51903-90800iBJ40,FJ40198005-198007

main51911-90903iFJ55196903-197501

INTERIOR SPARE WHEEL

51900EBUMPER, SPARE WHEEL CARRIER

main51908-90300iFJ40197510-197608

main51924-90351×2iFJ55196903-197501

FOR INTERIOR SPARE WHEEL

main51928-90300iBJ40,FJ40197608-198007

main53381-30010iFJ40..VLS196903-196908

main53382-20011iFJ40..V196908-197211

main53382-90901iFJ40197211-197501

main53382-90902iFJ40197501-197510

51906HINGE SUB-ASSY, SPARE WHEEL CARRIER MALE

main51907-60040×2iFJ40196903-197109

51907HINGE SUB-ASSY, SPARE WHEEL CARRIER

main51907-60030×2iFJ40196903-197109

main51937-90302iBJ40,FJ40197608-198007

LOWER

main51947-90300iBJ40,FJ40197608-198005

UPPER

main51955-90800iBJ40,FJ40198005-198007

UPPER

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51904-60010iFJ40196903-197608

51956BRACKET, SPARE WHEEL CARRIER SUPPORT

main51926-90301iBJ40,FJ40197608-198007

main51955-60010iFJ40197509-197608

main51955-60020iFJ40..TP;FJ40..VLS196903-197509

51959CUSHION, SPARE WHEEL

main51907-60010iFJ40..VLS196903-197109

main51907-60020iFJ40..TP196903-197109

main51907-90300iFJ40197109-197608

main51929-90300iBJ40,FJ40197608-198007

9015580001

main90155-80001

9020116026

main90201-16026

9094201007

main90942-01007

9111140612

main91111-40612

9111140820

main91111-40820

9161140825

main91611-40825

9163140625

main91631-40625

9165140825

main91651-40825

9411040600

main94110-40600

9411040800

main94110-40800

9414541600

main94145-41600

9451100600

main94511-00600

9451200600

main94512-00600

9451200800

main94512-00800

9461210800

main94612-10800

9461310600

main94613-10600

9538103025

main95381-03025

25 parts on this diagram · 4 diagrams in section
