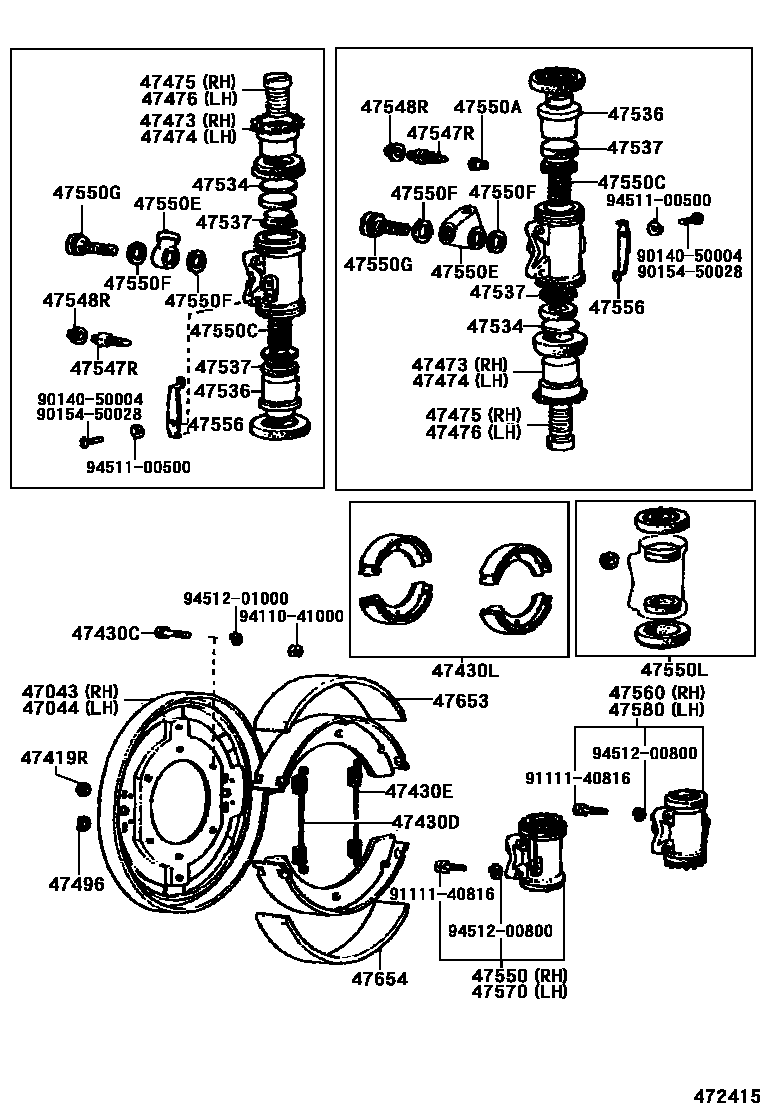

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35010iFJ40,55196903-197109

main47043-60010iBJ40,FJ40,55197109-198007

main47043-60021iBJ40,FJ40,55197509-198007

FOR FULL FLOATING AXLE

main47043-60040iFJ45197606-198007

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47043-35010iFJ40,55196903-197109

main47043-60010iBJ40,FJ40,55197109-198007

main47043-60021iBJ40,FJ40,55197509-198007

FOR FULL FLOATING AXLE

main47043-60040iFJ45197606-198007

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBJ40,FJ4#,55196903-198007

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-30010×4iBJ40,FJ40,55197109-198007

main90501-23002×2iFJ45197606-198007

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071×2iFJ40,55196903-197109

main90506-26372×2iBJ40,FJ4#,55197109-198007

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26071×2iFJ40,55196903-197109

main90506-26372×2iBJ40,FJ4#,55197109-198007

47430LSHOE KIT, REAR BRAKE

main04494-60010iBJ40,FJ40,55196903-198007

main04494-60020iFJ45197606-198007

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36071×2iFJ45197802-198007

main47552-25040×2iFJ45197606-197802

main47552-35020×2iFJ55196903-197007

main47552-60010×2iFJ40196903-197007

main47552-60020×2iFJ40197007-197309

main47552-60021×2iBJ40,FJ40197309-198007

main47552-60030×2iFJ55197007-197309

main47552-60031×2iFJ55197309-198007

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47551-25040×2iFJ45197606-197802

main47551-35020×2iFJ55196903-197007

main47551-60010×2iFJ40196903-197007

main47551-60020×2iFJ40197007-197309

main47551-60021×2iBJ40,FJ40197309-198007

main47551-60030×2iFJ55197007-197309

main47551-60031×2iFJ55197309-198007

main47552-36071×2iFJ45197802-198007

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36021×2iFJ45197802-197906

main47553-60030×2iFJ45197906-198007

main47553-60040×2iBJ40,FJ40,55197911-198007

main47554-25010×2iFJ45197606-197802

main47554-35010×2iFJ40,55196903-197007

main47554-60010×2iBJ40,FJ40,55197007-197911

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47553-25010×2iFJ45197606-197802

main47553-35010×2iFJ40,55196903-197007

main47553-60010×2iBJ40,FJ40,55197007-197911

main47554-36021×2iFJ45197802-197906

main47554-60030×2iFJ45197906-198007

main47554-60040×2iBJ40,FJ40,55197911-198007

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20020×4iBJ40,FJ4#,55197412-197809

main47491-35021×4iFJ40,55196903-197412

main47491-36010×4iBJ40,FJ4#,55197809-198007

47534SEAT, WHEEL CYLINDER PISTON CUP(FOR REAR BRAKE)

main47534-35010×4iFJ55196903-197007

main47534-60010×4iFJ40196903-197007

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-35020×4iFJ40196903-197007

main47531-35030×4iFJ55196903-197007

main47531-60020×4iBJ40,FJ40197007-198007

main47531-60030×4iFJ55197007-198007

47537SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-30011×8iFJ45197606-198007

main47533-35020×8iFJ40196903-197007

main47533-35030×8iFJ55196903-197007

main47533-40020×8iFJ40197007-197412

main47533-60010×8iFJ55197007-197412

main47533-60011×8iBJ40,FJ40,55197412-198007

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBJ40,FJ4#,55197109-198007

main47547-35010×2iFJ40,55196903-197011

main47547-35011×2iFJ40,55197011-197109

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBJ40,FJ4#,55196903-198007

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29085iFJ45197606-197903

main47550-29215iFJ45197903-197906

main47550-60010×2iFJ40196903-197007

main47550-60030iFJ40197007-197109

main47550-60040iFJ55197007-197109

main47550-69015iFJ55196903-197007

main47550-69045iBJ40,FJ40197109-197911

main47550-69055iFJ55197109-197906

main47550-69075iBJ40,FJ40197911-198007

main47550-69085iFJ55197906-198007

main47550-69095iFJ45197906-198007

47550ASEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90410-03015×2iFJ4#,55197109-197802

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iFJ45197606-198007

main90501-08529×4iFJ40,55197007-197412

main90501-09735×4iBJ40,FJ40,55197412-198007

47550EUNION(FOR REAR WHEEL BRAKE CYLINDER)

main90405-09024×2iFJ40196903-197007

FOR FRONT

main90405-09042×2iFJ40196903-197007

FOR REAR

main90405-10006×2iFJ55196903-197007

FOR FRONT

main90405-10054×2iFJ55196903-197007

FOR REAR

47550FGASKET(FOR REAR WHEEL BRAKE CYLINDER)

main90430-11100×8iFJ40,55196903-197109

47550GBOLT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90401-11017×2iFJ40,55196903-197007

FOR REAR

main90401-11043×2iFJ40,55197007-197109

FOR REAR

47550LCUP KIT, REAR WHEEL CYLINDER

main04476-25020×4iFJ45197606-197802

main04476-35060×4iFJ55196903-197007

main04476-36040×4iFJ45197802-198007

main04476-60010×4iFJ40196903-197007

main04476-60020×4iFJ40197007-197309

main04476-60021×4iFJ40197309-197802

main04476-60024×4iBJ40,FJ40197802-198007

main04476-60030×4iFJ55197007-197309

main04476-60031×4iFJ55197309-197802

main04476-60032×4iFJ55197802-198007

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-35010×4iFJ4#,55196903-197802

main47555-36020×4iBJ40,FJ4#,55197802-198007

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-29015iFJ45197606-197903

main47560-29075iFJ45197903-197906

main47560-60010iFJ40196903-197007

main47560-60020iFJ55196903-197007

main47560-60030iFJ40197007-197109

main47560-60040iFJ55197007-197109

main47560-69035iBJ40,FJ40197109-197911

main47560-69045iFJ55197109-197906

main47560-69055iBJ40,FJ40197911-198007

main47560-69065iFJ55197906-198007

main47560-69075iFJ45197906-198007

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-29015iFJ45197606-197903

main47570-29075iFJ45197903-197906

main47570-60010iFJ40196903-197007

main47570-60030iFJ40197007-197109

main47570-60040iFJ55197007-197109

main47570-69015iFJ55196903-197007

main47570-69035iBJ40,FJ40197109-197911

main47570-69045iFJ55197109-197906

main47570-69065iBJ40,FJ40197911-198007

main47570-69075iFJ55197906-198007

main47570-69085iFJ45197906-198007

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-29015iFJ45197606-197903

main47580-29075iFJ45197903-197906

main47580-60010iFJ40196903-197007

main47580-60020iFJ55196903-197007

main47580-60030iFJ40197007-197109

main47580-60040iFJ55197007-197109

main47580-69035iBJ40,FJ40197109-197911

main47580-69045iFJ55197109-197906

main47580-69055iBJ40,FJ40197911-198007

main47580-69065iFJ55197906-198007

main47580-69075iFJ45197906-198007

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-60010×2iBJ40,FJ40,55196903-198007

main47651-60020×2iFJ45197606-198007

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-60010×2iBJ40,FJ40,55196903-198007

main47651-60020×2iFJ45197606-198007

9014050004

main90140-50004

9015450028

main90154-50028

9111140816

main91111-40816

9411041000

main94110-41000

9451100500

main94511-00500

9451200800

main94512-00800

9451201000

main94512-01000

37 parts on this diagram · 4 diagrams in section
