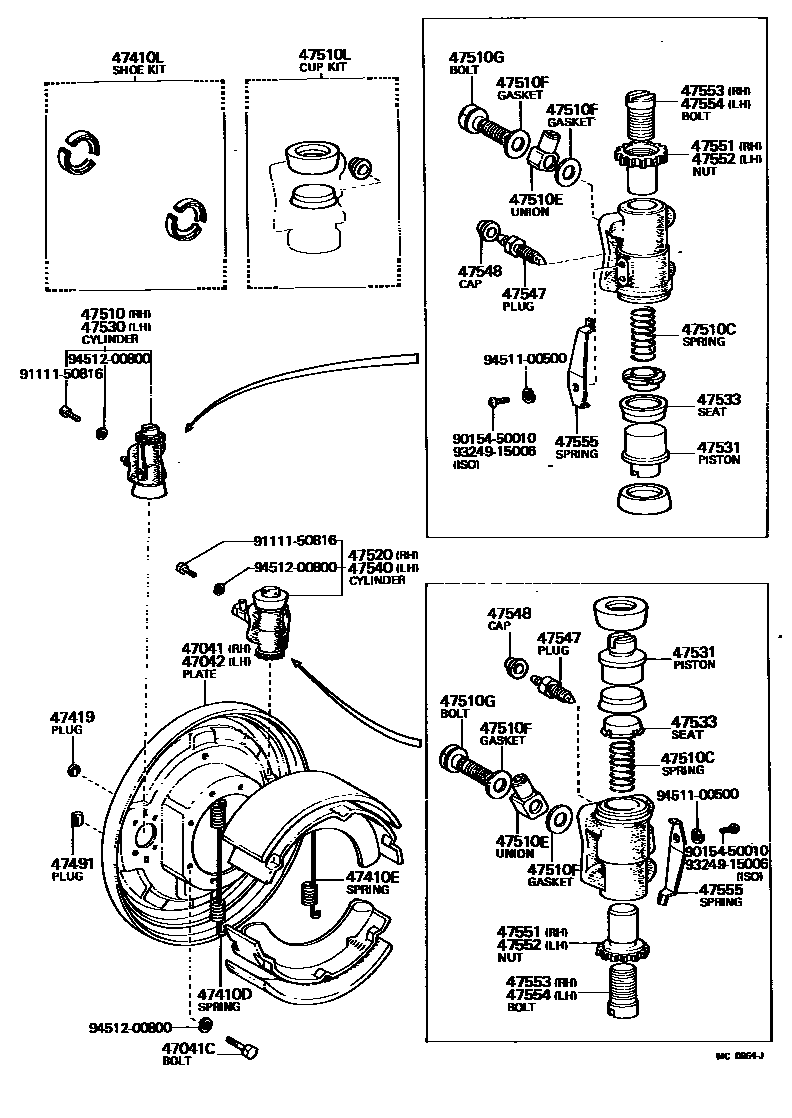

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-60021iFJ40,55196903-197109

main47041-60022iFJ40,55197109-197509

main47041-60040iFJ45197606-198007

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90101-10439×16iFJ45197606-198007

*14-1.25PX28-20

main90103-08003×16iFJ40,55196903-197509

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47041-60021iFJ40,55196903-197109

main47041-60022iFJ40,55197109-197509

main47041-60040iFJ45197606-198007

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26071×2iFJ40,55196903-197109

main90506-26372×2iFJ40,55197109-197509

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-26071×2iFJ40,55196903-197109

main90506-26372×2iFJ40,55197109-197509

47410LSHOE KIT, FRONT BRAKE

main04494-60010iFJ40,55196903-197509

main04494-60020iFJ45197606-198007

47419PLUG, HOLE(FOR FRONT BRAKE)

main47419-35011×4iFJ40,55196903-197509

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020×4iFJ40,55197412-197509

main47491-35021×4iFJ40,55196903-197412

main47491-36010×4iFJ45197809-198007

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-29085iFJ45197606-197802

main47510-39126iFJ45197802-197906

main47510-60020iFJ40196903-197007

main47510-60030iFJ55196903-197007

main47510-60040iFJ40,55197007-197109

main47510-69035iFJ40,55197109-197509

main47510-69055iFJ45197906-198007

47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)

main90501-08122×4iFJ40,55196903-197309

main90501-10759×4iFJ45197606-198007

main90502-10052×4iFJ40,55197309-197412

47510EUNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90405-09024×4iFJ40196903-197007

main90405-10006×4iFJ55196903-197007

47510FGASKET(FOR FRONT WHEEL BRAKE CYLINDER)

main90430-11100×8iFJ40,55196903-197109

47510GBOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90401-11017×4iFJ40,55196903-197109

47510LCUP KIT, FRONT WHEEL CYLINDER

main04475-25010×4iFJ45197609-197802

main04475-35040×4iFJ40,55196903-197007

main04475-36030×4iFJ45197802-198007

main04475-60020×4iFJ40,55197007-197309

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-29085iFJ45197606-197802

main47510-39126iFJ45197802-197906

main47510-60020iFJ40196903-197007

main47510-60030iFJ55196903-197007

main47510-60040iFJ40,55197007-197109

main47510-69035iFJ40,55197109-197509

main47510-69055iFJ45197906-198007

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-29085iFJ45197606-197802

main47530-39126iFJ45197802-197906

main47530-60010iFJ40196903-197007

main47530-60020iFJ55196903-197007

main47530-60030iFJ40,55197007-197109

main47530-69025iFJ40,55197109-197509

main47530-69045iFJ45197906-198007

47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)

main47531-35030×4iFJ40,55196903-197007

main47531-60010×4iFJ40,55197007-197509

47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)

main47533-25010×4iFJ40,55197412-197509

main47533-26010×4iFJ40,55197007-197309

main47533-35030×4iFJ40,55196903-197007

main47533-36020×4iFJ40,55197309-197412

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-29085iFJ45197606-197802

main47530-39126iFJ45197802-197906

main47530-60010iFJ40196903-197007

main47530-60020iFJ55196903-197007

main47530-60030iFJ40,55197007-197109

main47530-69025iFJ40,55197109-197509

main47530-69045iFJ45197906-198007

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010×4iFJ40,55197109-197509

main47547-35010×4iFJ40,55196903-197011

main47547-35011×4iFJ40,55197011-197109

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×4iFJ40,55196903-197509

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-36041×2iFJ45197802-198007

main47552-25030×2iFJ45197606-197802

main47552-35010×2iFJ40,55196903-197309

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47551-25030×2iFJ45197606-197802

main47551-35010×2iFJ40,55196903-197309

main47552-36041×2iFJ45197802-198007

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36021×2iFJ45197802-197906

main47553-60030×2iFJ45197906-198007

main47554-25010×2iFJ45197606-197802

main47554-35010×2iFJ40,55196903-197509

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47553-25010×2iFJ45197606-197802

main47553-35010×2iFJ40,55196903-197509

main47554-36021×2iFJ45197802-197906

main47554-60030×2iFJ45197906-198007

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-35010×4iFJ40,55196903-197509

main47555-36020×4iFJ45197802-198007

9015450010

main90154-50010

9111150816

main91111-50816

9324915006

main93249-15006

9451100500

main94511-00500

9451200800

main94512-00800

31 parts on this diagram · 3 diagrams in section
