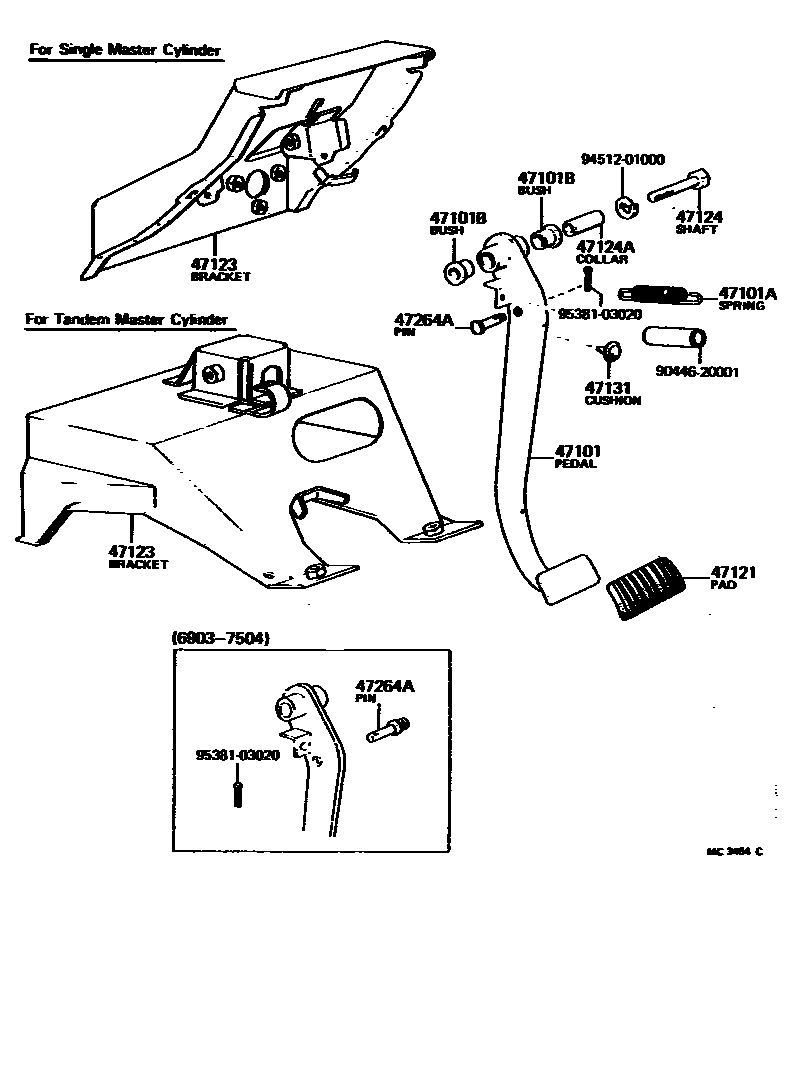

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-60030iFJ40196903-197007

main47101-60050iFJ55196903-197007

main47101-60060iBJ40,FJ4#,55197007-197901

main47101-60061iBJ40,FJ4#,55197901-198007

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12023iFJ40196903-197007

main90506-12450iBJ40,FJ4#197309-198007

main90506-12451iFJ55197309-198007

main90506-16027iFJ55196903-197309

main90506-18189iFJ40197007-197309

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007×2iBJ40,FJ4#,55196903-198007

47121PAD, BRAKE PEDAL

main31321-36010iBJ40,FJ4#,55197901-198007

main31321-61010iBJ40,FJ4#,55196903-197901

47123BRACKET, BRAKE PEDAL

main55106-60010iFJ40196903-197007

main55106-60020iBJ40,FJ4#197007-197901

main55106-90304iBJ40,FJ4#197901-198007

main55106-90351iFJ55196903-197007

main55106-90353iFJ55197007-197209

main55106-90355iFJ55197209-197709

main55106-90357iFJ55197709-198007

47124SHAFT, BRAKE PEDAL

main91121-51070iBJ40,FJ4#,55197211-198007

main91121-51071iFJ40,55196903-197211

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBJ40,FJ4#,55196903-198007

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iFJ55196903-197007

47264APIN(FOR PUSH ROD)

main90249-10002iFJ40,55196903-197504

main90249-10048iBJ40,FJ4#,55197504-198007

9044620001

main90446-20001

9451201000

main94512-01000

9538103020

main95381-03020

12 parts on this diagram · 2 diagrams in section
