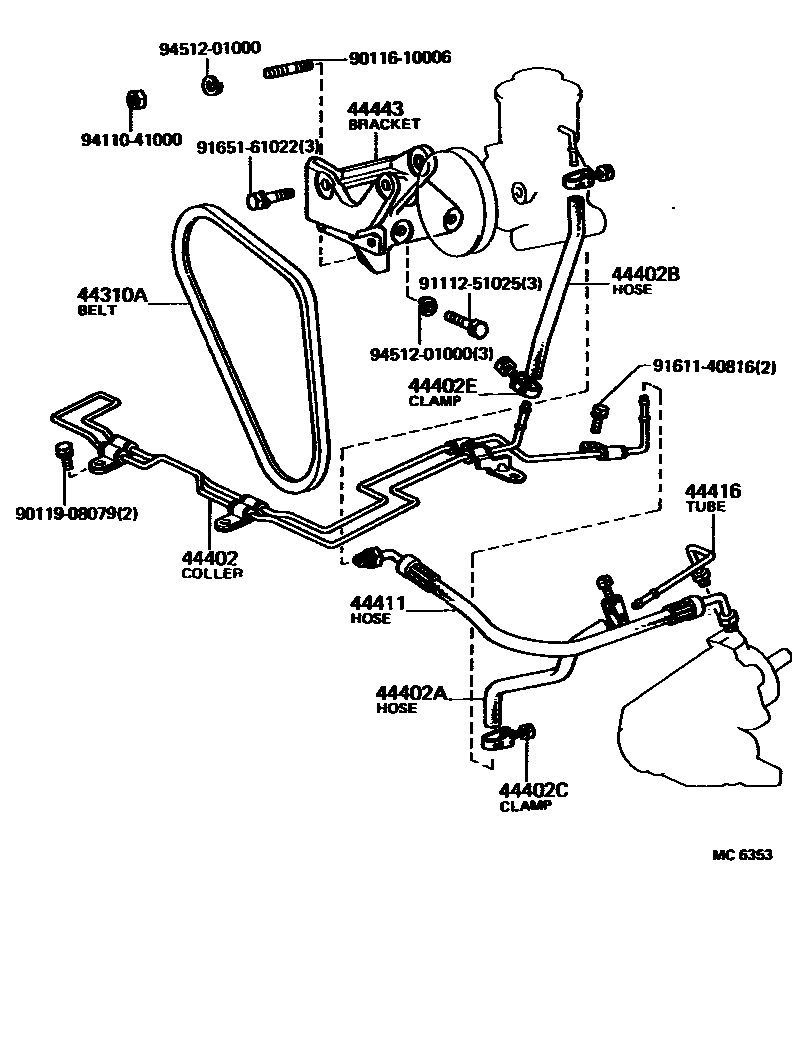

POWER STEERING TUBE

0001 1 0002 1 0003 1

44310ABELT, V(FOR VANE PUMP)

main90916-02089iFJ4#..CND197909-198007

main99343-01570iFJ40,55..USA197901-198007

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44420-60030iFJ40..USA197901-198007

main44420-60050iFJ55..USA197901-198007

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18055iFJ40..USA197901-198007

main90445-18058iFJ55..USA197901-198007

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18034iFJ55..USA197901-198007

main90445-18075iFJ40..USA197901-198007

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iFJ40,55..USA197901-198007

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iFJ40,55..USA197901-198007

44411HOSE, PRESSURE FEED

main44411-60030iFJ40..USA197901-198007

main44411-60050iFJ55..USA197901-198007

main44411-60080iFJ4#..CND197909-198007

GEAR SIDE

main44411-60090iFJ4#..CND197909-198007

PUMP SIDE

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60020iFJ40..USA197901-197909

main44416-60030iFJ55..USA197901-198007

44443BRACKET, PUMP

main44443-60010iFJ4#..CND197909-198007

main44443-60020iFJ40,55..USA197901-198007

9011610006

main90116-10006

9011908079

main90119-08079

9111251025

main91112-51025

9161140816

main91611-40816

9165161022

main91651-61022

9411041000

main94110-41000

9451201000

main94512-01000

16 parts on this diagram · 3 diagrams in section
