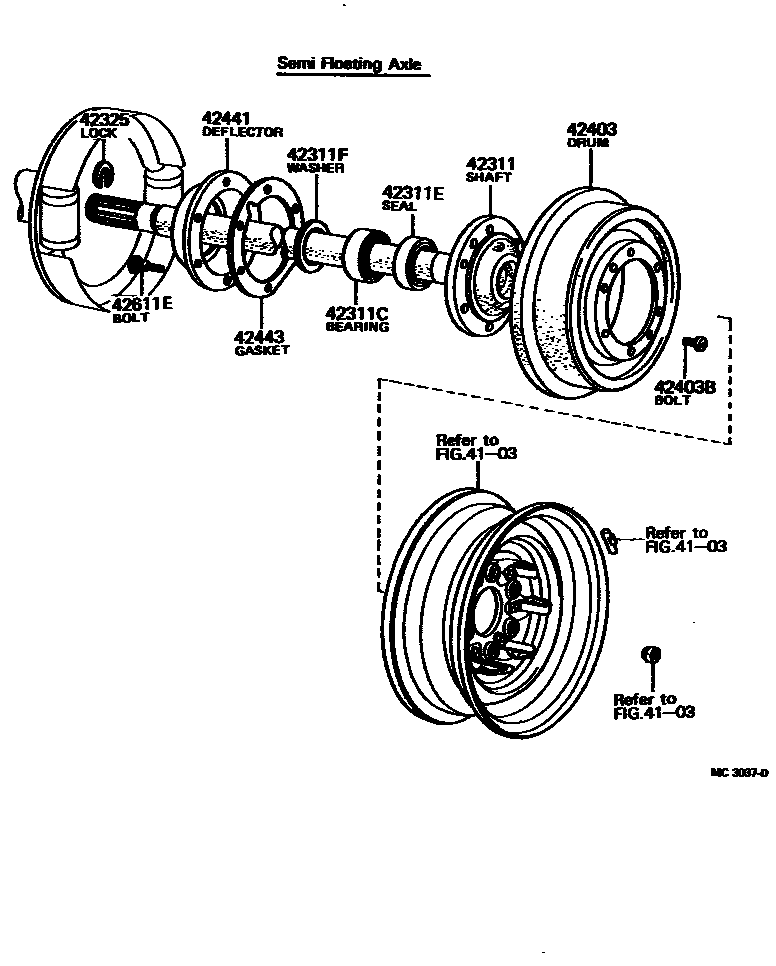

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311SHAFT, REAR AXLE

main42311-60021iFJ40,55196903-197308

FOR RH.

main42311-60022iBJ40,FJ40,55197308-198007

FOR RH.

main42311-60051iBJ40,FJ4#,55197509-197901

RH.FOR FULL FLOATING AXLE

main42311-60052iBJ40,FJ4#,55197901-198007

RH.FOR FULL FLOATING AXLE

main42312-60011iFJ40,55196903-197308

FOR LH.

main42312-60012iBJ40,FJ40,55197308-198007

FOR LH.

main42312-60041iBJ40,FJ4#,55197509-197901

LH.FOR FULL FLOATING AXLE

main42312-60042iBJ40,FJ4#,55197901-198007

LH.FOR FULL FLOATING AXLE

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47005×2iFJ40,55196903-197308

main90365-47013×2iBJ40,FJ40,55197308-198007

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iBJ40,FJ4#,55197901-198007

FULL FLOATING AXLE

main90311-38146×2iBJ40,FJ4#,55197509-197901

FULL FLOATING AXLE

main90311-47001×2iBJ40,FJ40,55197411-198007

main90311-47029×2iFJ40,55196903-197308

main90311-47048×2iFJ40,55197308-197411

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-48132×2iFJ40,55196903-197308

42325LOCK, REAR AXLE SHAFT

main42325-55010×2iBJ40,FJ40,55196903-198007

42403DRUM SUB-ASSY, REAR BRAKE

main43501-60010×2iFJ40,55196903-197204

main43512-60020×2iFJ45197606-198007

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007×2iBJ40,FJ40,55196903-198007

main90113-10035×2iFJ45197606-198007

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010×2iBJ40,FJ40,55196903-198007

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020×2iBJ40,FJ40,55196903-198007

main43436-60011×2iBJ40,FJ4#,55197509-198007

FOR FULL FLOATING AXLE

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02014×12iBJ40,FJ40,55196903-198007

main90942-02034×12iFJ45197606-198007

11 parts on this diagram · 3 diagrams in section
