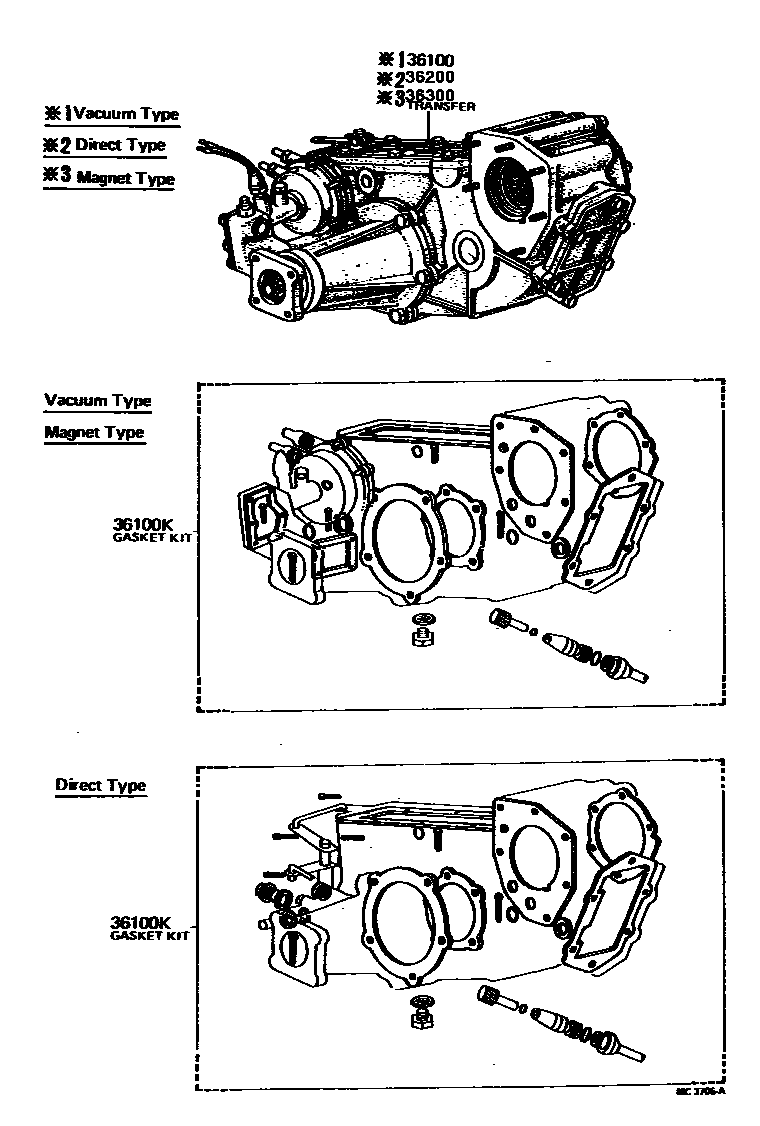

TRANSFER ASSEMBLY & GASKET KIT

36100TRANSFER ASSY

main36100-60914iFJ55196903-197109

SMG.R=16:6,17:6

main36100-60920iFJ40196903-197007

SMG.R=17:6

main36100-60931iFJ40197007-197109

SMG.R=17:6

main36100-60939iFJ40197109-197209

SMG.R=16:6,17:6

main36100-60940iFJ40197109-197209

SMG.R=18:6

main36100-60941iFJ55197109-197209

SMG.R=17:6

36100KGASKET KIT, TRANSFER OVERHAUL

main04362-60021iFJ4#,55196903-197709

FOR VACUUM OR MAGNET TYPE

main04362-60030iBJ40,FJ4#,55196903-198007

FOR DIRECT TYPE

36200TRANSFER, W/O DRIVE GEAR (DIRECT TYPE)

main36200-60915iFJ55196903-197109

SMG.R=16:6,17:6,FOR 3-SPEEDT/M

main36200-60922iFJ40196903-197007

SMG.R=17:6,FOR 3-SPEED T/M

main36200-60933iFJ40197007-197109

SMG.R=17:6,FOR 3-SPEED T/M

main36200-60939iFJ40197109-197401

SMG.R=16:6,17:6,FOR 3-T/M

main36200-60940iFJ40197109-197401

SMG.R=18:6,FOR 3-SPEED T/M

main36200-60941iFJ55197109-197401

SMG.R=17:6,FOR 3-SPEED T/M

main36200-60956iFJ40,55197309-197401

SMG.R=17:6,FOR 4-SPEED T/M

main36200-60957iFJ40197401-197403

SMG.R=18:6,FOR 3-SPEED T/M

main36200-60958iFJ40,55197401-197403

SMG.R=16:6,17:6,FOR 3-SPEEDT/M

main36200-60959iFJ40,55197403-197504

SMG.R=18:6,FOR 4-SPEED T/M

main36200-60960iFJ40,55197401-197403

SMG.R=17:6,FOR 4-SPEED T/M

main36200-60964iFJ4#,55..CND197602-197801

SMG.R=16:6

main36200-60965iFJ40,55197504-197801

SMG.R=18:6

main36200-60966iFJ40,55197403-197501

SMG.R=18:6,FOR 3-SPEED T/M

main36200-60968iFJ4#,55197901-198007

SMG.R=16:6

main36200-60969iBJ40,FJ40,55..CND197901-198007

SMG.R=18:6

36300TRANSFER, W/O DRIVE GEAR (MAGNET TYPE)

main36300-60905iFJ40197209-197401

SMG.R=18:6,FOR 3-SPEED T/M

main36300-60908iFJ55197209-197401

SMG.R=17:6,FOR 3-SPEED T/M

main36300-60922iFJ40,55197309-197401

SMG.R=17:6,FOR 4-SPEED T/M

main36300-60923iFJ40197401-197403

SMG.R=18:6,FOR 3-SPEED T/M

main36300-60924iFJ55197401-197403

SMG.R=16:6,17:6,FOR 3-T/M

main36300-60925iFJ40,55197403-197504

SMG.R=18:6,FOR 4-SPEED T/M

main36300-60926iFJ40,55197401-197403

SMG.R=17:6,FOR 4-SPEED T/M

main36300-60927iFJ4#,55..CND197602-197709

SMG.R=16:6

main36300-60928iFJ40,55197504-197709

SMG.R=18:6,FOR 4-SPEED T/M

4 parts on this diagram · 1 diagram in section
