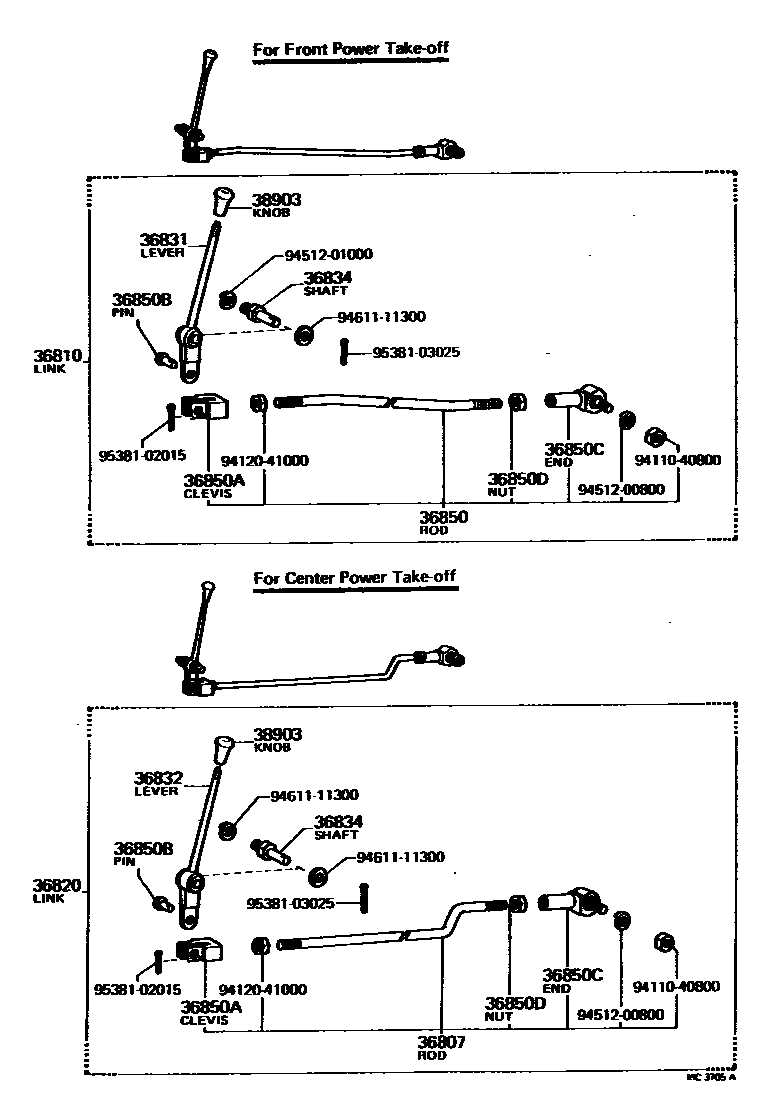

POWER TAKE-OFF LEVER & LINK

36807ROD SUB-ASSY, POWER TAKE-OFF SHIFT

main36807-60010iFJ40196903-197501

main36860-60020iFJ4#,55197501-197608

36810LINK ASSY, FRONT POWER TAKE-OFF SHIFT

main36810-60010iFJ40196903-197209

FOR 3-SPEED TRANSMISSION

main36810-60020iFJ55196903-197501

FOR 3-SPEED TRANSMISSION

main36810-60030iFJ4#,55197309-197608

FOR 4-SPEED TRANSMISSION

main36810-60040iFJ40197209-197501

FOR 3-SPEED TRANSMISSION

36820LINK ASSY, CENTER POWER TAKE-OFF SHIFT

main36820-60010iFJ40196903-197501

main36820-60030iFJ4#,55197501-197608

36831LEVER, POWER TAKE-OFF SHIFT

main36831-60030iFJ55197201-197608

main36831-60040iFJ40197209-197501

FOR 3-SPEED TRANSMISSION

main36831-60051iFJ40196903-197209

36832LEVER, CENTER POWER TAKE-OFF SHIFT

main36831-60020iFJ40196903-197501

main36831-60030iFJ4#,55197501-197608

36834SHAFT, LEVER SUPPORT

main36834-60010iFJ4#,55196903-197608

36850ROD ASSY, POWER TAKE-OFF SHIFT

main36850-60010iFJ40196903-197501

FOR 3-SPEED TRANSMISSION

main36850-60020iFJ55196903-197501

FOR 3-SPEED TRANSMISSION

main36850-60030iFJ4#,55197309-197608

FOR 4-SPEED TRANSMISSION

36850ACLEVIS (FOR POWER TAKE-OFF SHIFT LEVER)

main33724-60010×2iFJ4#,55196903-197608

36850BPIN (FOR POWER TAKE-OFF SHIFT LEVER)

main90240-08028×2iFJ4#,55196903-197608

36850CEND ASSY, POWER TAKE-OFF SHIFT ROD

main33740-35011iFJ4#,55197501-197608

main33750-35011×2iFJ40196903-197501

LH.SCREW,FOR 3-SPEED T/M

36850DNUT (FOR POWER TAKE-OFF SHIFT ROD)

main90170-08052×2iFJ40196903-197501

LH.SCREW,FOR 3-SPEED T/M

main94120-40800iFJ4#,55197501-197608

38903KNOB SUB-ASSY, CONTROL

main33504-22010×2iFJ4#,55197109-197608

main36303-60010iFJ40,55196903-197109

main36303-60060iFJ4#,55197608-197608

FOR CENTER POWER TAKE-OFF

9411040800

main94110-40800

9412041000

main94120-41000

9451200800

main94512-00800

9451201000

main94512-01000

9461111300

main94611-11300

9538102015

main95381-02015

9538103025

main95381-03025

19 parts on this diagram · 1 diagram in section
