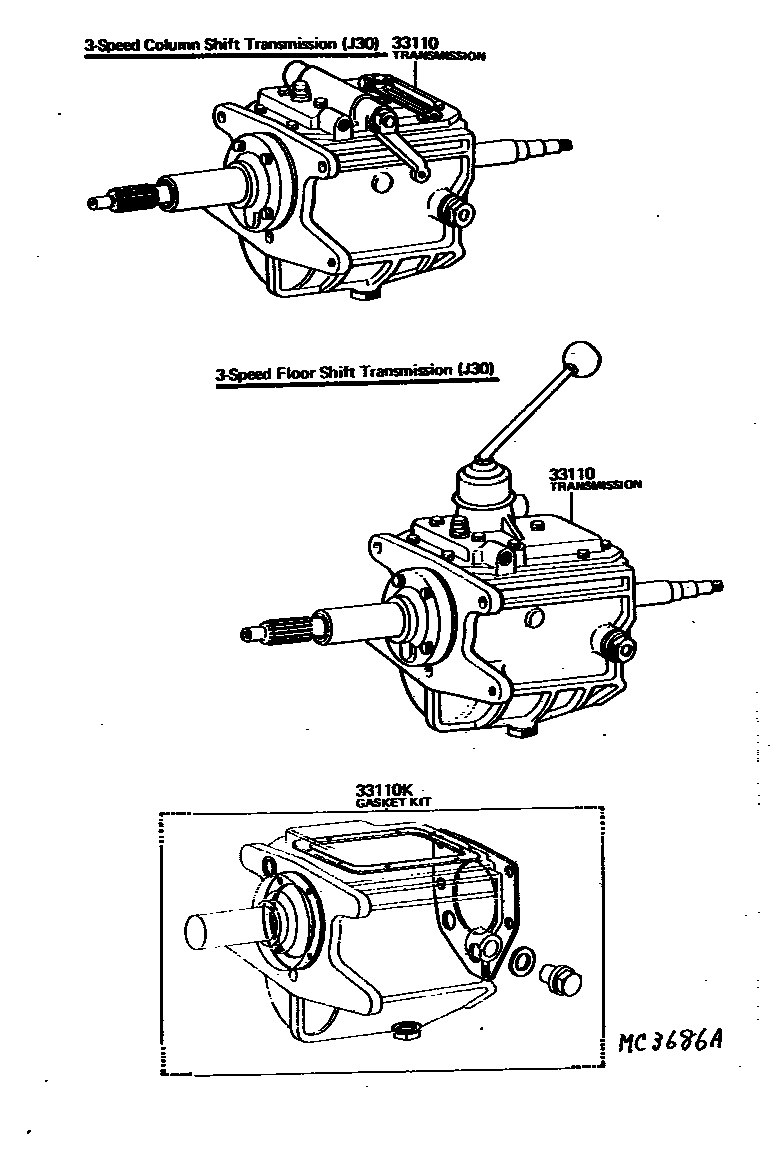

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

33110TRANSMISSION ASSY, MANUAL

main33030-60900iBJ40197901-198007

main33110-60030iFJ40196903-197209

3-SPEED COLUMN SHIFT T/M

main33110-60060iFJ55196903-197209

3-SPEED COLUMN SHIFT T/M

main33120-60020iFJ40196903-197209

3-SPEED FLOOR SHIFT T/M

main33120-60030iFJ55196903-197209

3-SPEED FLOOR SHIFT T/M

main33120-60060iFJ40197209-197501

3-SPEED TRANSMISSION

main33120-60100iFJ55197209-197501

3-SPEED TRANSMISSION

main33120-60130iFJ40..USA197608-197709

CAL. & H.A.

main33120-60140iFJ55..CND197602-197709

4-SPEED TRANSMISSION

main33120-60220iFJ40..USA197608-197709

4-SPEED TRANSMISSION

main33120-60230iFJ55..USA197608-197709

4-SPEED TRANSMISSION

main33120-60261iBJ40197803-197901

main33120-60903iFJ4#,55..CND197709-197901

main33120-60904iFJ40,55..USA197709-197901

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-60020iFJ40,55196903-197501

FOR 3-SPEED TRANSMISSION

main04331-60031iFJ40,55197309-197604

FOR 4-SPEED TRANSMISSION

main04331-60032iBJ40,FJ4#,55197604-198007

FOR 4-SPEED TRANSMISSION

2 parts on this diagram · 2 diagrams in section
