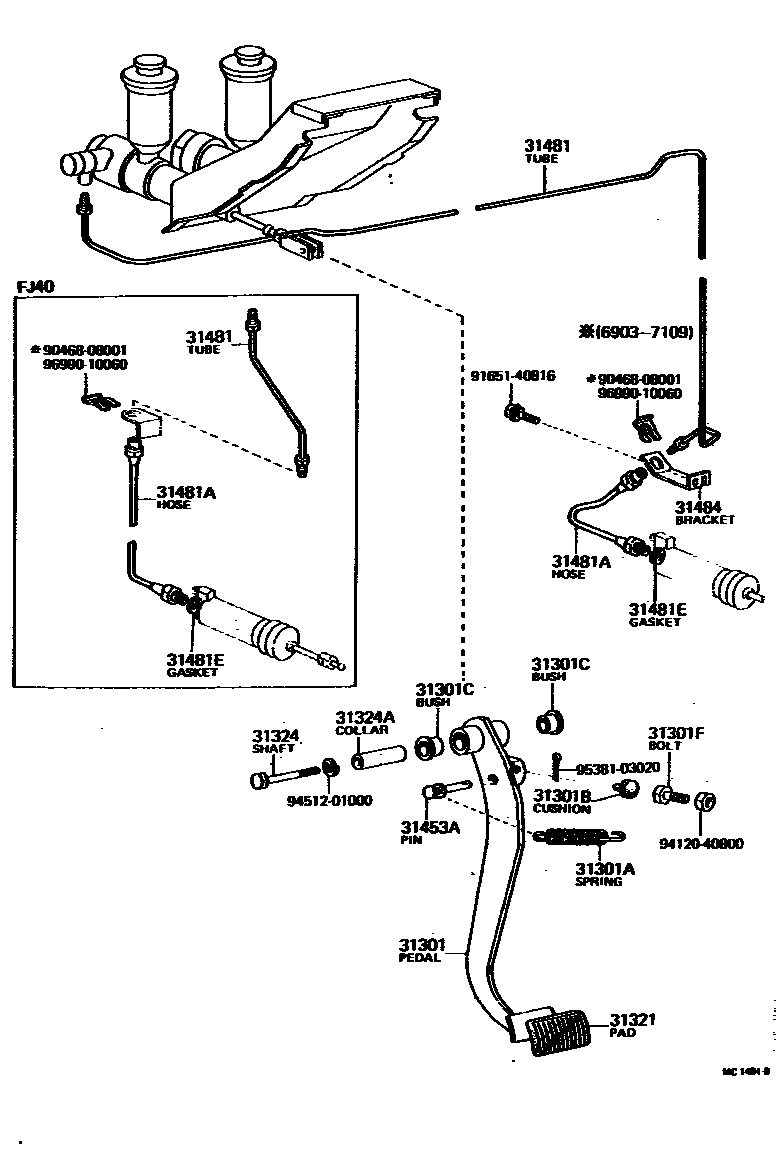

Toyota LAND CRUISER — CLUTCH PEDAL & FLEXIBLE HOSE
31301PEDAL SUB-ASSY, CLUTCH
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31324ACOLLAR, CLUTCH PEDAL SHAFT
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481AHOSE, CLUTCH, NO.1
31481EGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
9046808001
9165140816
9412040800
9451201000
9538103020
9699010060
19 parts on this diagram · 4 diagrams in section
CLUTCH PEDAL & FLEXIBLE HOSE for Toyota LAND CRUISER
This section contains 26 genuine Toyota parts for the CLUTCH PEDAL & FLEXIBLE HOSE system of the Toyota LAND CRUISER. Key components include: PEDAL SUB-ASSY, CLUTCH, SPRING(FOR CLUTCH PEDAL), CUSHION, NO.1(FOR CLUTCH PEDAL), BUSH(FOR CLUTCH PEDAL), BOLT(FOR CLUTCH PEDAL STOPPER).
