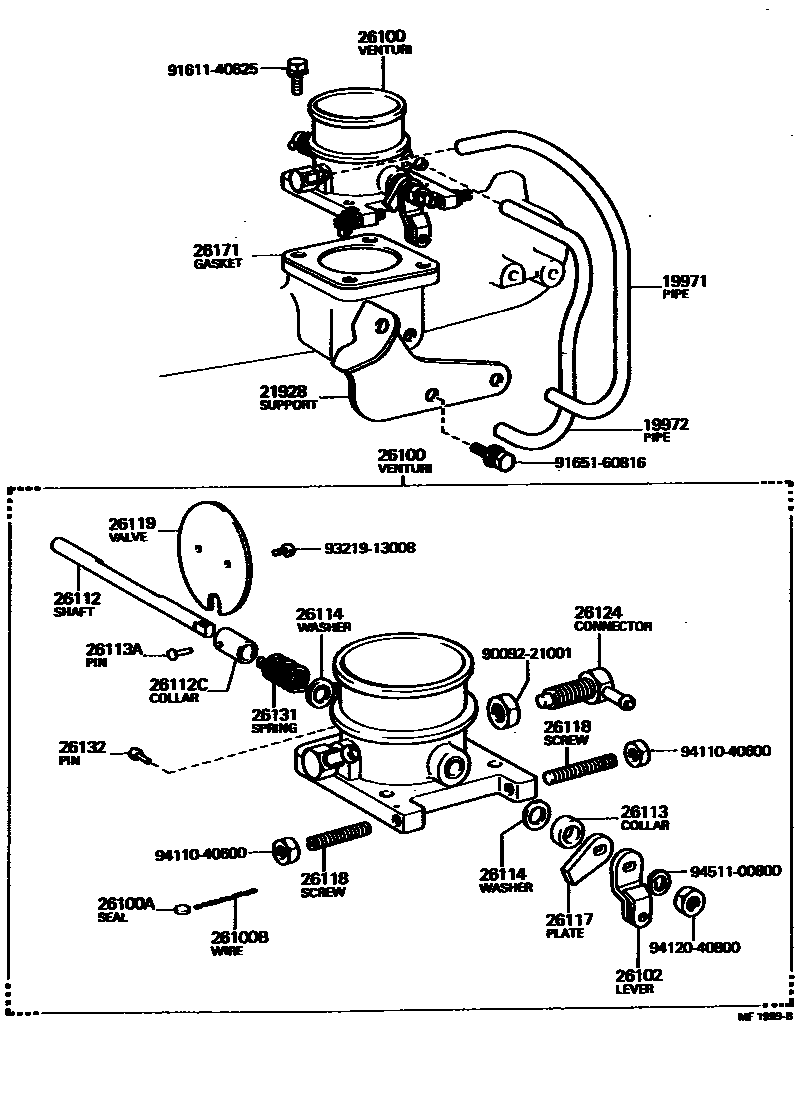

VENTURI
19971PIPE, VACUUM(FOR VENTURI)
19972PIPE, AIR CLEANER VENT
21928SUPPORT, THROTTLE WIRE
26100VENTURI ASSY
26100ASEAL, LEAD
26100BWIRE, SEAL
26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
26112SHAFT, VENTURI THROTTLE VALVE
26112CCOLLAR, ADJUSTING
26113COLLAR, THROTTLE VALVE SHAFT
26113APIN, THROTTLE VALVE SHAFT
26114WASHER, THROTTLE VALVE SHAFT ADJUSTING
T=0.1,T=0.1
T=0.2,T=0.2
T=0.5,T=0.5
26117PLATE, THROTTLE VALVE SHAFT STOP
26118SCREW, STOP PLATE ADJUSTING
26119VALVE, VENTURI THROTTLE
26124CONNECTOR, VENTURI PIPE
26131SPRING, RETURN
26132PIN
26171GASKET, VENTURI
9009221001
main90092-21001
9161140625
main91611-40625
9165160816
main91651-60816
9321913008
main93219-13008
9411040600
main94110-40600
9412040800
main94120-40800
9451100800
main94511-00800
26 parts on this diagram · 1 diagram in section
