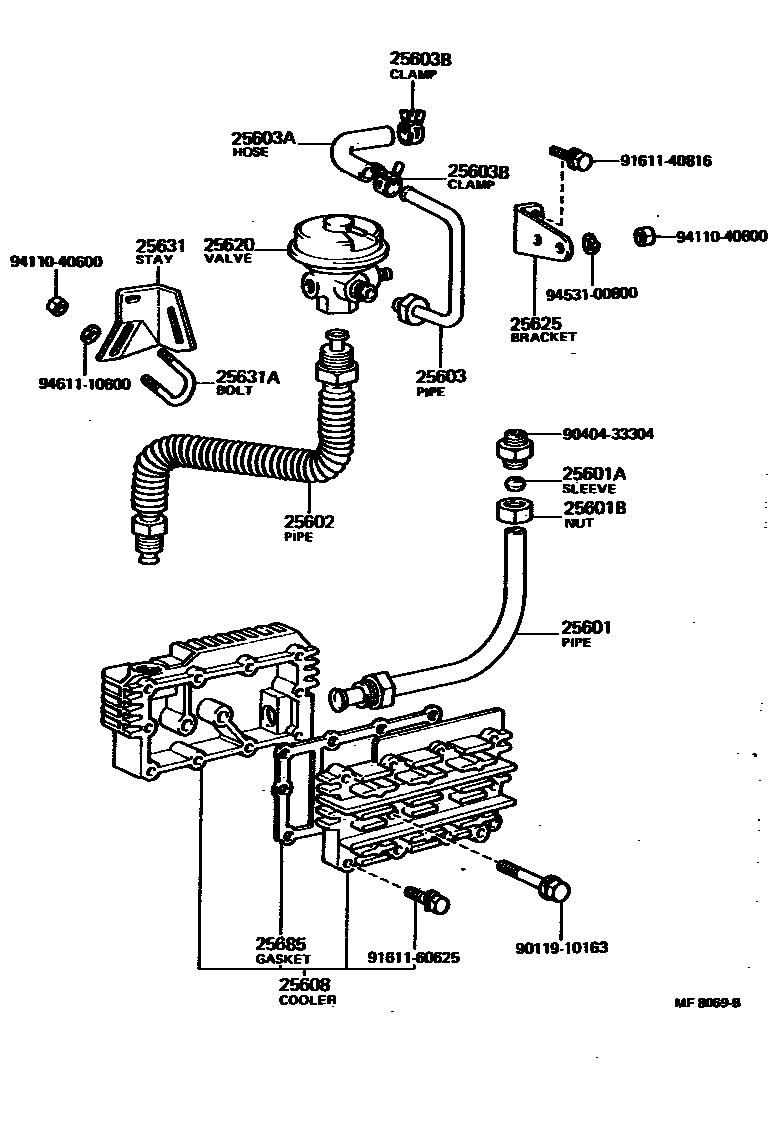

Toyota LAND CRUISER — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25603PIPE SUB-ASSY, EGR, NO.3
25603AHOSE(FOR EGR PIPE, NO.3)
25603BCLIP(FOR EGR PIPE, NO.3)
25608COOLER SUB-ASSY, EGR
25620VALVE ASSY, EGR
25631ABOLT(FOR EGR PIPE CLAMP)
25685GASKET, EGR COOLER, NO.1
9011910163
9040433304
9161140816
9161160625
9411040600
9411040800
9453100800
9461110600
21 parts on this diagram · 5 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota LAND CRUISER
This section contains 49 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota LAND CRUISER. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, BUSH(FOR EGR PIPE, NO.1), SPACER(FOR EGR PIPE, NO.1).
