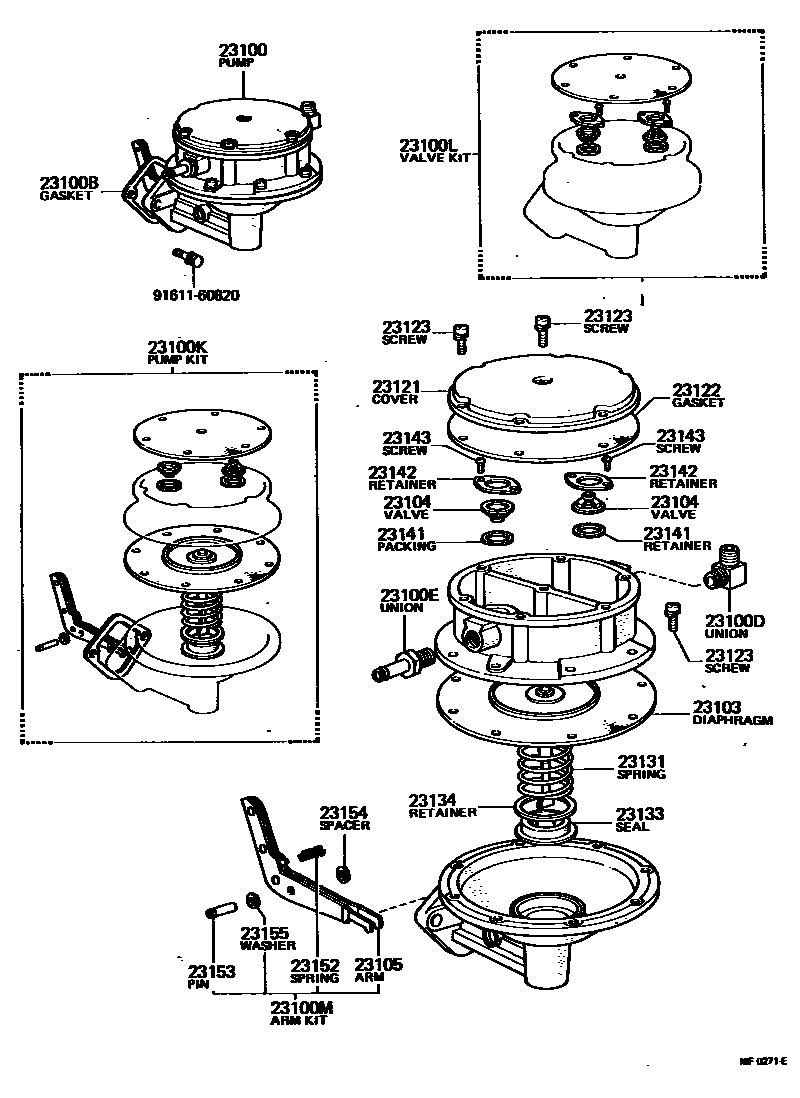

FUEL PUMP & PIPE

0001 1 0002 1 0003 1 0005 1

23100PUMP ASSY, FUEL

main23100-60050iF..FJ40,55196903-197004

main23100-60051iF..FJ40,55197004-197209

main23100-60060iF..FJ40,55197209-197212

main23100-60061iF..FJ40,55197212-197309

main23100-60062iF..FJ40,55197309-197501

main23100-60071iF..FJ55197010-197209

W/COOLER

main23100-60072iF..FJ55197209-197212

W/COOLER

main23100-60073iF..FJ55197212-197309

W/COOLER

main23100-60074iF..FJ55197309-197501

W/COOLER

main23100-61010i2F..FJ4#,55197501-197607

main23100-61011i2F..FJ4#,55197607-197709

main23100-61030i2F..FJ4#,55..CND197806-197904

main23100-61040i2F..FJ40,55..USA197806-197901

main23100-61050i2F..FJ40,55..USA197901-197904

23100BGASKET, FUEL PUMP

main90923-05003iF..FJ40196903-197203

main90923-05005iF..FJ55196903-197203

main90923-06005i2F..FJ40,55..USA197901-197904

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-60030iF,2F..FJ4#,55196903-197901

main26913-60071iF..FJ55197010-197501

W/COOLER

23100EUNION, NIPPLE(FOR FUEL INLET)

main23116-61030i2F..FJ4#,55..CND197901-197904

main90404-13105iF..FJ40,55196903-197209

main90404-51244iF,2F..FJ4#,55197309-197709

main90404-51266iF..FJ40,55197209-197309

23100KPUMP KIT, FUEL

main04231-60070iF..FJ40,55196903-197212

main04231-60071iF..FJ40,55197212-197501

main04231-61010i2F..FJ4#,55197501-197901

23100LVALVE KIT, FUEL PUMP

main04232-60061iF..FJ40,55196903-197212

23100MARM KIT, FUEL PUMP ROCKER

main04233-60062iF..FJ40,55196903-197212

23103DIAPHRAGM SUB-ASSY

main23103-60021iF..FJ40,55196903-197212

main23103-60050iF,2F..FJ4#,55197212-197901

23104VALVE SUB-ASSY

main23104-60010×2iF..FJ40,55196903-197309

23105ARM SUB-ASSY, ROCKER

main23105-60020iF..FJ40,55196903-197212

23121COVER, FUEL PUMP

main23121-60020iF..FJ40,55196903-197212

main23121-60050iF,2F..FJ4#,55197212-197901

23122GASKET, FUEL PUMP COVER

main23122-60010iF..FJ40,55196903-197501

main23122-61010i2F..FJ4#,55197501-197901

23123SCREW, COVER SET, NO.1

main23123-60021×15iF..FJ40,55196903-196907

main23123-60022×15iF..FJ40,55196907-197309

main93319-15014×15iF,2F..FJ4#,55197309-197901

23131SPRING, DIAPHRAGM(FOR FUEL PUMP)

main23131-60010iF,2F..FJ4#,55196903-197901

23133PACKING, OIL SEAL(FOR FUEL PUMP)

main23133-60050iF,2F..FJ4#,55196903-197901

23134RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

main23134-40011iF,2F..FJ4#,55196903-197901

23141PACKING, VALVE

main23141-60010×2iF..FJ40,55196903-197309

23142RETAINER, VALVE

main23142-60010×2iF..FJ40,55196903-197309

23143SCREW, VALVE RETAINER SET

main23143-60021×4iF..FJ40,55196903-197309

23152SPRING, ROCKER ARM

main23152-60020iF,2F..FJ4#,55196903-197901

23153PIN, ROCKER ARM

main23153-60020iF..FJ40,55196903-197212

23154SPACER, ROCKER ARM

main23154-60010×2iF..FJ40,55196903-197212

23155WASHER, ROCKER ARM PIN

main23155-60020iF..FJ40,55196903-197212

9161160820

main91611-60820

24 parts on this diagram · 4 diagrams in section
