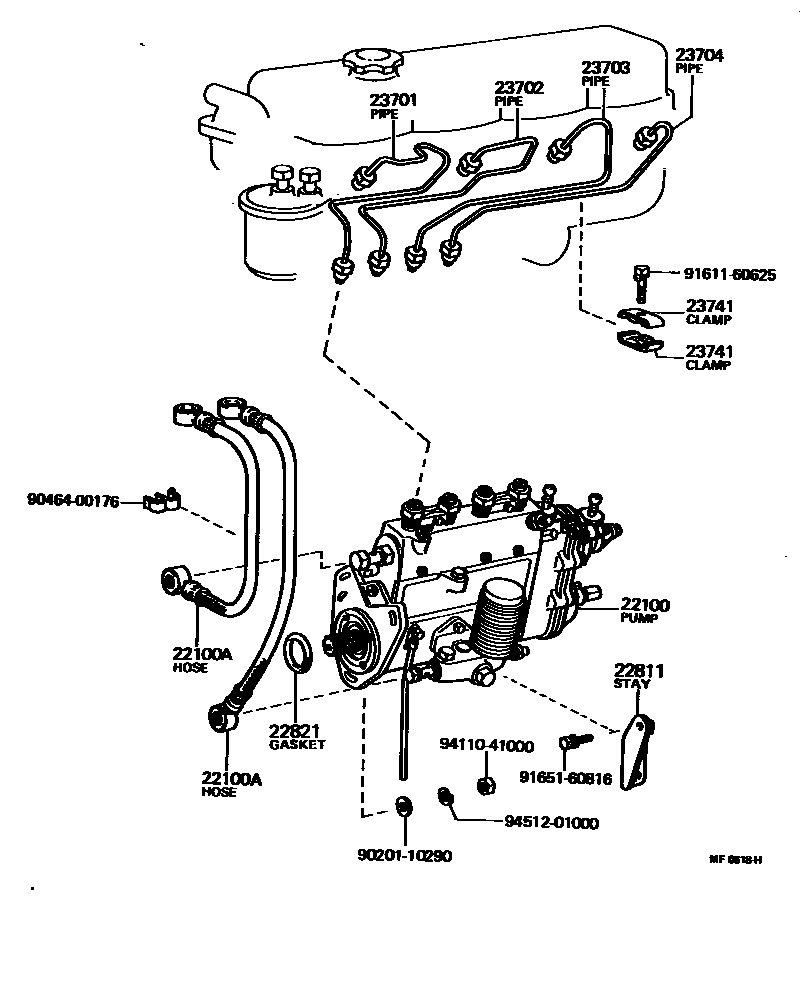

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56171iB..BJ40197803-198007

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56030iB..BJ40197803-198007

L=370

main23802-56030iB..BJ40197803-198007

L=275

22811STAY, INJECTION PUMP, NO.1

main22811-56010iB..BJ40197803-198007

22821GASKET, INJECTION PUMP

main90301-77001iB..BJ40197811-198007

main90301-78177iB..BJ40197803-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56020iB..BJ40197803-198007

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56020iB..BJ40197803-198007

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020iB..BJ40197803-198007

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020iB..BJ40197803-198007

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iB..BJ40197803-198007

9020110290

main90201-10290

9046400176

main90464-00176

9161160625

main91611-60625

9165160816

main91651-60816

9411041000

main94110-41000

9451201000

main94512-01000

15 parts on this diagram · 1 diagram in section
