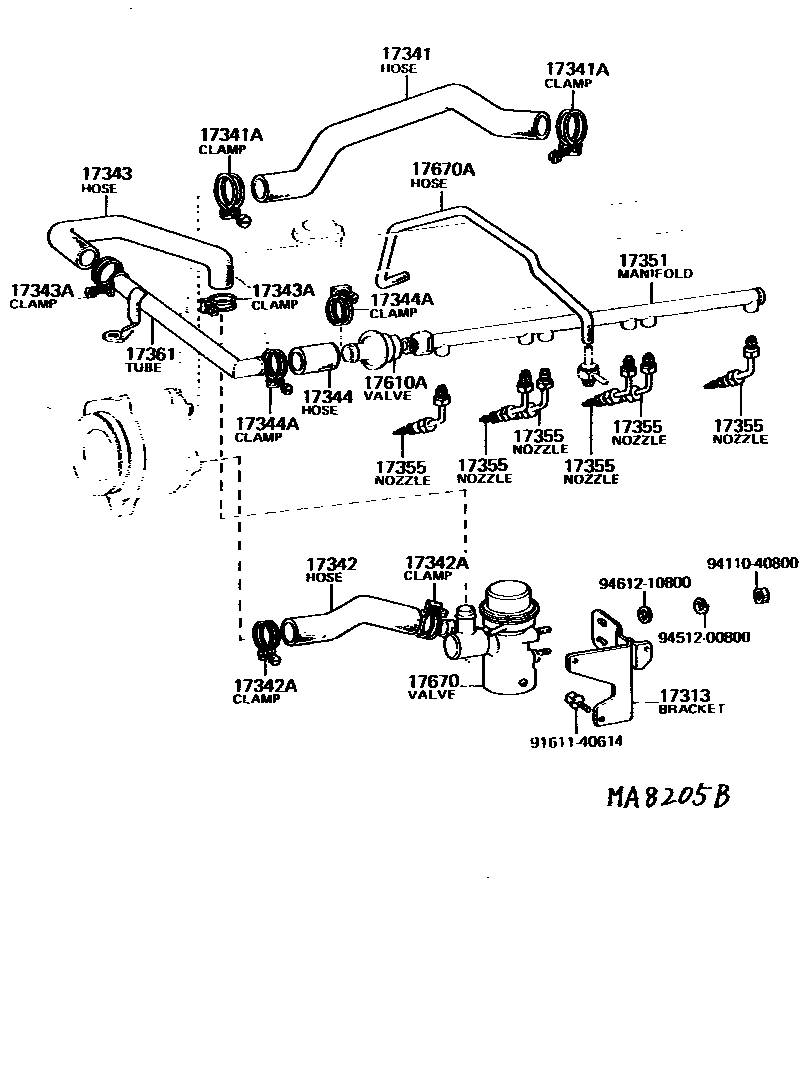

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

17313BRACKET, AIR BY-PASS VALVE

main17313-60010iF..FJ40,55197209-197309

main17313-60011iF..FJ40,55197309-197501

main17313-61010i2F..FJ40197501-197602

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-60011iF..FJ40,55197209-197501

main17341-61010i2F..FJ40,55197501-197602

main17341-61020i2F..FJ40,55..USA197901-198007

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main96112-10380×2iF,2F..FJ40,55197209-197602

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-60011iF..FJ40,55197209-197309

main17342-60012iF..FJ40,55197309-197501

main17342-60020iF..FJ40,55197309-197501

W/EGR CALIFORNIA SPEC.

main17342-61010i2F..FJ40,55197501-197602

main17342-61020i2F..FJ40,55..USA197901-198007

main17342-61030i2F..FJ40,55..USA197901-198007

CALIFORNIA SPEC.

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-28003×2i2F..FJ40,55..USA197901-198007

main96112-10330×2iF,2F..FJ40,55197209-197602

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-60011iF..FJ40,55197209-197309

main17343-61010i2F..FJ40,55..USA197602-197901

main17343-61020i2F..FJ40,55..USA197901-198007

main90445-33001iF..FJ40,55197309-197501

W/EGR CALIFORNIA SPEC.

main90445-33002iF..FJ40,55197309-197501

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90467-28003×2i2F..FJ40,55..USA197901-198007

main96112-10330×2i2F..FJ40,55..USA197602-197901

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-60010iF..FJ40,55197209-197501

main17344-61010i2F..FJ40,55..USA197901-198007

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-28003×2i2F..FJ40,55..USA197901-198007

main96112-10330×2iF..FJ40,55197209-197501

17351MANIFOLD, AIR INJECTION

main17306-61010i2F..FJ40,55..USA197602-197901

main17306-61020i2F..FJ40,55..USA197901-198007

main17351-60011iF..FJ40,55197209-197501

main17351-60020iF..FJ40,55197309-197501

W/EGR CALIFORNIA SPEC.

17355NOZZLE, AIR INJECTION

main17301-60011×6iF..FJ40,55197209-197501

17361TUBE, AIR

main17361-60011iF..FJ40,55197209-197501

main17361-60020iF..FJ40,55197309-197501

W/EGR CALIFORNIA SPEC.

17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)

main90917-10003i2F..FJ40,55..USA197602-197901

main90917-10057i2F..FJ40,55..USA197901-198007

17670VALVE ASSY, AIR BY-PASS

main17670-60010iF..FJ40,55197209-197309

main17670-60011iF..FJ40,55197309-197501

main17670-61010i2F..FJ40,55197501-197602

17670AHOSE(FOR CARBURETOR HEAT INSULATOR TO AIR BY-PASS VALVE)

main90445-07174iF..FJ40,55197309-197501

main90445-07280iF..FJ40,55197209-197309

9161140614

main91611-40614

9411040800

main94110-40800

9451200800

main94512-00800

9461210800

main94612-10800

19 parts on this diagram · 5 diagrams in section
