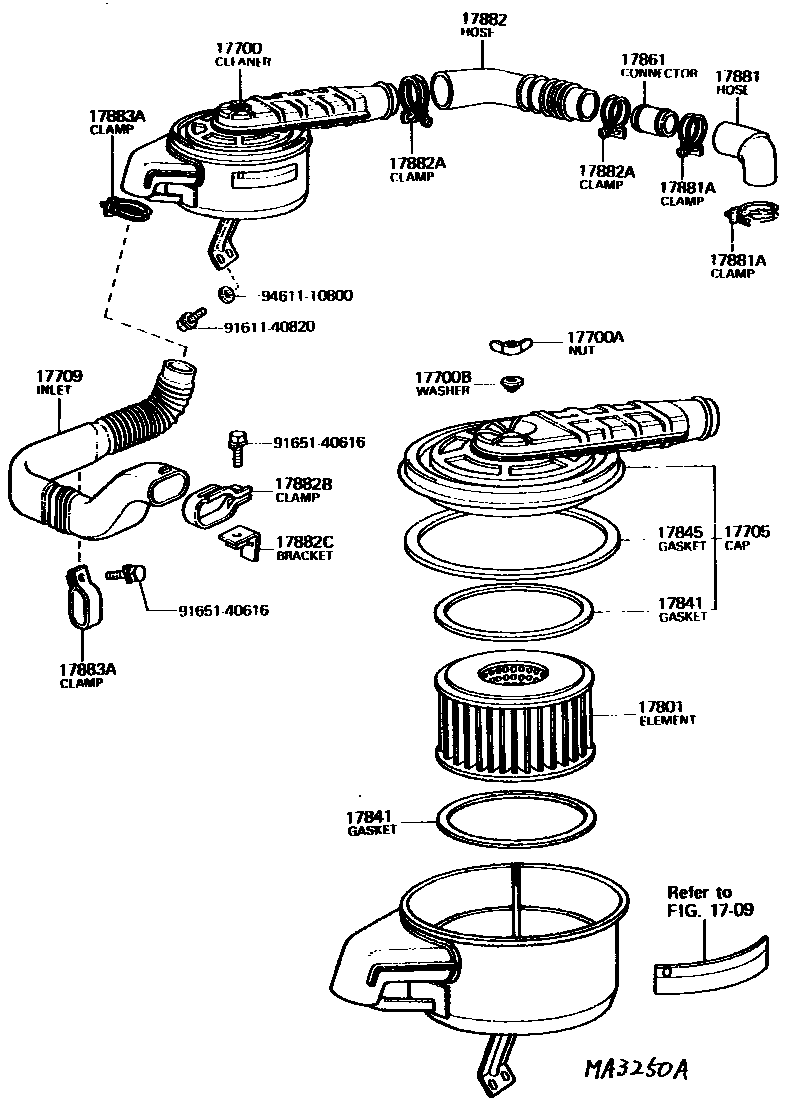

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1709

17700CLEANER ASSY, AIR

main17700-56061iB..BJ40197803-197806

main17700-56220iB..BJ40197803-197806

CYCLONE

main17700-56240iB..BJ40197806-197905

main17700-56241iB..BJ40197905-198007

sub17700-58010

sub17791-56170

main17700-56250iB..BJ40197806-197905

CYCLONE

main17700-56251iB..BJ40197905-198007

CYCLONE

sub17700-58030

sub17791-56170

main17700-60302iF..FJ40,55196909-197109

main17700-60303iF..FJ40,55197109-197209

main17700-60304iF..FJ40,55197209-197302

main17700-60305iF..FJ40,55197302-197309

main17700-60370iF..FJ40,55197309-197501

main17700-60390iF..FJ40,55197310-197501

L/HOT AIR INTAKE

main17700-61020i2F..FJ4#,55197501-197709

main17700-61021i2F..FJ4#,55197709-197901

main17700-61022i2F..FJ4#,55197901-198007

main17700-61030i2F..FJ40,55197501-197602

L/HOT AIR INTAKE

main17700-69015iF..FJ40,55196903-196909

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003×2i2F..FJ4#,55197807-198007

main90175-06026×2i2F..FJ4#,55197501-197807

main94270-00800iF..FJ40,55196903-197305

main94271-00800iB..BJ40197803-198007

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08003iF..FJ40,55196903-197501

main90210-09026×2i2F..FJ4#,55197501-197807

17705CAP SUB-ASSY, AIR CLEANER

main17705-56071iB..BJ40197803-198007

main17705-60151iF..FJ40,55196903-196909

main17705-60152iF..FJ40,55196909-197109

main17705-60153iF..FJ40,55197109-197209

main17705-60154iF..FJ40,55197209-197302

main17705-60155iF..FJ40,55197302-197309

main17705-60156iF..FJ40,55197309-197501

main17705-60240iF..FJ40,55197309-197501

W/EGR CALIFORNIA SPEC.

main17705-60260iF..FJ40,55197310-197501

L/HOT AIR INTAKE

main17705-61020i2F..FJ4#,55197501-197709

main17705-61021i2F..FJ4#,55197709-197901

main17705-61022i2F..FJ4#,55197901-198007

main17705-61030i2F..FJ40,55197501-197602

L/HOT AIR INTAKE

main17705-61031i2F..FJ40,55..USA197709-197901

L/HOT AIR INTAKE

17709INLET SUB-ASSY, AIR CLEANER

main17709-60010iF..FJ40,55197309-197501

main17709-90301iB..BJ40197803-198007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-60040iF..FJ40,55196903-197501

main17801-61010i2F..FJ4#,55197501-198007

main17801-66020iB..BJ40197803-198007

sub17801-68020

17841GASKET, FILTER ELEMENT

main17841-24020×2iB..BJ40197803-198007

sub17841-68010

main17841-60011×2iF..FJ40,55196903-197501

sub17841-68010

main17841-61010×2i2F..FJ4#,55197501-198007

sub17841-61011

17845GASKET, AIR CLEANER CAP

main17845-56040iB..BJ40197803-198007

sub17845-61011

main17845-60040iF..FJ40,55196903-197501

sub17845-42010

main17845-61010i2F..FJ4#,55197501-198007

sub17845-61011

17861CONNECTOR, INTAKE AIR

main17885-56010iB..BJ40197803-198007

17881HOSE, AIR CLEANER, NO.1

main17881-56030iB..BJ40197803-198007

main17881-60020iF..FJ40,55197309-197501

main17881-61010i2F..FJ40,55..USA197602-197901

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10600×2iF..FJ40,55197309-197501

main96111-10650×2i2F..FJ40,55197501-197602

main96111-10670×2iB..BJ40197803-198007

ID=67

17882HOSE, AIR CLEANER, NO.2

main17882-56020iB..BJ40197803-198007

main17882-61010i2F..FJ40,55197501-197602

main17882-61011i2F..FJ40,55..USA197901-198007

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01007i2F..FJ40,55..USA197901-198007

INLET SIDE

main96111-10670iB..BJ40197803-198007

ID=67

main96111-10750iB..BJ40197803-198007

ID=75

main96111-10800×2i2F..FJ40,55197501-197602

17882BCLAMP(FOR COOL AIR INTAKE)

main17782-90300iB..BJ40197803-198007

17882CBRACKET(FOR COOL AIR INTAKE)

main17781-90300iB..BJ40197803-198007

17883HOSE, AIR CLEANER, NO.3

main17881-61020i2F..FJ40,55..USA197602-197709

CALIFORNIA SPEC.

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main17783-90300iB..BJ40197803-198007

INLET SIDE

main96111-10690iB..BJ40197803-198007

AIR CLEANER SIDE

main96111-10800i2F..FJ40,55197601-197602

CALIFORNIA SPEC.

9161140820

main91611-40820

9165140616

main91651-40616

9461110800

main94611-10800

21 parts on this diagram · 6 diagrams in section
