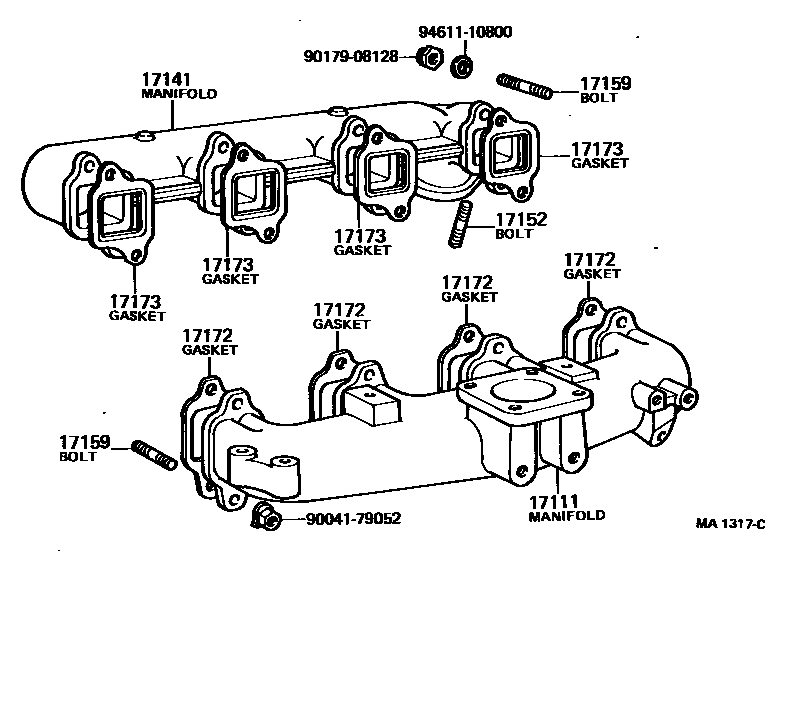

MANIFOLD
17111MANIFOLD, INTAKE
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=42,S=16&23
L=32.5,S=15&12
L=30,S=10&16
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=33,S=9&9
L=39,S=11&13
L=37,S=20&13
L=40,S=23&13
L=33,S=10&16
17172GASKET, MANIFOLD TO CYLINDER HEAD
CALIFORNIA SPEC.
CALIFORNIA SPEC.
17173GASKET, EXHAUST MANIFOLD TO HEAD
9004179052
main90041-79052
9017908128
main90179-08128
9461110800
main94611-10800
9 parts on this diagram · 8 diagrams in section
