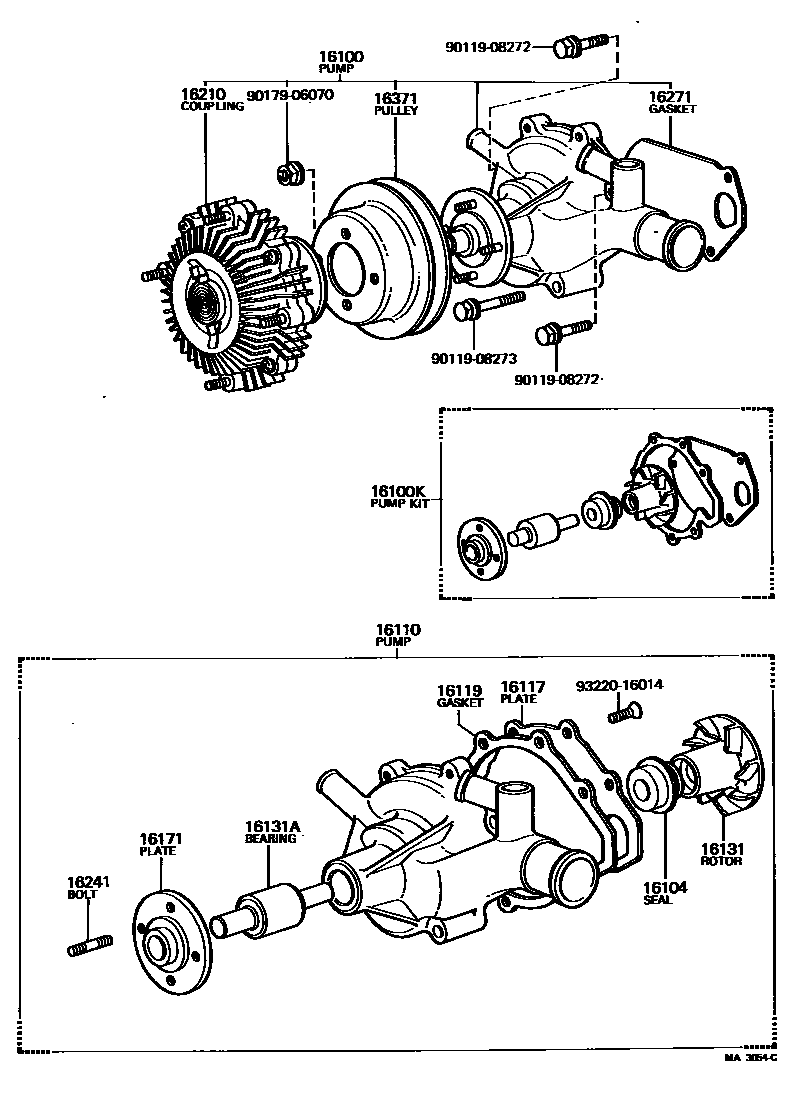

WATER PUMP

0001 1 0002 1 0003 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-59035iB..BJ40197803-198007

main16100-60080iF..FJ40,55196903-197501

main16100-61011i2F..FJ40,55197501-197508

main16100-61012i2F..FJ45,55;2F..FJ40..CND197608-197901

main16100-61041i2F..FJ55..USA197608-197901

W/ OIL COOLER

main16100-61070i2F..FJ40..USA197608-197901

main16100-61071i2F..FJ40,55197901-198007

main16100-61080i2F..FJ40..USA197608-197901

W/OIL COOLER

main16100-61081i2F..FJ40,55..USA197901-198007

W/OIL COOLER

main16100-61120i2F..FJ40,55..USA197901-198007

W/COOLER

main16100-61130i2F..FJ40,55..USA197901-198007

W/COOLER & OIL COOLER

16100KPUMP KIT, WATER

main04161-56030iB..BJ40197803-198007

main04161-60090iF..FJ40,55196903-197501

main04161-61010i2F..FJ40,55197501-197508

main04161-61011i2F..FJ45,55;2F..FJ40..CND197608-197901

main04161-61020i2F..FJ40..USA197608-197901

16104SEAL SET, WATER PUMP

main16104-41110i2F..FJ4#,55; B..BJ40197501-197912

main16104-41111i2F..FJ4#,55197912-198007

main16104-60080iF..FJ40,55196903-197501

16110PUMP ASSY, WATER, W/O COUPLING

main16110-56020iB..BJ40197803-198007

main16110-61070i2F..FJ40..USA197608-197901

main16110-61071i2F..FJ40,55197901-198007

main16110-61080i2F..FJ40..USA197608-197901

W/OIL COOLER

main16110-61081i2F..FJ40,55197901-198007

W/OIL COOLER

16117PLATE, WATER PUMP

main16117-56010iB..BJ40197803-198007

main16117-60010iF..FJ40,55196903-197501

main16117-61011i2F..FJ40,55197501-197508

main16117-61012i2F..FJ4#,55197508-198007

16119GASKET, WATER PUMP BODY

main16119-56010iB..BJ40197803-198007

16131ROTOR, WATER PUMP

main16131-56020iB..BJ40197803-198007

main16131-60080iF..FJ40,55196903-197501

main16131-61011i2F..FJ4#,55197501-197901

main16131-61071i2F..FJ40,55197901-198007

16131ABEARING, WATER PUMP

main90369-30005iB..BJ40197803-198007

main90369-30008iF..FJ40,55196903-197501

885141CF

main90369-30028i2F..FJ45197901-197908

WPB16112-2RS

main90369-30035i2F..FJ45197908-198007

main90369-35007i2F..FJ40,55197901-198007

16171SEAT, WATER PUMP PULLEY

main16171-38022iB..BJ40197803-198007

main16171-42010i2F..FJ40..USA197608-197901

main16171-56010i2F..FJ4#,55197501-197608

main16171-60080iF..FJ40,55196903-197501

main16171-61071i2F..FJ40,55197901-198007

16210COUPLING ASSY, FLUID

main16210-56020iB..BJ40197803-198007

main16210-61070i2F..FJ40..USA197608-197901

main16210-61071i2F..FJ40,55197901-198007

main16210-61120i2F..FJ40,55197901-198007

W/COOLER

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030×4iB..BJ40197803-198007

main90116-06200×4i2F..FJ40..USA197608-197901

16271GASKET, WATER PUMP

main16271-56012iB..BJ40197803-198007

main16271-60010iF..FJ40,55196903-197501

main16271-60011i2F..FJ4#,55197501-198007

16371PULLEY, FAN

main16173-56020iB..BJ40197803-198007

main16173-61070i2F..FJ40,55197901-198007

main16371-60070iF..FJ40,55196903-197209

main16371-60080iF..FJ40,55197209-197501

main16371-60090i2F..FJ40,55..USA197602-197608

main16371-61010i2F..FJ45197901-198007

9011908272

main90119-08272

9011908273

main90119-08273

9017906070

main90179-06070

9322016014

main93220-16014

17 parts on this diagram · 4 diagrams in section
