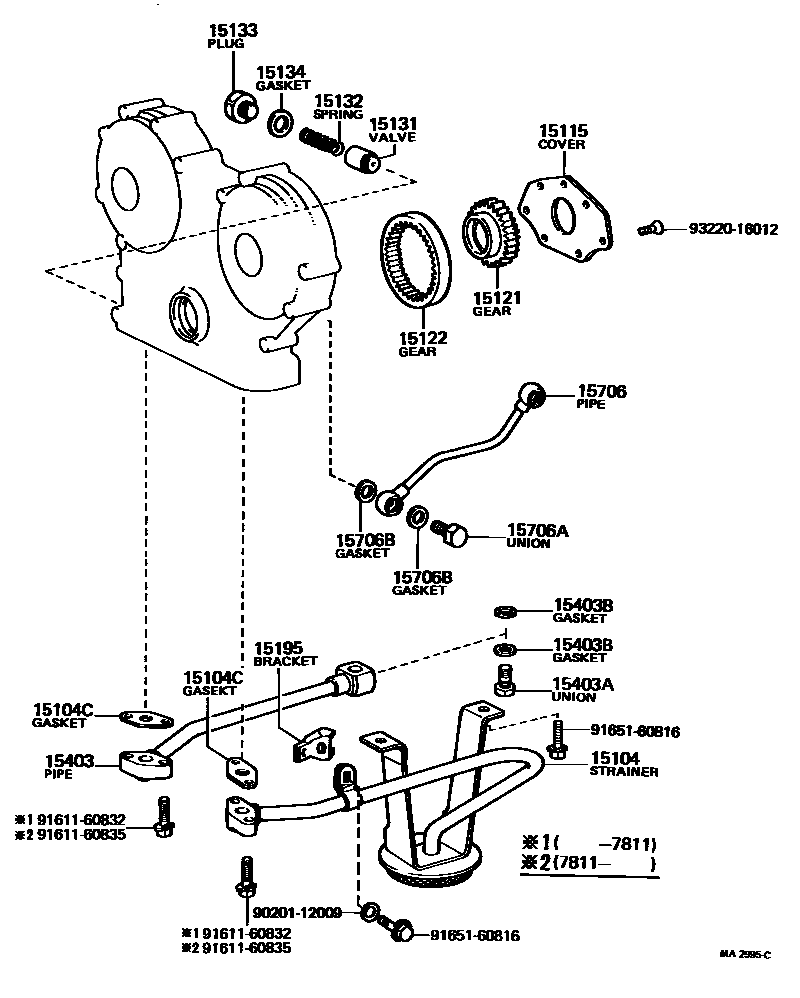

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15104STRAINER SUB-ASSY, OIL

main15104-56030iB..BJ40197803-198007

main15104-60010iF,2F..FJ40,55196903-197606

15104CGASKET(FOR OIL STRAINER)

main15422-56010×2iB..BJ40197803-198007

15115COVER, OIL PUMP

main15115-56020iB..BJ40197803-197811

main15115-56022iB..BJ40197811-198007

main15115-60012iF..FJ40,55196903-197309

15121GEAR, OIL PUMP DRIVE

main15121-38020iB..BJ40197803-197811

N=25

main15121-56022iB..BJ40197811-198007

N=25

main15121-60011iF..FJ40,55196903-197309

N=7

main15121-88111iF,2F..FJ4#,55197309-198007

N=7

15122GEAR, OIL PUMP DRIVEN

main15122-38020iB..BJ40197803-197811

N=31

main15122-56022iB..BJ40197811-198007

N=31

main15122-60010iF..FJ40,55196903-197309

N=7

main15122-79410iF,2F..FJ4#,55197309-198007

N=7

15131VALVE, OIL PUMP RELIEF

main15131-24010iB..BJ40; F,2F..FJ4#,55197309-198007

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010iF,2F..FJ4#,55197309-198007

main15132-76011iB..BJ40197803-198007

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB..BJ40197803-198007

main15133-24010iF,2F..FJ4#,55197309-198007

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iF,2F..FJ40,55197309-197606

15195BRACKET, OIL STRAINER

main15195-56010iB..BJ40197803-198007

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56030iB..BJ40197803-198007

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002iB..BJ40197803-198007

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012×2iB..BJ40197803-198007

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010iB..BJ40197803-198007

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010iB..BJ40197812-198007

main90401-10007iB..BJ40197803-197812

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026×2iB..BJ40197803-198007

9020112009

main90201-12009

9161160832

main91611-60832

9161160835

main91611-60835

9165160816

main91651-60816

9322016012

main93220-16012

21 parts on this diagram · 4 diagrams in section
