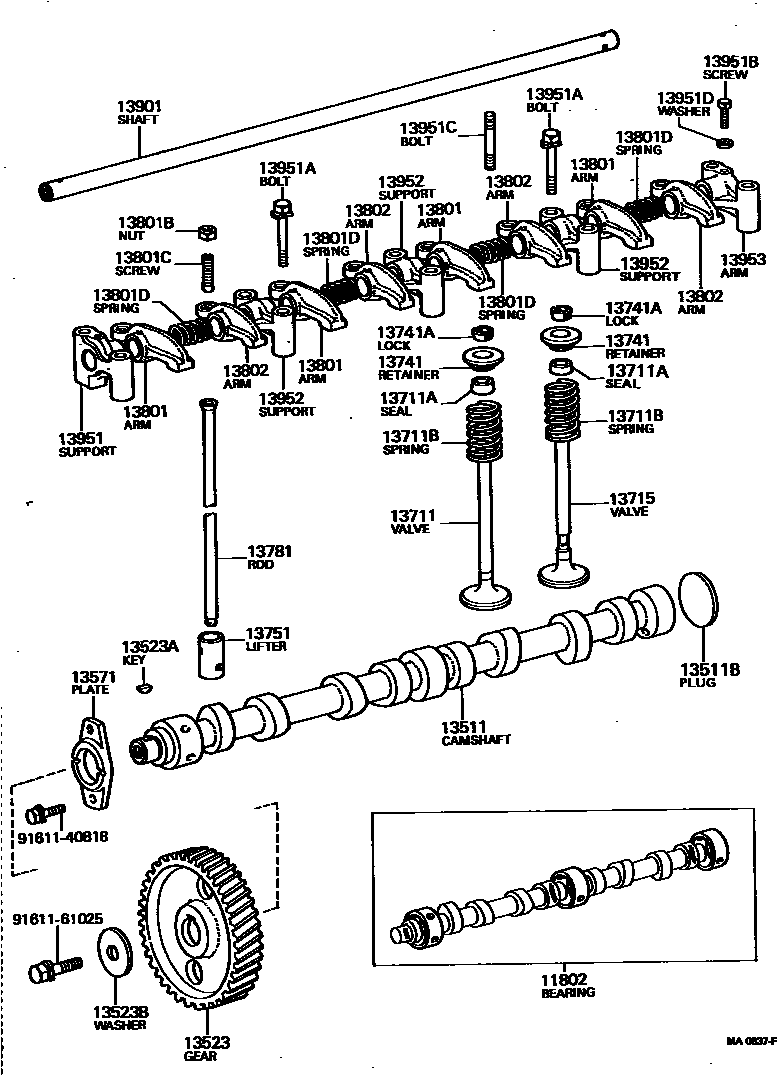

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
U/S 0.125
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
U/S 1.00
13511BPLUG, EXPANSION(FOR CAMSHAFT)
OD=48
OD=51
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=54
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13741ALOCK, VALVE SPRING RETAINER
13781ROD, VALVE PUSH
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
WD=1.6,CW=7.5
13951ABOLT(FOR ROCKER SUPPORT SET)
8-1.25PX50-30
8-1.25PX60-30
8-1.25PX50-30
8-1.25PX60-30
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13951CBOLT, STUD(FOR ROCKER SUPPORT)
L=81,S=9&26
L=84,S=9&29
13951DWASHER, SEAL(FOR HEAD COVER SET)
13953SUPPORT, VALVE ROCKER, NO.3
sub13953-56011
9161140818
main91611-40818
9161161025
main91611-61025
30 parts on this diagram · 3 diagrams in section
