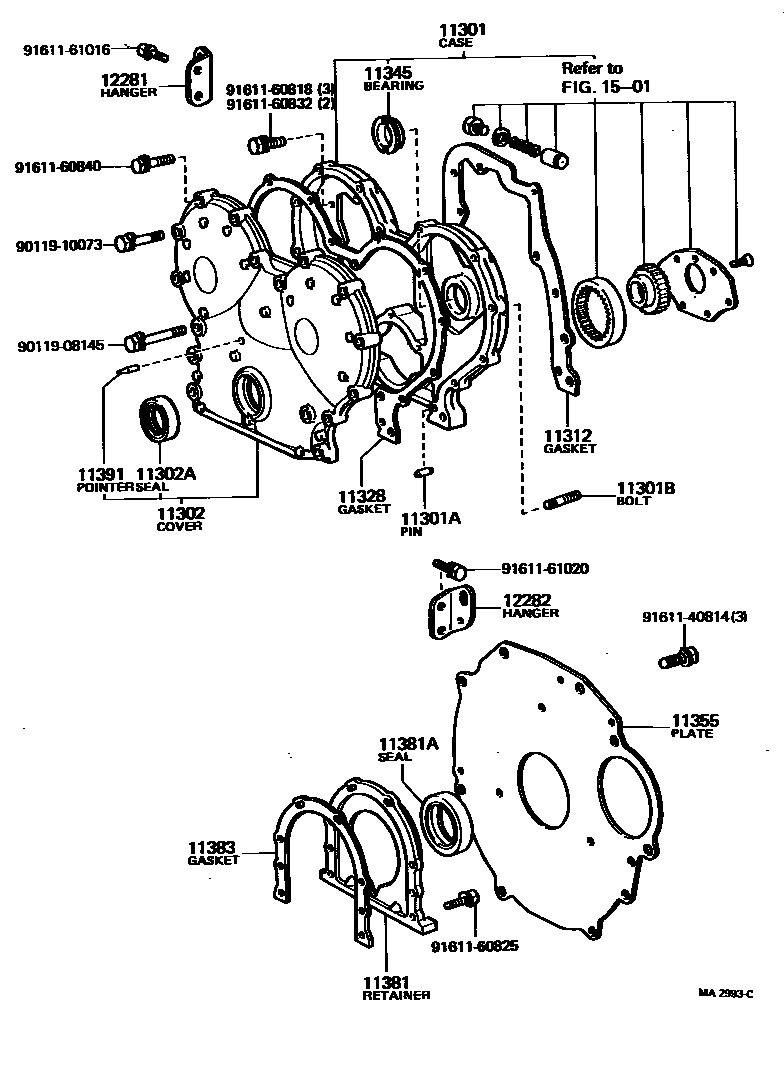

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-56020iB..BJ40197803-197811

main11301-56022iB..BJ40197811-198007

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120×2iB..BJ40197803-198007

L=18,OD=8,L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-10082×3iB..BJ40197803-198007

L=40,S=12&19

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-56020iB..BJ40197803-198007

main11302-60011iF,2F..FJ4#,55196903-197910

main11302-61020i2F..FJ4#,55197910-198007

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45069i2F..FJ4#,55197712-198007

TC3 45 68 12

main90311-45094iF,2F..FJ4#,55196903-197712

TC45 68 12X3

main90311-50002iB..BJ40197803-198007

11312GASKET, FRONT END PLATE

main11312-56020iB..BJ40197803-198007

main11312-60010iF..FJ40,55196903-197110

main11312-60011iF,2F..FJ4#,55197110-197804

main11312-61010i2F..FJ4#,55197804-198007

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-56020iB..BJ40197803-198007

main11328-60010iF,2F..FJ4#,55196903-198007

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010iB..BJ40197803-198007

11355PLATE, REAR END

main11355-56020iB..BJ40197803-198003

main11355-56040iB..BJ40198003-198007

11381RETAINER, ENGINE REAR OIL SEAL

main11381-56020iB..BJ40197803-198007

11381ASEAL, ENGINE REAR OIL

main90311-95001iB..BJ40197803-198007

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56020iB..BJ40197803-198007

11391POINTER, TIMING

main11391-56020iB..BJ40197803-198007

main11391-60010iF,2F..FJ4#,55196903-198007

12281HANGER, ENGINE, NO.1

main12281-56020iB..BJ40197803-198007

main12281-60010iF..FJ40,55196903-197203

main12281-60020iF..FJ40,55197204-197209

main12281-60030iF,2F..FJ4#,55197209-198007

main12281-61010i2F..FJ4#..CND197901-198007

FOR POWER STEERING

12282HANGER, ENGINE, NO.2

main12282-56020iB..BJ40197803-198007

main12282-60010iF,2F..FJ40,55196903-197509

main12282-61010i2F..FJ4#,55197509-198007

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9011908145

main90119-08145

9011910073

main90119-10073

9161140814

main91611-40814

9161160818

main91611-60818

9161160825

main91611-60825

9161160832

main91611-60832

9161160840

main91611-60840

9161161016

main91611-61016

9161161020

main91611-61020

25 parts on this diagram · 3 diagrams in section
