SHORT BLOCK ASSEMBLY

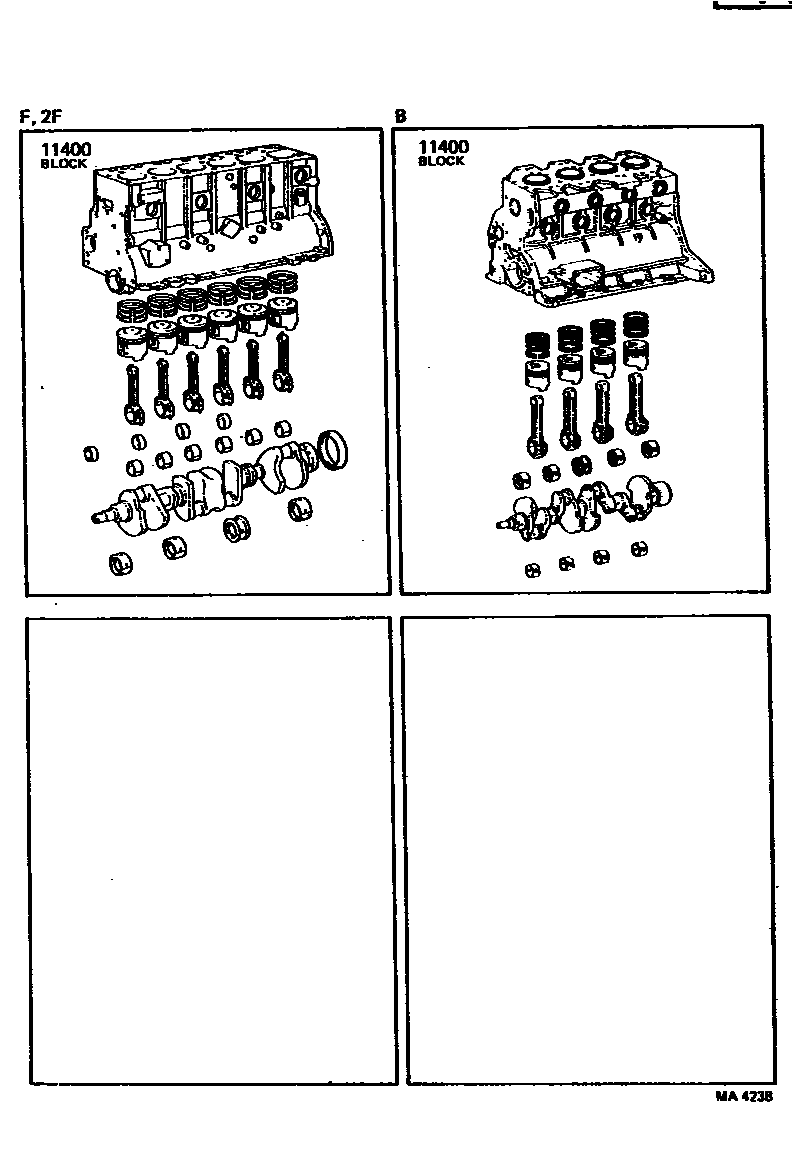

Parts diagram

11400BLOCK ASSY, SHORT

main11400-56011i197803-198007

main11400-60012i196903-196906

main11400-60013i196906-197108

main11400-60014i197109-197209

main11400-60030i197209-197309

main11400-60031i197309-197501

main11400-61011i197602-198007

main11400-61020i197501-197601

main11400-61021i197601-197602

1 parts on this diagram · 1 diagram in section
