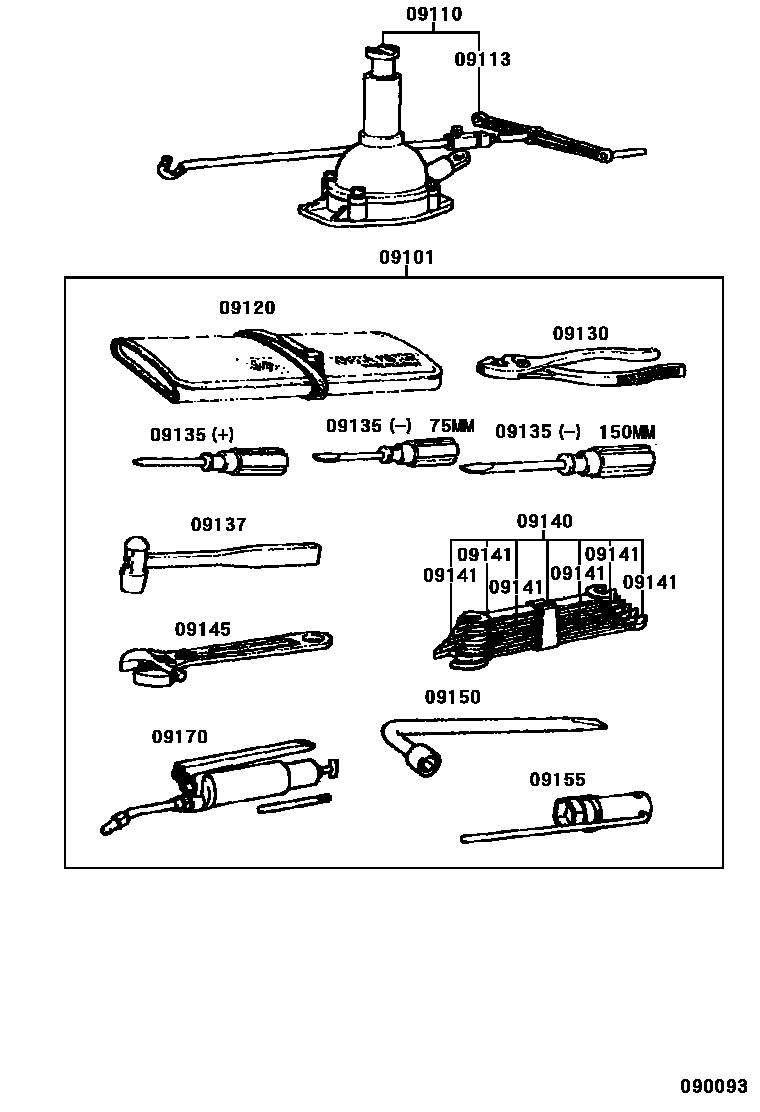

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-60020iFJ40,55196903-197203

sub09101-60050

main09101-60050iFJ4#,55197204-197901

sub09101-60110

main09101-60060iBJ40197803-197901

sub09101-60120

main09101-60110iFJ4#,55197901-198007

sub09101-60111

main09101-60120iBJ40197901-198007

sub09101-60121

09110JACK ASSY

main09110-35011iBJ40,FJ4#,55197204-197901

sub09110-60010

main09110-35050iFJ40,55196903-197203

sub09110-35110

main09110-60010iBJ40,FJ4#,55197901-198007

sub09110-60040

09113HANDLE, JACK

main09113-35011iBJ40,FJ4#,55197204-197901

sub09113-60010

main09113-35040iFJ40,55196903-197203

sub09113-25031

main09113-60010iBJ40,FJ4#,55197901-198007

sub09113-60040

09120BAG, TOOL

main09120-60010iFJ40,55196903-197203

main09120-60050iBJ40,FJ4#,55197204-198007

sub09120-60100

09130PLIERS

main09130-00020iBJ40,FJ4#,55196903-197901

sub99913-22000

main09130-00030iBJ40,FJ4#,55197901-198007

sub09130-00022

09135DRIVER, SCREW

main09135-00010iBJ40,FJ4#,55197204-198007

(+)(-)

sub99915-10700

main09135-00030iFJ40,55196903-197203

(-) 75

sub09135-11750

main09135-00060iFJ40,55196903-197203

(-) 150

sub09135-00120

main09135-00090iFJ40,55196903-197203

(+)

sub09135-12100

09137HAMMER

main09137-00010iFJ40,55196903-197203

sub09137-45320

09140SPANNER SET

main09140-00031iFJ40,55196903-196908

sub09140-00040

main09140-00040iFJ40,55196908-197203

sub09140-00050

main09140-22010iBJ40,FJ4#,55197204-197901

sub09140-00070

main09140-27010iBJ40,FJ4#,55197901-198007

09141SPANNER

main09141-00010iFJ40,55196903-196908

8X9

sub09141-00011

main09141-00011iFJ40,55196908-197203

8X10

sub09141-00110

main09141-00030iBJ40,FJ4#,55196903-197901

10X12

sub09141-00120

main09141-00032iBJ40,FJ4#,55197901-198007

10X12

sub99914-11012

main09141-00040iFJ40,55196903-197203

12X14

sub09141-12140

main09141-00050iBJ40,FJ4#,55196903-197901

14X17

sub09141-00130

main09141-00060iFJ40,55196903-196908

17X19

main09141-00080iFJ40,55196903-196908

21X23

main09141-00100iFJ40,55196908-197203

21X23

sub99914-21922

main09141-12020iBJ40,FJ4#,55197901-198007

14X17

sub99914-11417

09145WRENCH, MONKEY

main09145-00030iBJ40,FJ4#,55196903-198007

sub09145-32250

09150WRENCH, HUB NUT BOX

main09150-00021iFJ40,55196903-197203

sub09150-30011

main09150-30011iBJ40,FJ4#,55197204-197901

sub09150-40010

main09150-60010iBJ40,FJ4#,55197901-198007

09155WRENCH, SPARK PLUG

main09155-00020iFJ40,55196903-197203

sub09155-44010

main09155-36010iFJ4#,55197204-197901

sub09155-44010

main09155-44020iFJ4#,55197901-198007

09170PUMP ASSY, GREASE

main09170-00010iFJ40,55196903-197203

sub09170-00030

13 parts on this diagram · 2 diagrams in section
