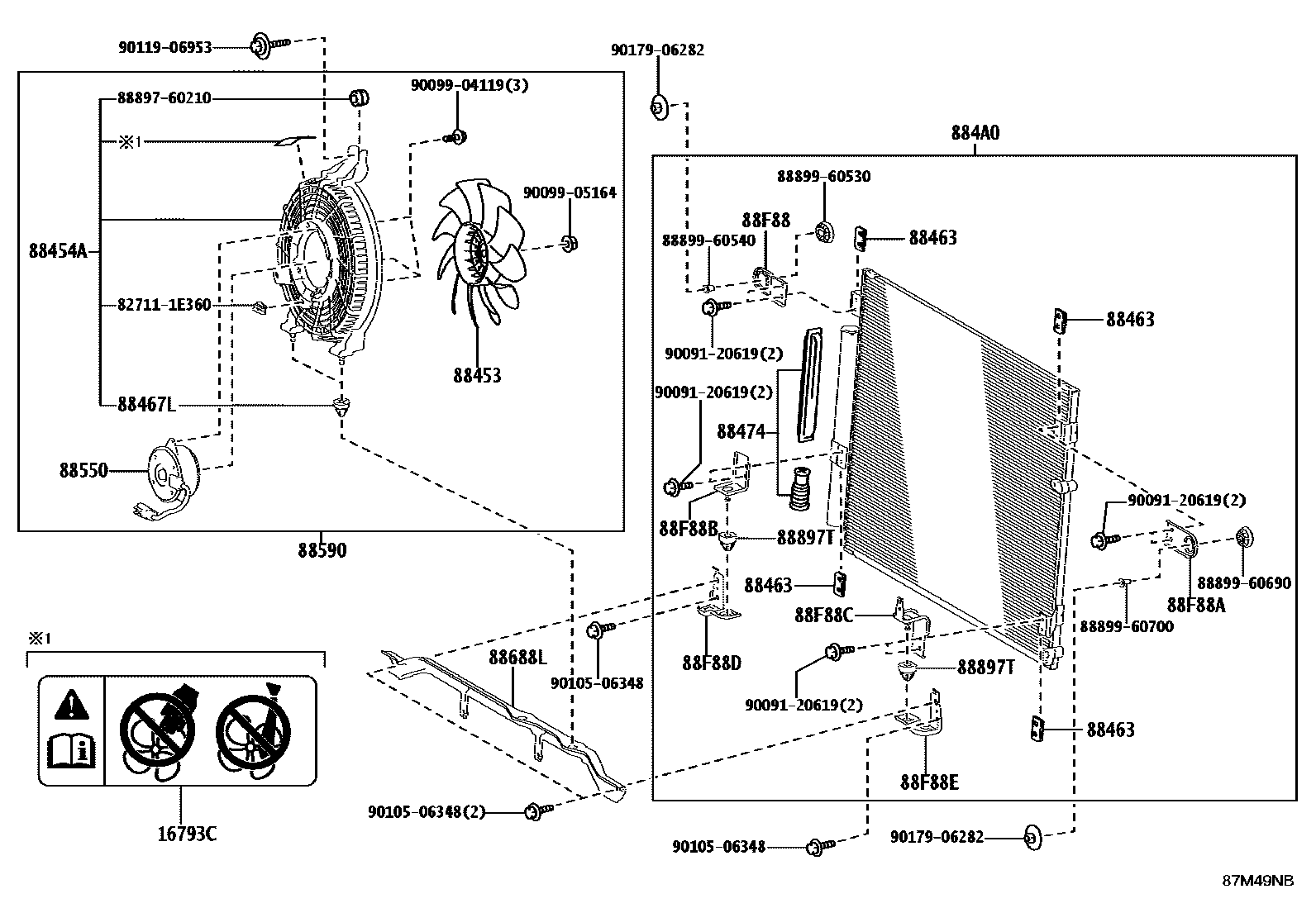

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1FRONT(DUAL) 0003 1FRONT(SINGLE) 0004 1REAR,W(REAR AIC) & W/O(COOL B0005 1REAR,W(REAR AIC & COOL BOX) 0006 1REAR,W/O(REAR AIC) & W(COOL B

16793CLABEL, COOLING FAN CAUTION

main16793-31070iV35AFTS..VJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88453FAN, COOLING (FOR CONDENSER)

main88453-26040iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88454ASHROUD, FAN

main88454-60111iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88463BRACKET, COOLER CONDENSER, NO.1

main88463-37370×4iVJA252202402

88467LCUSHION, COOLER, NO.1

main88467-60010×2iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88474DRYER, COOLER

main88474-12010iVJA252202402

884A0CONDENSER ASSY, COOLER

main884A0-60070iVJA252202402

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60130iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88590BLOWER ASSY, W/SHROUD

main88590-60111iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88688LBRACKET, CONDENSER PACKING

main88688-60J20iVJA252202402

"OVERTRAIL" PACKAGE; "OVERTRAIL+" PACKAGE

88897TGROMMET, COOLER

main88899-60550×2iVJA252202402

88F88BRACKET, CONDENSER, NO.1

main88688-60C40iVJA252202402

88F88ABRACKET, CONDENSER, NO.2

main88688-60C50iVJA252202402

88F88BBRACKET, CONDENSER, NO.3

main88688-60C60iVJA252202402

88F88CBRACKET, CONDENSER, NO.4

main88688-60C70iVJA252202402

88F88DBRACKET, CONDENSER, NO.5

main88688-60C80iVJA252202402

88F88EBRACKET, CONDENSER, NO.6

main88688-60C90iVJA252202402

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8889760210VALVE, COOLER MAGNET

main88897-60210

8889960530COVER, EVAPORATOR

main88899-60530

8889960540COVER, EVAPORATOR

main88899-60540

8889960690COVER, EVAPORATOR

main88899-60690

8889960700COVER, EVAPORATOR

main88899-60700

9009120619

main90091-20619

9009904119

main90099-04119

9009905164

main90099-05164

9010506348

main90105-06348

9011906953

main90119-06953

9017906282

main90179-06282

29 parts on this diagram · 6 diagrams in section
