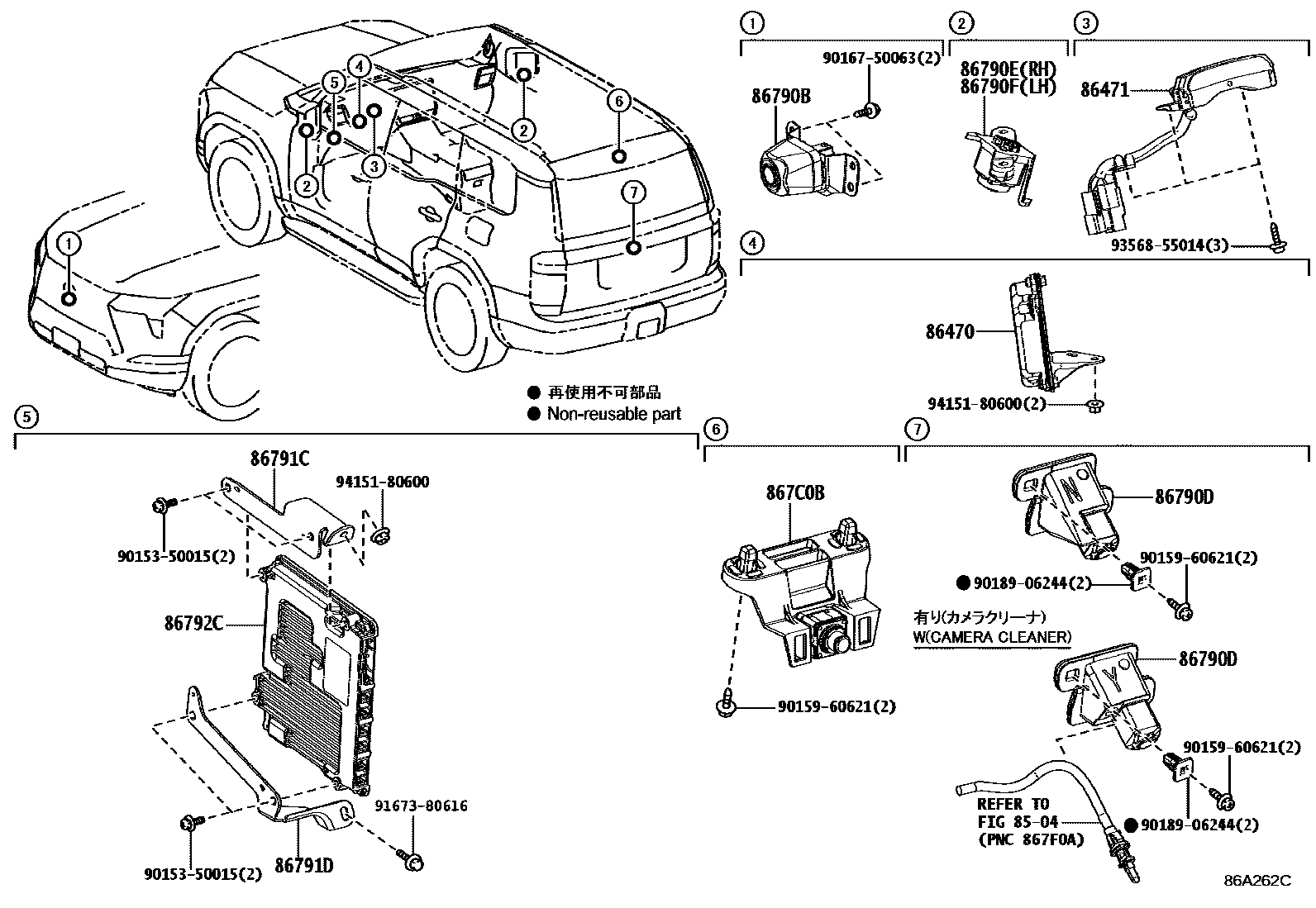

CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
86471CAMERA, DRIVER MONITOR
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
86790BCAMERA ASSY, TELEVISION, FR
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
86790DCAMERA ASSY, TELEVISION, RR
CANADA SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR
GUAM SPEC&LUXURY PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
CANADA SPEC&COLD AREA SPEC
CANADA SPEC
86790ECAMERA ASSY, TELEVISION, SIDE RH
PREMIUM+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
86790FCAMERA ASSY, TELEVISION, SIDE LH
PREMIUM+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
GUAM SPEC&LUXURY+ PACKAGE&AUDIO-21SPEAKER ML 14INCH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
"OVERTRAIL" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR
86792CCOMPUTER, PARKING ASSIST
PREMIUM+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
GUAM SPEC&LUXURY+ PACKAGE&AUDIO-21SPEAKER ML 14INCH&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
"OVERTRAIL+" PACKAGE&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR
SAIPAN SPEC&"OVERTRAIL+" PACKAGE&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR
"OVERTRAIL+" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM&PERIPHERAL MONITORCAMERA-MULTI-TELLAIN MONITOR
GUAM SPEC&"OVERTRAIL+" PACKAGE&TIRE & DISC WHEEL-265/70R18 7.5J ALUMINUM&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR
867C0BCAMERA ASSY, INNER MIRROR, RR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & *GDO
9015350015
main90153-50015
9015960621
main90159-60621
9016750063
main90167-50063
9018906244
main90189-06244
9356855014
main93568-55014
9415180600
main94151-80600
17 parts on this diagram · 1 diagram in section
