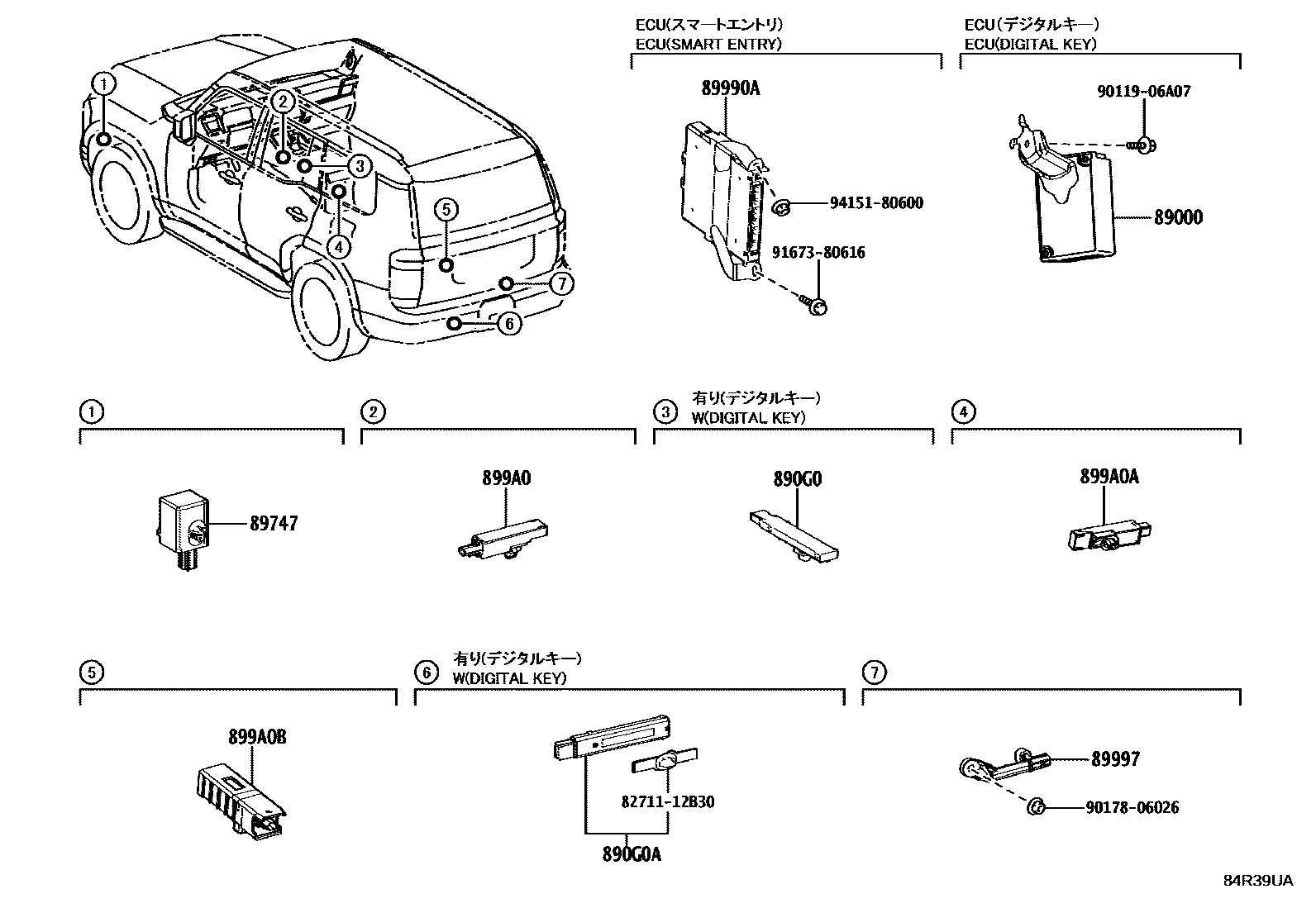

WIRELESS DOOR LOCK
89000COMPUTER ASSY, DIGITAL KEY
DIGITAL KEY-WITH
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
DIGITAL KEY-WITH
890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2
DIGITAL KEY-WITH
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
"OVERTRAIL+" PACKAGE; LUXURY PACKAGE; LUXURY+ PACKAGE; PREMIUM+ PACKAGE
"OVERTRAIL+" PACKAGE; LUXURY PACKAGE; LUXURY+ PACKAGE; PREMIUM+ PACKAGE
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
9011906A07
main90119-06A07
9017806026
main90178-06026
9167380616
main91673-80616
9415180600
main94151-80600
14 parts on this diagram · 2 diagrams in section
