WIRING & CLAMP

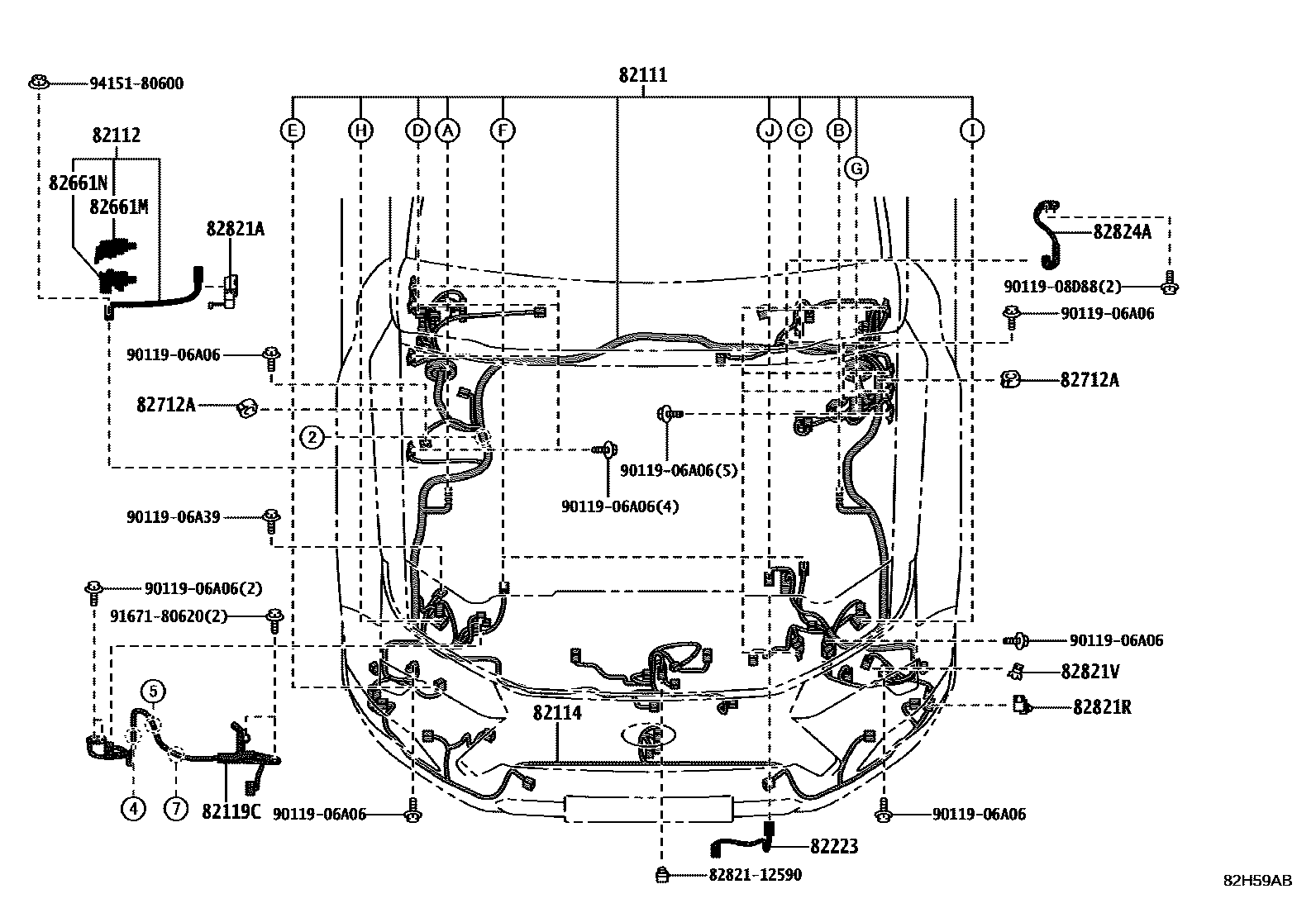

82111WIRE, ENGINE ROOM MAIN
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT); COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS)
COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT)
LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT); LANE KEEPING SYSTEM-WITH(TOUCH & EDSS)
GUAM SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS); LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT); PUERTO RICO SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS); SAIPAN SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS)
"OVERTRAIL" PACKAGE&COLD AREA SPEC; "OVERTRAIL+" PACKAGE&COLD AREA SPEC
"OVERTRAIL" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT); "OVERTRAIL+" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS & L2PT); GUAM SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS); GUAM SPEC&"OVERTRAIL+" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS); PUERTO RICO SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH& EDSS); PUERTO RICO SPEC&"OVERTRAIL+" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS); SAIPAN SPEC&"OVERTRAIL" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS); SAIPAN SPEC&"OVERTRAIL+" PACKAGE&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH(TOUCH & EDSS)
82112WIRE, ENGINE ROOM, NO.2
82114WIRE, ENGINE ROOM, NO.4
"OVERTRAIL" PACKAGE
"OVERTRAIL" PACKAGE&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR; "OVERTRAIL+" PACKAGE&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR; LUXURY PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); LUXURY+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); PREMIUM+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
CANADA SPEC
CANADA SPEC&"OVERTRAIL" PACKAGE
CANADA SPEC&"OVERTRAIL" PACKAGE&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR; CANADA SPEC&"OVERTRAIL+" PACKAGE&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR; CANADA SPEC&LUXURY PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); CANADA SPEC&LUXURY+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); CANADA SPEC&PREMIUM+ PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
82119CWIRE, ENGINE ROOM, NO.5
82223WIRE, SWITCH
82661MCOVER, RELAY BLOCK, NO.3
82661NCOVER, RELAY BLOCK, NO.4
82712ASUPPORT, WIRING HARNESS
82821ACOVER, CONNECTOR
82821RCOVER, CONNECTOR
82821VCOVER, CONNECTOR
82824CONNECTOR, WIRING HARNESS
82824ACONNECTOR, WIRING HARNESS
8282112590RETAINER, HEADLAMP HARNESS
main82821-12590
9011906A06
main90119-06A06
9011906A39
main90119-06A39
9011908D88
main90119-08D88
9167180620
main91671-80620
9415180600
main94151-80600
19 parts on this diagram · 11 diagrams in section
