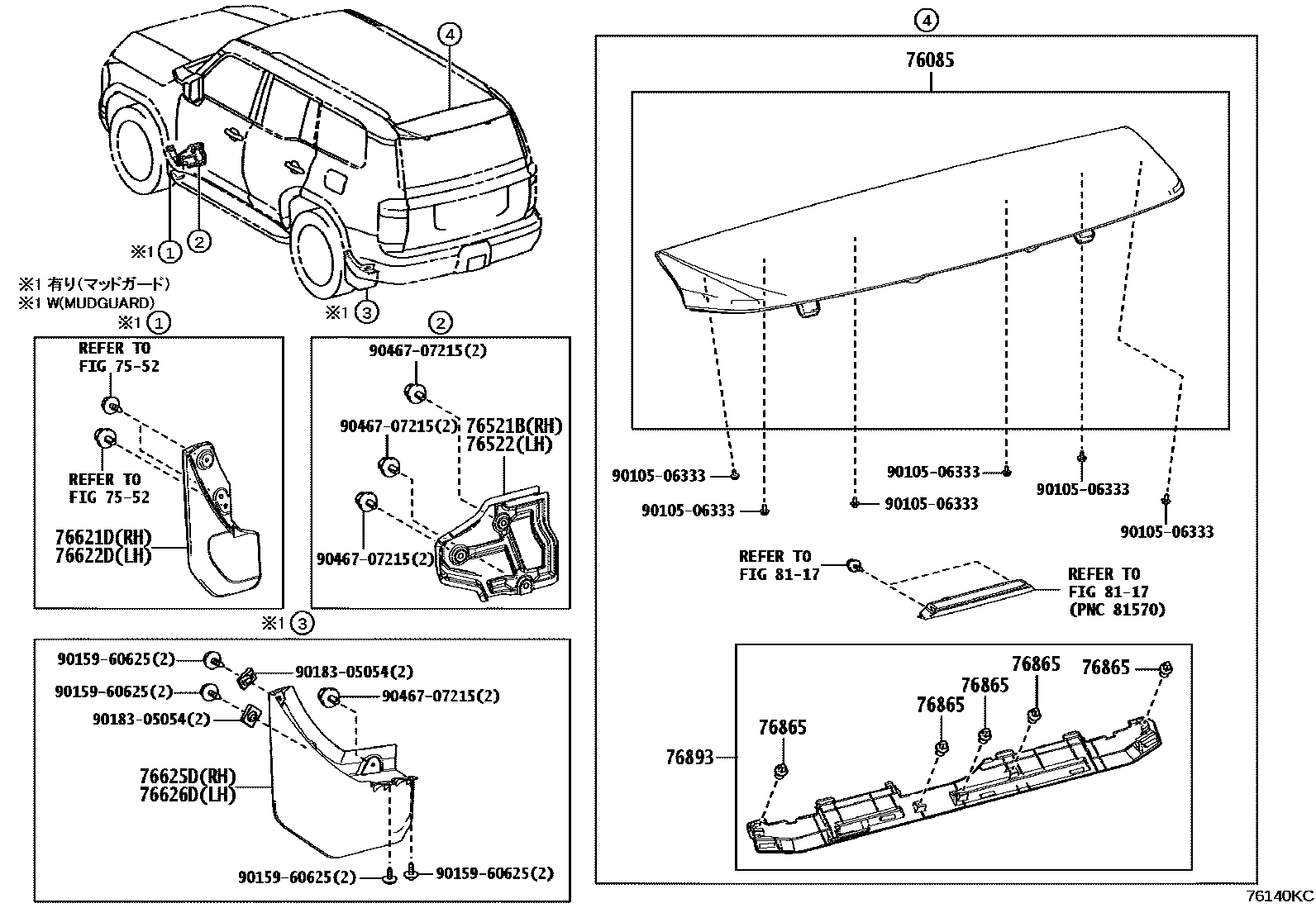

SPOILER & SIDE MUDGUARD

7552MOULDING

→ Go to FIG 75-52

76085SPOILER SUB-ASSY, REAR

main76085-60906-C0iVJA252202402

DK.GRAY,085 ,1H9 ,1J7 ,1L8 ,223 ,6X4 ,8X5 ,M06 ,M07 ,M08 ,M09

76521BPROTECTOR, FRONT FENDER GARNISH, RH

main76521-60010iVJA252202402

76522PROTECTOR, FRONT FENDER GARNISH, LH

main76522-60010iVJA252202402

76621DMUDGUARD, FRONT FENDER, RH

main76621-60280iVJA252202402

CANADA SPEC

76622DMUDGUARD, FRONT FENDER, LH

main76622-60230iVJA252202402

CANADA SPEC

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-60440iVJA252202402

CANADA SPEC

main76625-60450iVJA252202402

CANADA SPEC&"OVERTRAIL" PACKAGE; CANADA SPEC&"OVERTRAIL+" PACKAGE

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-60440iVJA252202402

CANADA SPEC

main76626-60450iVJA252202402

CANADA SPEC&"OVERTRAIL" PACKAGE; CANADA SPEC&"OVERTRAIL+" PACKAGE

76865RETAINER, REAR SPOILER, NO.1

main76865-35030×5iVJA252202402

76893COVER, REAR SPOILER, NO.1

main76893-60060iVJA252202402

8117CENTER STOP LAMP

→ Go to FIG 81-17

9010506333

main90105-06333

9015960625

main90159-60625

9018305054

main90183-05054

9046707215

main90467-07215

15 parts on this diagram · 1 diagram in section
