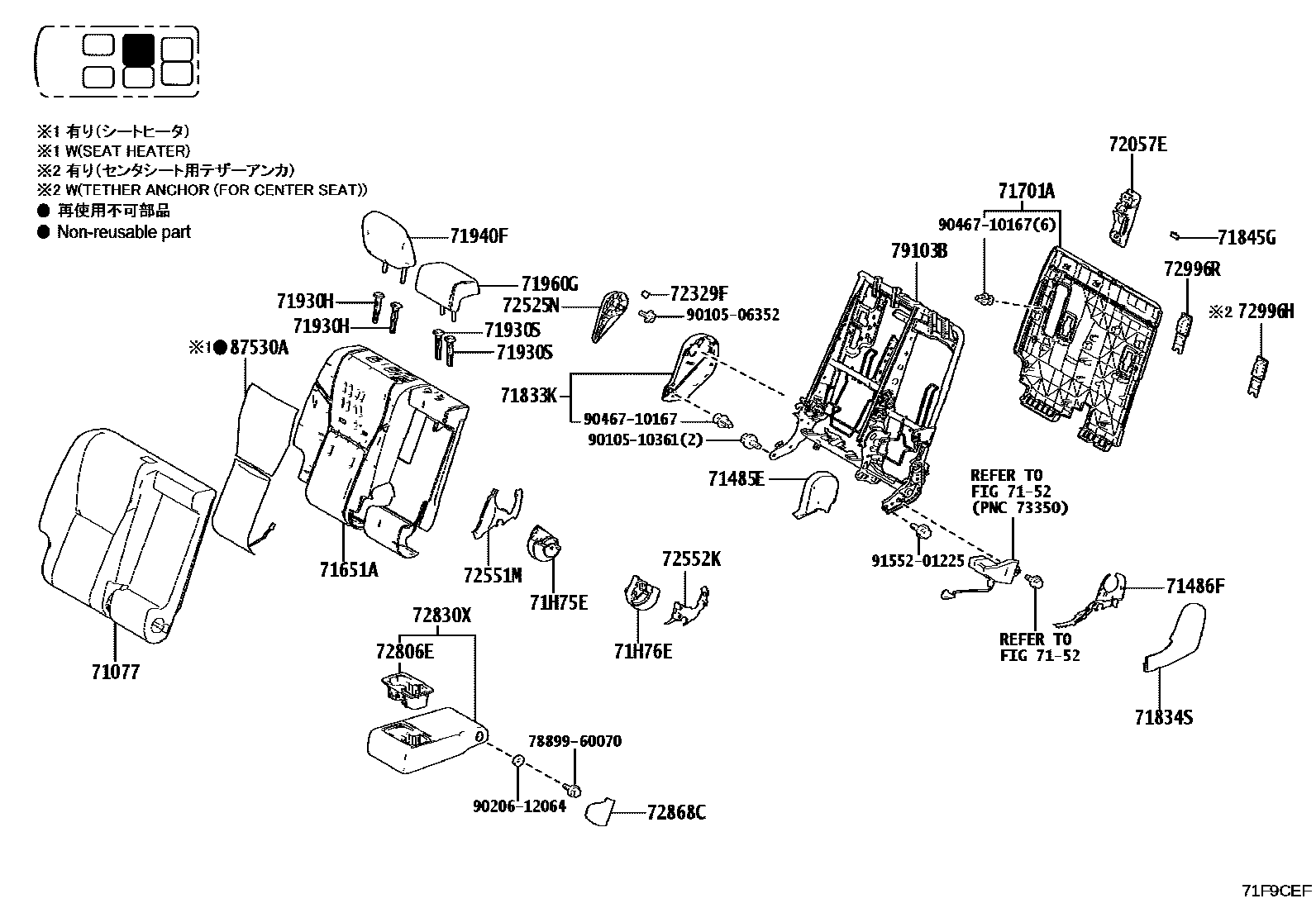

REAR SEAT & SEAT TRACK

71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-60Z10-B3supersedes 71077-60Y91-B3i202402-202411

PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z10-C3supersedes 71077-60Y91-C3i202402-202411

PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z10-E3supersedes 71077-60Y91-E3i202402-202411

PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z11-B3supersedes 71077-60Y91-B3i202411

PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z11-C3supersedes 71077-60Y91-C3i202411

PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z11-E3supersedes 71077-60Y91-E3i202411

PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z30-B3supersedes 71077-60Y91-B3i202402-202411

LUXURY PACKAGE,DK.GRAY,TRIM1#; LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z30-C3supersedes 71077-60Y91-C3i202402-202411

LUXURY PACKAGE,BLACK,TRIM2#; LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z30-E3supersedes 71077-60Y91-E3i202402-202411

LUXURY PACKAGE,SADDLE TAN,TRIM4#; LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z31-B3supersedes 71077-60Y91-B3i202411

LUXURY PACKAGE,DK.GRAY,TRIM1#; LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z31-C3supersedes 71077-60Y91-C3i202411

LUXURY PACKAGE,BLACK,TRIM2#; LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z31-E3supersedes 71077-60Y91-E3i202411

LUXURY PACKAGE,SADDLE TAN,TRIM4#; LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z50-B4supersedes 71077-60Y91-B3i202402-202411

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z50-C4supersedes 71077-60Y91-C3i202402-202411

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z51-B4supersedes 71077-60Y91-B3i202411

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71077-60Z51-C4supersedes 71077-60Y91-C3i202411

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71077-60Z70-B5supersedes 71077-60Y91-B3i202402-202411

"OVERTRAIL+" PACKAGE,CHATEAU,TRIM1#

main71077-60Z70-C5supersedes 71077-60Y91-C3i202402-202411

"OVERTRAIL+" PACKAGE,BLACK,TRIM2#

main71077-60Z71-B5supersedes 71077-60Y91-B3i202411

"OVERTRAIL+" PACKAGE,CHATEAU,TRIM1#

main71077-60Z71-C5supersedes 71077-60Y91-C3i202411

"OVERTRAIL+" PACKAGE,BLACK,TRIM2#

main71077-60Z80-B3supersedes 71077-60Y91-B3i202402

US CAPTAIN SEAT&PREMIUM+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z80-C3supersedes 71077-60Y91-C3i202402

US CAPTAIN SEAT&PREMIUM+ PACKAGE,BLACK,TRIM2#

main71077-60Z80-E3supersedes 71077-60Y91-E3i202402

US CAPTAIN SEAT&PREMIUM+ PACKAGE,SADDLE TAN,TRIM4#

main71077-60Z90-B3supersedes 71077-60Y91-B3i202402

US CAPTAIN SEAT&LUXURY PACKAGE,DK.GRAY,TRIM1#; US CAPTAIN SEAT&LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71077-60Z90-C3supersedes 71077-60Y91-C3i202402

US CAPTAIN SEAT&LUXURY PACKAGE,BLACK,TRIM2#; US CAPTAIN SEAT&LUXURY+ PACKAGE,BLACK,TRIM2#

main71077-60Z90-E3supersedes 71077-60Y91-E3i202402

US CAPTAIN SEAT&LUXURY PACKAGE,SADDLE TAN,TRIM4#; US CAPTAIN SEAT&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

71485ECOVER, REAR SEAT HINGE

main71485-60130-C0i202402

BLACK,TRIM1#,2#,4#

71486FCOVER, REAR SEAT HINGE, LH

main71486-60110-C0i202402

BLACK,TRIM1#,2#,4#

7152SEAT BELT

→ Go to FIG 71-52

71651APAD, REAR NO.1 SEATBACK, RH

main71507-60350supersedes 71651-60750i202402

LUXURY PACKAGE; LUXURY+ PACKAGE

main71507-60410supersedes 71651-60750i202402

US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE

main71651-60760supersedes 71651-60750i202402

US CAPTAIN SEAT&PREMIUM+ PACKAGE

71701ABOARD SUB-ASSY, REAR SEATBACK, RH

main71701-60360supersedes 71701-60350i202402

US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE; US CAPTAIN SEAT&PREMIUM+ PACKAGE

71833KCOVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

main71833-60360-C0i202402

BLACK,TRIM1#,2#,4#

71834SCOVER, REAR SEAT RECLINING, NO.1 LH

main71834-60370-C0supersedes 71834-60360-C0i202402

US CAPTAIN SEAT&LUXURY PACKAGE,BLACK,TRIM1#,2#,4#; US CAPTAIN SEAT&LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#; US CAPTAIN SEAT&PREMIUM+ PACKAGE,BLACK,TRIM1#,2#,4#

71845GCAP, REAR SEAT COVER, RH

main71845-60040-C0i202402

BLACK,TRIM1#,2#,4#

71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH

main71930-28050-C0i202402

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-28060-C0i202402

W/O(LOCK),BLACK,TRIM1#,2#,4#

71930SSUPPORT ASSY, REAR NO.1 SEAT HEADREST, CENTER

main71930-28050-C0×2i202402

W(LOCK),BLACK,TRIM1#,2#,4#

71940FHEADREST ASSY, NO.1 SEAT, RH

main71940-60D50-B2i202402

DK.GRAY,TRIM1#

main71940-60D50-C2i202402

BLACK,TRIM2#

main71940-60D40-B3i202402

"OVERTRAIL" PACKAGE,DK.GRAY,TRIM10,11; "OVERTRAIL+" PACKAGE,DK.GRAY,TRIM10,11; LUXURY PACKAGE,DK.GRAY,TRIM10,11; LUXURY+ PACKAGE,DK.GRAY,TRIM10,11; US CAPTAIN SEAT&LUXURY PACKAGE,DK.GRAY,TRIM10,11; US CAPTAIN SEAT&LUXURY+ PACKAGE,DK.GRAY,TRIM10,11

main71940-60D40-B4i202402

"OVERTRAIL" PACKAGE,CHATEAU,TRIM12,13; "OVERTRAIL+" PACKAGE,CHATEAU,TRIM12,13; LUXURY PACKAGE,CHATEAU,TRIM12,13; LUXURY+ PACKAGE,CHATEAU,TRIM12,13; US CAPTAIN SEAT&LUXURY PACKAGE,CHATEAU,TRIM12,13; US CAPTAIN SEAT&LUXURY+ PACKAGE,CHATEAU,TRIM12,13

main71940-60D40-C3i202402

"OVERTRAIL" PACKAGE,BLACK/OLIVE,TRIM20,21; "OVERTRAIL+" PACKAGE,BLACK/OLIVE,TRIM20,21; LUXURY PACKAGE,BLACK/OLIVE,TRIM20,21; LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21; US CAPTAIN SEAT&LUXURY PACKAGE,BLACK/OLIVE,TRIM20,21; US CAPTAIN SEAT&LUXURY+ PACKAGE,BLACK/OLIVE,TRIM20,21

main71940-60D40-C4i202402

"OVERTRAIL" PACKAGE,BLACK/LT.GRAY,TRIM20,21; "OVERTRAIL+" PACKAGE,BLACK/LT.GRAY,TRIM20,21; LUXURY PACKAGE,BLACK/LT.GRAY,TRIM20,21; LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21; US CAPTAIN SEAT&LUXURY PACKAGE,BLACK/LT.GRAY,TRIM20,21; US CAPTAIN SEAT&LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71940-60D40-E1supersedes 71940-60D50-E1i202402

"OVERTRAIL" PACKAGE,SADDLE TAN,TRIM4#; "OVERTRAIL+" PACKAGE,SADDLE TAN,TRIM4#; LUXURY PACKAGE,SADDLE TAN,TRIM4#; LUXURY+ PACKAGE,SADDLE TAN,TRIM4#; US CAPTAIN SEAT&LUXURY PACKAGE,SADDLE TAN,TRIM4#; US CAPTAIN SEAT&LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

71960GHEADREST ASSY, REAR NO.1 SEAT, CENTER

main71960-60A30-C0i202402-202411

BLACK,TRIM1#,2#,4#

main71960-60A31-C1i202411

BLACK,TRIM1#,2#,4#

71H75ECOVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)

main71875-60310i202402

71H76ECOVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)

main71876-60390supersedes 71876-60380i202402

US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE; US CAPTAIN SEAT&PREMIUM+ PACKAGE

72057ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72057-60230-C0i202402

BLACK,TRIM1#,2#,4#

72329FCOVER, REAR SEAT ADJUSTER BOLT

main72329-60140-C0i202402

BLACK,TRIM1#,2#,4#

72525NHANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

main72525-60160-C0i202402

BLACK,TRIM1#,2#,4#

72551MCOVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)

main72551-60190-C0i202402

BLACK,TRIM1#,2#,4#

72552KCOVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)

main72552-60180-C0supersedes 72552-60170-C0i202402

US CAPTAIN SEAT&LUXURY PACKAGE,BLACK,TRIM1#,2#,4#; US CAPTAIN SEAT&LUXURY+ PACKAGE,BLACK,TRIM1#,2#,4#; US CAPTAIN SEAT&PREMIUM+ PACKAGE,BLACK,TRIM1#,2#,4#

72806EHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-78010-C0i202402

BLACK,TRIM1#,2#,4#

72830XARMREST ASSY, REAR SEAT, CENTER

main72830-60G30-C1i202402

BLACK/OLIVE,TRIM12,13,20,21

main72830-60G30-C2i202402

BLACK/LT.GRAY,TRIM10,11,20,21

main72830-60G40-C1i202402

LUXURY PACKAGE,BLACK/LT.GRAY,TRIM1#,2#; LUXURY+ PACKAGE,BLACK/LT.GRAY,TRIM1#,2#

main72830-60G40-C2supersedes 72830-60G30-C3i202402

LUXURY PACKAGE,BLACK/BROWN,TRIM4#; LUXURY+ PACKAGE,BLACK/BROWN,TRIM4#

72868CCOVER, CENTER ARMREST HINGE, RH

main72868-60030-C0i202402

BLACK,TRIM1#,2#,4#

72996HCOVER, REAR SEATBACK

main72996-60290-C0i202402

BLACK,TRIM1#,2#,4#

72996RCOVER, REAR NO.1 SEATBACK, RH

main72996-60280-C0i202402

BLACK,TRIM1#,2#,4#

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main71017-60B80supersedes 71017-60B70i202402

US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE; US CAPTAIN SEAT&PREMIUM+ PACKAGE

87530HEATER ASSY, REAR NO.1 SEATBACK, LH

main87530-60090i202402

"OVERTRAIL+" PACKAGE; LUXURY PACKAGE; LUXURY+ PACKAGE; PREMIUM+ PACKAGE; US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE; US CAPTAIN SEAT&PREMIUM+ PACKAGE

87530AHEATER ASSY, REAR NO.1 SEATBACK, RH

main87530-60090i202402

"OVERTRAIL+" PACKAGE; LUXURY PACKAGE; LUXURY+ PACKAGE; PREMIUM+ PACKAGE; US CAPTAIN SEAT&LUXURY PACKAGE; US CAPTAIN SEAT&LUXURY+ PACKAGE; US CAPTAIN SEAT&PREMIUM+ PACKAGE

7889960070BOLT, FRONT SEAT

main78899-60070

9010506352

main90105-06352

9010510361

main90105-10361

9020612064

main90206-12064

9046710167

main90467-10167

9155201225

main91552-01225

34 parts on this diagram · 14 diagrams in section
