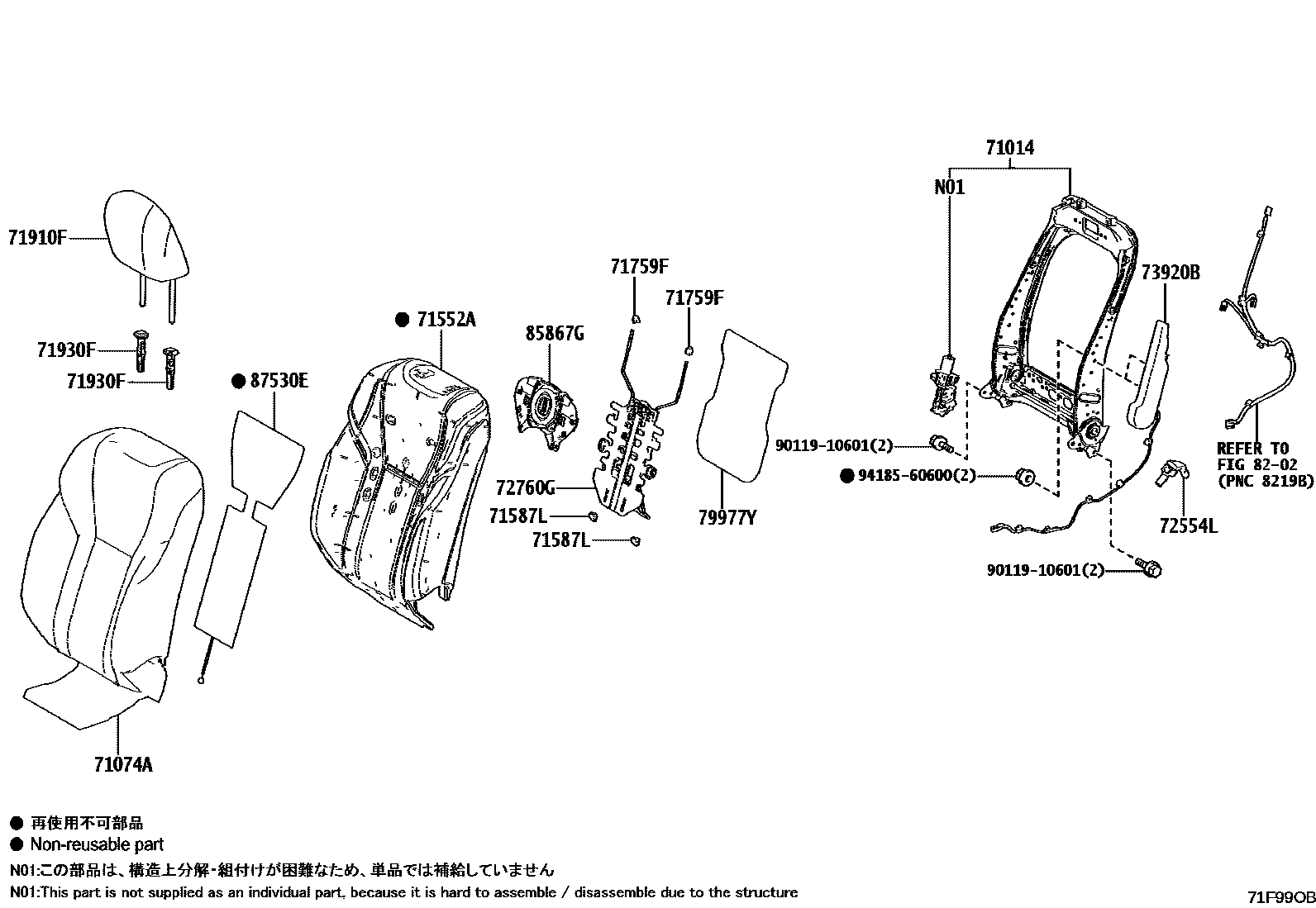

FRONT SEAT & SEAT TRACK

0001 1LH(SEAT BACK) 0002 1LH(SEAT BACK), W(REFRESH SEAT0003 1LH(SEAT CUSHION) 0004 1LH(SEAT CUSHION), W(REFRESH S0005 1RH(SEAT BACK) 0006 1RH(SEAT BACK), W(REFRESH SEAT0007 1RH(SEAT CUSHION) 0008 1RH(SEAT CUSHION), W(REFRESH S

71014FRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-60A30supersedes 71014-60A10iVJA252202411

LUXURY PACKAGE&SEAT VIBRATOR-WITH

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-60U20-B3supersedes 71074-60U00-B2iVJA252202402

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71074-60U20-C3supersedes 71074-60U00-C2iVJA252202402

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

main71074-60U40-B3supersedes 71074-60U00-B2iVJA252202411

"OVERTRAIL+" PACKAGE&SEAT VIBRATOR-WITH,CHATEAU,TRIM1#

main71074-60U40-C3supersedes 71074-60U00-C2iVJA252202411

"OVERTRAIL+" PACKAGE&SEAT VIBRATOR-WITH,BLACK,TRIM2#

main71074-60U60-B2supersedes 71074-60U00-B2iVJA252202402-202411

LUXURY+ PACKAGE,DK.GRAY,TRIM1#

main71074-60U60-C2supersedes 71074-60U00-C2iVJA252202411

LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,BLACK,TRIM2#

main71074-60U60-E2supersedes 71074-60U00-E2iVJA252202402-202411

LUXURY+ PACKAGE,SADDLE TAN,TRIM4#

71552APAD, FRONT SEATBACK, LH

main71506-60620supersedes 71552-60A20iVJA252202402

"OVERTRAIL" PACKAGE

71587LPROTECTOR, FRONT SEATBACK EDGE, LH

main71587-47010×2iVJA252202402

71759FHOOK, FRONT SEATBACK, LH

main71759-50040×2iVJA252202402

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-60J90-B1iVJA252202402-202411

LUXURY PACKAGE,DK.GRAY,TRIM10,11

main71910-60J90-B2iVJA252202411

"OVERTRAIL+" PACKAGE&SEAT VIBRATOR-WITH,CHATEAU,TRIM12,13

main71910-60J90-C3iVJA252202411

LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,BLACK/OLIVE,TRIM20,21

main71910-60J90-C4iVJA252202402-202411

"OVERTRAIL+" PACKAGE,BLACK/LT.GRAY,TRIM20,21

main71910-60J90-E1supersedes 71910-60J80-E1iVJA252202411

LUXURY+ PACKAGE&SEAT VIBRATOR-WITH,SADDLE TAN,TRIM4#

main71910-60K40-B1supersedes 71910-60J80-B1iVJA252202402

"OVERTRAIL" PACKAGE,CHATEAU,TRIM1#

main71910-60K40-C1supersedes 71910-60J80-C3iVJA252202402

"OVERTRAIL" PACKAGE,BLACK,TRIM2#

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-28050-C0iVJA252202402

W(LOCK),BLACK,TRIM1#,2#,4#

main71931-28060-C0iVJA252202402

W/O(LOCK),BLACK,TRIM1#,2#,4#

72554LPROTECTOR, RECLINING COVER, LH

main72554-60020iVJA252202402

72760GADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-60140supersedes 72750-33150iVJA252202411

LUXURY PACKAGE&SEAT VIBRATOR-WITH

73920BAIRBAG ASSY, FRONT SEAT, LH

main73920-60090iVJA252202402

79977YFELT, SEATBACK, LH

main79977-76010iVJA252202402

8202

85867GBLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-60050supersedes 85867-60080iVJA252202402-202411

LUXURY+ PACKAGE

87530EHEATER ASSY, FRONT SEATBACK, LH

main87530-60050iVJA252202402

9011910601

main90119-10601

9418560600

main94185-60600

16 parts on this diagram · 8 diagrams in section
