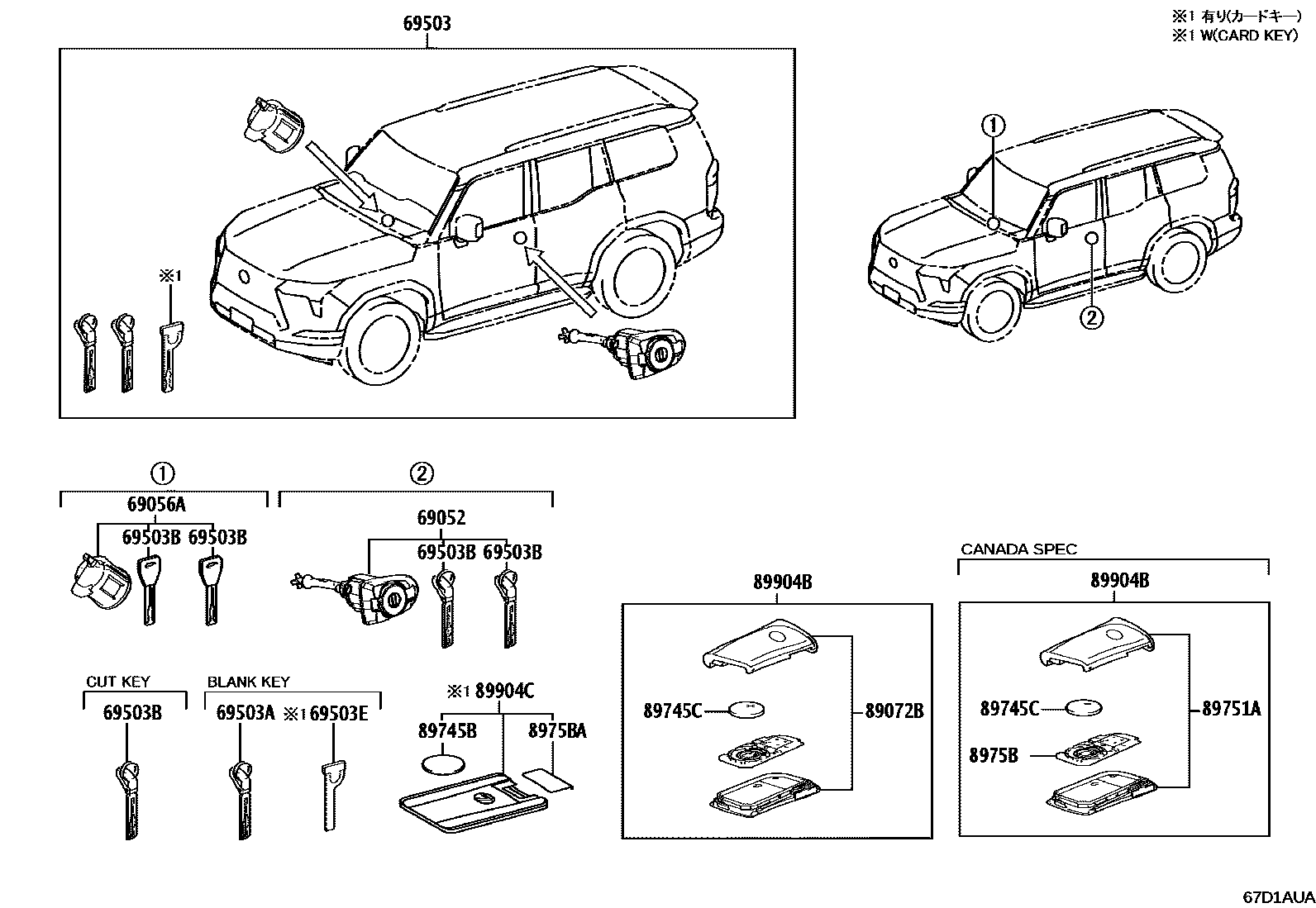

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-60510iVJA252202402

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iVJA252202402

69503CYLINDER SET, LOCK

main69005-60R30supersedes 69005-60Q90iVJA252202402

KEY PLATE-SMART KEY & CARD KEY

69503AKEY, BLANK

main69515-33150iVJA252202402

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33140×2iVJA252202402

MASTER KEY,W(*68)

main69515-50250×2iVJA252202402

MASTER KEY

69503EKEY, BLANK(CARD KEY)

main69515-12350iVJA252202402

BLANK KEY,KEY PLATE-SMART KEY & CARD KEY

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-78370×2iVJA252202402

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iVJA252202402

CR2412,KEY PLATE-SMART KEY & CARD KEY

89745CBATTERY, TRANSMITTER

main89745-50020iVJA252202402

CR2032

89751ACOVER, TRANSMITTER HOUSING

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-50030

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iVJA252202402

KEY PLATE-SMART KEY & CARD KEY

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-48140iVJA252202402-202410

TYPE A

main8990H-48141iVJA252202411

TYPE A

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-78491iVJA252202402-202410

KEY PLATE-SMART KEY & CARD KEY

main8990H-78492iVJA252202411

KEY PLATE-SMART KEY & CARD KEY

14 parts on this diagram · 1 diagram in section
